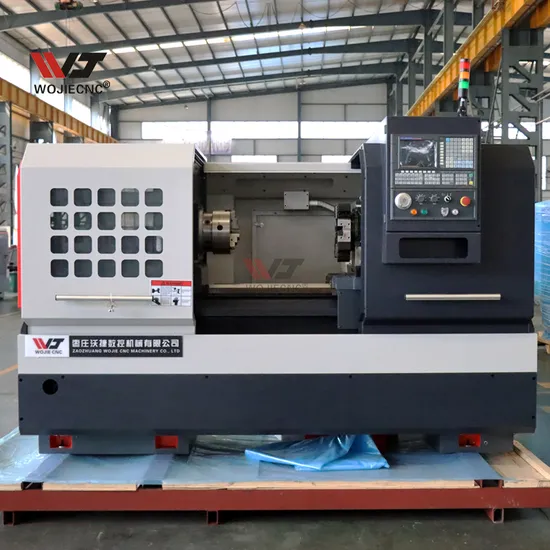

Professional Manufacturer High-Precision Ck6140 CNC Lathe

Professional Manufacturer High-Precision Ck6140 CNC Lathe

US$12,000.00
1-2 Pieces
US$10,000.00
3+ Pieces

Basic Info.

Model NO.
CK6140
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Joint Drive
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Maximum Swing Diameter Over Bed
400mm
Maximum Machining Length
1000/1500/2000
CNC System
GSK Siemens Fanuc Syntec
Turret
4 Station Turret
X Travel
230
Z Travel
1000/1500/2000
Spindle Taper
Mt6
Main Motor
4kw
Spindle Nose
C6
Transport Package
Plywood Package
Specification
2500*1650*1700mm
Trademark
WOJIE
Origin
Shandong
Production Capacity
500/Year

Packaging & Delivery

Package Size
260.00cm * 180.00cm * 1180.00cm
Package Gross Weight
1900.000kg

Product Description

Product Description
Product Parameters
SPECIFICATIONS Units CK6140 CK6150 CK6160
Swing over bed mm 400 500 600
Maximum swing over cross slide mm 210 260 300
Distance between centers mm 1000/1500/2000
Spindle bore mm 52mm(opt 8) 52mm(opt 8) 52mm(opt 8)
Spindle speed range rpm L:100-500H:500-1800
Tailstock travel mm 130 130 130
Tailstock quill taper - MT4 MT5 MT5
Tailstock quill diameter mm 65 65 65
X travel mm 230 280 320
Z travel mm 1000/1500/2000
X/Z rapid feed speed m/min 6/8 6/8 6/8
Main spindle motor kw 4 5.5 0.125
Weight for 1000 kg 1800 1900 2000
Weight for 1500 kg 1900 2000 2100
Weight for 2000 kg 2000 2100 2200
Dimension for 1000 mm 2500*1650*1700 2500*1700*1750 2500*1750*1800
Dimension for 1500 mm 3000*1650*1700 3000*1700*1750 3000*1750*1800
Dimension for 2000 mm 3500*1650*1700 3500*1700*1750 3500*1750*1800

Detailed Photos

3-jaw Chuck 4-station tool post
Control system
Standard configuration: GSK
Optional configuration: Siemens/ Fanuc/ Syntec/ Mitsubisin
Manual tailstock
2-axis Box way Lubrication system The centralized lubrication system can be used in a timely,quantitative,convenient is conductive to increasing the service life of the machine tool.

Optional accessory
Auto chip conveyor and chip bucket 8-station turret Oil Mist Collection
Servo feeder Electric cabinet air conditioner Oil-water separation (Oil skimmer)

Company Profile
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.
