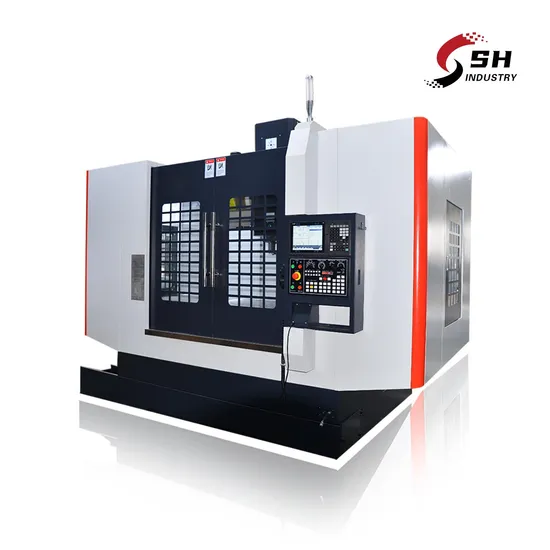

CNC Milling Machine Vmc1370 Heavy Duty High Precision Vertical Machine for Sale

Product Description

Product Description
CNC Milling Machine Vmc1370 Heavy Duty High Precision Vertical Machine for Sale
Product Parameters
Vertical machining center use:
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring etc.
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
1.The machine body adopts alloy cast iron with secondary tempering to ensure the stability and reliability of the body and effectively prevent the deformation of the body
2. Linear Guide Rail X/Y/Z axis linear guide rail all uses the original Taiwan HIWIN heavy-duty roller straight-line guide rail,may satisfy the customer the speed, the precision high request.
3 .Taiwan-made spindle Unit,8000-12000rpm available
4. Taiwan OKADA 24 ATC
5.Reliable Control System:Fanuc,Siemens,Mitsubishi ,GSKVmc850 vertical machining center is suitable for producing metal product and parts in all shapes.

Main technical specifications	Specifications	Units	VMC1270	VMC1370
	Table size	mm	1300x700	1400x700
	X axis travel	mm	1200	1300
	Y axis travel	mm	700	700
	Z axis travel	mm	600	700
	Max. worktable load	kg	1200	1400
	T slot(number-width-pitch)		5-18x125	5-22x140
	Max. spindle speed	rpm	8000(Optional:10000 )	8000(Optional:10000 )
	Spindle taper	mm	BT50/BT40	BT50/BT40
	Main motor power	kw	11/15	15/18.5
	X/Y/Z rapid traverse speed	m/min	24/24/18	24/24/18
	Cutting feed speed	mm/min	1-6000	1-6000
	Guide rail type		Linear rail	Linear rail
	Distance from spindle axis to column surface	mm	780	780
	Distance between spindle nose and worktable surface	mm	140-700	160-860
	Positioning accuracy	mm	±0.0075	±0.0075
	Repeat positioning accuracy	mm	±0.005	±0.0075
	Tool magazine		Arm 24	Arm 24
	Max. tool diameter	mm	φ112 (Adjacent)/ φ200(Apart)	φ112 Adjacent)/ φ200(Apart)
	Max.tool weight	kg	18	18
	Machine weight	kg	9500	10000
	Overall dimension	mm	3400x2480x2960	3870x3165x2920

Features: High quality resin sand
Taiwan spindle
Automatic lubrication system
Chip conveyor at optional Standard configuration System:KND-1000M
16 Armless Tool Magazine
3 axis linear rail Optional configuration System: SYNTEC,SIEMENS,FANUC
24 Arm Tool Magazine
The 4th axis
Spindle oil cooling
Chip conveyor
Oil-water separator
12000rpm spindle unit Realistic photos
Detailed Photos
Our Advantages
why not consult us once instead of searching ten times
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
