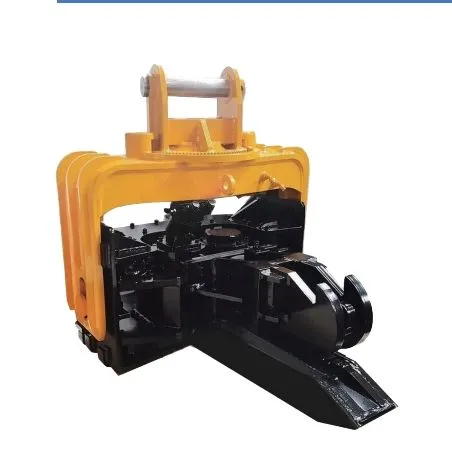

Excavator Hydraulic Pile Hammer for 15-20ton Excavator Vibratory Hammer with Arm Hydraulic Pile Hammer Sheet Pile Driver

Excavator Hydraulic Pile Hammer for 15-20ton Excavator Vibratory Hammer with Arm Hydraulic Pile Hammer Sheet Pile Driver

US$999.00-4,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
HP
Type
Pile Hammer
Transmission
Hydraulic Transmission
Size
Medium-Sized
Certification
CE
Condition
New
Name
Excavator Pile Hammer
Transport Package
Pallet /Woodencase
Trademark
HOPE
Origin
China
HS Code
843149

Product Description


Hydraulic pile driver is a construction machine that uses a hydraulic device to press reinforced concrete piles into the ground. High-frequency vibration is used to transmit the vertical vibration generated by the machine to the pile body through the clamp, causing the soil structure around the pile to change, reducing the strength, liquefying the soil around the pile body, reducing the frictional resistance between the pile side and the soil body, and then digging the The pile is sunk into the soil by the machine's downward pressure, vibration sinking hammer and pile body's own weight. When pulling out piles, the vibrating pile driver uses the lifting force of the excavator to pull up the piles.

Model Suitable Weight Eccentri Moment Frequency Centrifugal Force Working Pressure Working Flow Rotate Angle weight
Unit Ton nm rpm kn kg/cm² l/min ° kg
HP-08 20-30 36 3000 360 320 250 180 2900
HP-10 30-40 52 2800 450 320 250 180 3200
HP-17 40-50 70 2800 600 320 300 180 3800

Yantai Hope Precision Machinery Co., Ltd. specializes in the technical R&D and sales services of hydraulic breakers, wood grabbers, vibration hammers and other excavator and accessories. It adopts world-class production lines, high-quality alloy steel, advanced and reasonable oil channel design, rigorous heat treatment technology, first-class professional R&D team and have more than 10 years of production experience. It has super striking power, stable work, economical and durable, and it is suitable for various harsh working environment.Relying on global resources, it occupies the most cutting-edge information and development advantages, and leads the cutting-edge of excavators.The hydraulic breaker and other equipment produced by the company have successfully passed the ISO9001/2000 international quality management system certification and EU-CE certification because of its excellent quality control system.
Q1. Are you a trading company or manufacturer ?
we are manufacturer
Q2. How many days for the delivery time ?
It is up to the quantity, normally it need 1-7 working days after received the deposit.
Q3. What kind of payments you accept?
Now we accept T/T, L/C or Western Union, other terms also could be negotiated.
Q4. Are you able to manufacturing products according to customer's design?
Sure, we provide OEM/ODM service.
Q5. What's your advantages in the machinery manufacturing industry?
Fast delivery time, High quality products, Best customer service, Adopting the latest production technology.
Q6: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
Q7: What's the MOQ and payment terms?
A: MOQ is 1set
