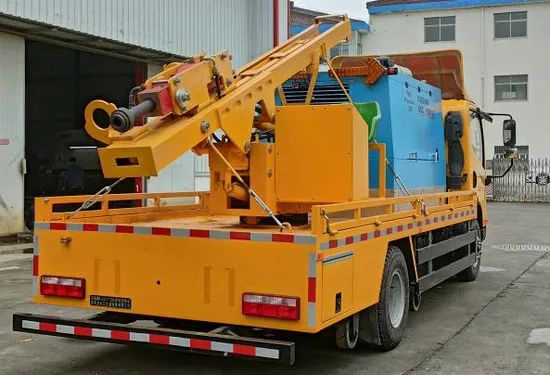

Diesel-Powered Guardrail Cleaning Vehicle for Pavement Repair and Maintenance

Product Description

Product Description
Highway Fence Collision Barrier Repair Vehicle for Guardrail Maintenance - The Ultimate Solution for Highroad Guardrail Repairs
Model Number: NJJ5061TQX6
Scope of Work: Specifically engineered for the maintenance of corrugated beam steel guardrails on highways, ensuring optimal safety and durability.
Vehicle Class: N2
Number of Passengers: Accommodates up to five people comfortably.
Maximum Travel Speed: Capable of reaching speeds up to 100km/h.
Fuel: Diesel oil, providing efficient and powerful performance.
Lubricating Oil/Grease: Utilizes lithium base lubricating oil for superior protection and longevity.
Hydraulic Oil: Employs 65# anti-wear hydraulic oil for reliable and smooth operation.
Base Plate
Chassis: Built on a robust Jiangling brand, Class II chassis, model: JX1061TSGA26. Equipped with air conditioning and directional power for enhanced comfort and control.
Wheel Base: 1385mm/1425mm
Wheel Base, Wheel Number, Arrangement, and Specification
Number of Rounds: 6
Layout: 4×2 rear axle drive with tire specification: 7.00R16LT, ensuring stability and durability.
Engine Technical Parameters: A comprehensive overview of the engine's type, form, power, and fuel consumption.
Engine Model: JX4D30B6H Type: Four-cylinder, in-line, water-cooled, electronically controlled high-pressure common rail direct injection, supercharged. Rated Power: 85kw
Driving and Braking Characteristics
Drive: Hydraulic drive for enhanced performance. Brake Form: Hydraulic double circuit system for reliable stopping power.
Overall Dimensions (L × W × H)
6280mm × 1880mm × 2880mm
Front/Rear Overhang: 1075mm / 1845mm
Wheelbase: 3360mm
Maximum Total Weight, Quality of Service
Working Device
Maximum Total Weight: 6495kg Quality: 4730kg Can carry more than 1 ton of material. This product boasts proprietary technology, having secured two national patents (Patent Numbers: ZL201010502209.X, ZL201020558552.1).
The Driving Mode of the Working Device: Hydraulic drive for seamless operation.
Technical Features:
The working device can rotate 270°, effectively attending to the central dividing belt and the left and right road guardrails. It operates without needing to turn or go retrograde and includes a hydraulic pile pulling mechanism for robust performance.
Equipped with a hydraulic support mechanism at the bottom of the guide rail. This feature absorbs all pulling forces, ensuring no damage to the body.
Includes wireless remote control capabilities. The special device can be remotely controlled to prevent damage caused by dust during drilling, enhancing safety and convenience.
Integrated Single Section Design of Anti-Collision Cushion: Features a rectangular design made with lightweight aluminum alloy material, filled with aluminum alloy thin-film honeycomb energy-absorbing material for maximum impact absorption and durability.
