US$10,000.00-11,800.00
|
1 Set
(MOQ)
|
Basic Info.
Processing Technics
Hot Press
Pressing Shape
Flat Press
Platen Surface Pressure
Medium Pressure
Pressing Layer
Single Layer
Controlling Mode
Artificial
Automatic Grade
Automatic
After-sales Service
1year
Dimension of Hot Plates
1300*2500mm
Number of Layer
1/2/3/4/5/6/7/8
Overall Size
4800*1800*2100mm
Transport Package
Woodcase Packing or Film Packing
Specification
4600*1800*2100mm
Production Capacity
100sets/Years
Product Description

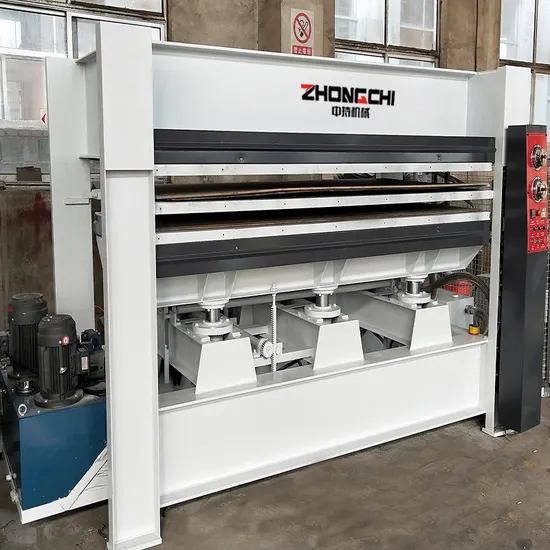

Detailed Photos
Product Parameters
Model | BY214*8/20(1) | BY214*8/20(3) | BY214*8/20(5) |
Nominal pressure | 120T | 120T | 200T |
Dimension of hot platens | 2500*1300*42mm | 2500*1300*42mm | 2500*1300*42mm |
Service opening | 300mm | 80mm | 80mm |
Layer | 1 | 3 | 5 |
Number of cylinders | 6 | 6 | 6 |
Diameter of cylinders | 130mm | 130mm | 130mm |
Power | 7kw | 7kw | 7kw |
Heating Power(thermal oil furnace) | 36kw | 36kw | 55.5kw |
Overall size | 4600*1800*2100mm | 4600*1800*2100mm | 4600*1800*2500mm |
Net weight | 5500kg | 7500kg | 11500kg |
Other Hot Press
Packaging & Shipping
Feedback
Certifications
FAQ
Q1: What is the brand name of the Machine?
A1: The brand name of the Woodworking Machine is Zhongchi Brand
Q2: Where is the Woodworking Machine manufactured?
A2: The Woodworking Machine is manufactured in Qingdao,China.
Q3: Is the Woodworking Machine certified?
A3: Yes, Have CE certification.
Q4:I am a fresh man for this machine,what kind of machine I should choose?
A4:Very easy to choose, just tell us :
1. the work you want to do ?
2. the maximum size of your material ?
then we give you perfect solutions and suggestions.
Q5:When I got this machine, but I did not know how to use it,What should I do?
A5:We will send tutorial video and English version manual with the machine, If you still have some doubts,we can talk by telephone or Video. Or even send our engineers oversea to help you.
Q6:If some problems happened to this machine during warranty period,what should I do?
A6:We will supply free parts in machine warranty period if machine have some problem, While we also supply free after-service,so any doubts, just let us know, we will give you solutions.
Q7:What is the MOQ?
A7:MOQ for our products is 1 set machine, we could send it to the nearest port to you.
