5km Vehicle Mounted All in One Drone Detection Identification, Positioning, Tracking Jammer System

5km Vehicle Mounted All in One Drone Detection Identification, Positioning, Tracking Jammer System

US$1.00 1 Piece (MOQ)

Basic Info.

Model NO.
AAT-DJ-TJ203
Application
Communication Electronic Products, Special Equipment, Car/Motorcycle
Detection and Identification
Dji Series Drones, Fpvs, Xiaomi, Yuneec, Hubsan, H
Localizable Drone Models
Dji Mavic, Air, Mini, Fpv, Avata. etc
Detection Frequency
100MHz~6GHz
Detection and Positioning Distance
1~5km Depending on The Environment
Detection Height
0m~1000m
Number of Targets
More Than10 Sorties
Positioning Accuracy
10m
Capable of Simultaneously Tracking
More Than 5 Strip
Drone Jammng
Radio Jamming Suppression
Action Frequency
900MHz, 1.5GHz, 2.4GHz, 5.8GHz
Jamming Distance
1.5km-2km
Object of Action
Uav Image Transmission, Flight Control Link, Navig
Counter Mode
Directional and Omnidirectional
Transport Package
Neatural
Specification
600* 600*425mm
Trademark
AAT
Origin
China

Product Description

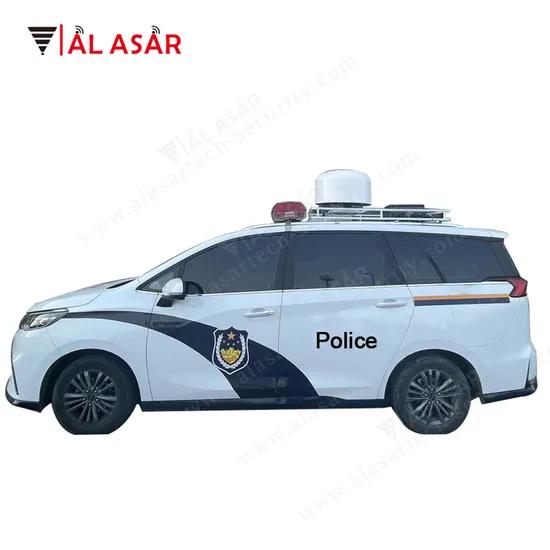

Product Description The AAT-DJ-TJ203 vehicle mounted drone detection and control integrated equipment integrates detection, positioning, and countermeasures units, which can achieve detection, identification, positioning, tracking, and interference disposal of invasive drones. This device can monitor the serial number, model, position (longitude, latitude, azimuth), speed, altitude, takeoff point, return point, trajectory, remote control position (longitude, latitude, azimuth) and other multidimensional information of drones within the monitoring range through deep analysis and data mining of drone signals. The equipment adopts an integrated industrial design, with a simple and concealed appearance, strong environmental adaptability, flexible deployment methods, and can be installed and erected in a vehicle or fixed manner.
This device is suitable for low altitude security in scenarios such as large-scale event support, public security patrols, border defense, accompanying protection of political figures, management zones, power and petrochemical parks, and airports. It can work offline on a single machine, flexibly and quickly deploy, and respond flexibly, meeting the needs of various scenarios.
This product mainly consists of five parts: equipment host, power box, bracket, heavy-duty wire, and accessories, as shown in the table below:
Table Product Hardware Composition Details
Serial Number Device Name Number Unit
1 Device host 1 pcs
2 Power box 1 pcs
3 Heavy load line 1 pcs
4 Support 1 pcs
5 Parts 1 pcs
Product Feature Drone detection: It can detect and identify the brand, model, frequency, and other information of invading drones. Drone positioning: It can locate the position information of the DJI series of drones, and display real-time drone position (longitude and latitude), azimuth information, distance information (distance from the drone to the location of the equipment), speed, height, etc. Flying Hand Positioning: It can locate the position information of the flying hand of the DJI unmanned aerial vehicle, and display the real-time position (longitude and latitude), azimuth information, and distance information of the flying hand (remote control) relative to the position of the equipment. Unique identification code recognition: It can identify the unique serial number of the DJI series drone and confirm the unique identification information of the drone. Integrated detection and strike: The device can automatically counter attack the drone after detecting and identifying it. Multi target trajectory tracking: Capable of achieving multi target drone positioning and tracking, while displaying multiple drone flight trajectories. 4,System Function Black and white list: It can distinguish between cooperative and non-cooperative drones, and the device will not give an alarm when detecting cooperative drones. It can also label cooperative drones with trust. Intrusion alarm: When a drone invasion is detected, an audible or visual alarm will be triggered. Trajectory playback: Support drone flight trajectory playback, assist security personnel in analyzing historical drone flight data. Detection Record: The detection record list can retain historical detection records, including multidimensional information such as drone serial number, model, frequency, etc. Data and information visualization analysis: Support UAV detection and flight data statistical analysis, which can be presented by visualization methods such as thermal diagram and Line chart; Electronic map: Supports electronic map switching, including Gao de, Bing, Baidu, etc. 5,Product Features Integrated design: All working modules of the equipment are integrated into a protective cover, which adopts a low wind resistance design to maintain stability and safety of the vehicle in high-speed motion; Mobile operation: The equipment has the ability to detect and counter drones during high-speed movement; All detection models: The system can identify and detect common brands of drones such as DJI, AUTEL, Dahua, YUNEEC, as well as the vast majority of models on the market such as self-made traversing machines and WiFi machines; Passive detection: The equipment does not emit any electromagnetic signals, has no electromagnetic environmental pollution, and is environmentally friendly; Three all-around readiness: The equipment operates continuously day and night for 7*24 hours, 24/7 (suitable for complex electromagnetic environments and harsh weather environments), and provides comprehensive (360° detection of drone intrusion) security in the core area; Multi-unit network: Devices can be connected to the backend control platform through networking, and the multi-unit network meets the needs of large area coverage. Product Parameters Product Performance Indicators - Detection Positioning
Number Index Parameter Notes
1 Detection and identification of drone types DJI series drones, FPVs, Xiaomi, Yuneec, Hubsan, Hubson, Powervision, Tello drones etc.
2 Localizable drone models DJI mavic,air,mini,FPV,avata. etc
3 Detection frequency band 100MHz~6GHz
4 Detection and positioning distance 1~5km Depending on the environment
5 Detection height 0m~1000m
6 Number of targets that can be detected simultaneously ≥10 sorties
7 Capable of simultaneously tracking and displaying drone trajectories ≥5strip
8 Azimuth error ≤1°(RMS)
9 Positioning accuracy ≤10m
10 Detection success rate ≥99%
11 Identify response time ≤3s
Product Performance Indicators - Reaction
Number Index Parameter Notes
1 Operation mode Radio jamming suppression
2 Object of action UAV image transmission, flight control link, navigation signal
3 Action frequency band 900MHz, 1.5GHz, 2.4GHz, 5.8GHz and other commonly used frequency bands for unmanned aerial vehicles, which can be independently controlled and combined as needed
4 Reverse distance 1.5km-2km (there may be some differences depending on the environment and model) Depending on the environment
5 Counter mode Directional and omnidirectional
6.2 Mechanical ParametersProduct Mechanical Parameters
Number Index Parameter Notes
1 Weight ≤32kg host
2 Size Φ*H(600mm*425mm)±2mm
Application It is suitable for drone prevention and control operations such as temporary major security tasks, park inspections, border defense, coastal defense, etc.
