1t/H Capacity Ring Die Biomass Wood Pellet Mill Biomass Pelletizing Machine

1t/H Capacity Ring Die Biomass Wood Pellet Mill Biomass Pelletizing Machine

US$17,000.00-36,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
MZLH420
Automatic Grade
Automatic
Controlling Mode
Electric Carbinet
Energy Saving
Energy Saving
Certification
CE, ISO
Warranty
1 Year
Customized
Customized
Condition
New
Color
Multi Color
After-sales Service
Machine Technical Service Supply
Name
Biomass Wood Pellet Mill
Main Motor Power
55-132kw 8 Pole
Force Feeder Power
1.1kw
Feeder Power
2.2kw
Output
0.5-3t/H
Diameer of Ring Die
350-768mm
Roller Qty
2PCS
Bearing
S-K-F or N-S-K
Motor
Siemens or China Wannan
Transmision Type
by Gear
Transport Package
Export Stand Wooden Case
Specification
2700x1100x1800mm
Trademark
Astar
Origin
China
HS Code
8474802000
Production Capacity
15 Sets Per Month

Product Description



1T/H Capacity Ring Die Biomass Wood Pellet Mill Description:
(1). This pellet machine mainly used for making wood pellets , the pellets used for industry, boiler factories , the machine can be produce φ6.0,φ8.0,φ10.0,φ12.0 pellets.
(2)The machine adopt imported SKF or NSK bearings, the motor brand is Siemens or china famous Wannan brand
(3)Driven by gear .more strong than by belt, and the capacity 10% higher than by belt .
(4)the machine also matched the safty equipment , once overload , the safty pin will crack, to protecting the machine lifetime .
2. 1T/H Capacity Ring Die Biomass Wood Pellet Mill Quotation Details :
(1)Payment: 40% payment should be prepaid by telegraph transfer, the balanced 60% should be paid within 5(five) days after got the copy of B/L
(2)Delivery Time: 25- 30 days after receive the advance payment
(3)Price based on FOB Shanghai port,China Per Set
(4)Packing: Standard export packing by Fumigation-free wooden cases
(5)MOQ:1set
(6)Validity of Quotation: 2 months
(7) Warranty Period: 18 months except the spare parts

3. 1T/H Capacity Ring Die Biomass Wood Pellet Mill Main Data:
Model Main Power(kw) Capacity(kg/h) Feeder Power(kw) Force feeder power(kw) Die Diameter(mm)
MZLH35 55 400-600 1.1 1.1 350
MZLH420 90 1000-1200 1.5 1.5 420
MZLH508 110 1500-2000 1.5 1.5 508
MZLH558 132 2000-2500 3 2.2 558
MZLH678 185 3000-3500 3 2.2 678
MZLH768 220 3500-4000 3 3 768

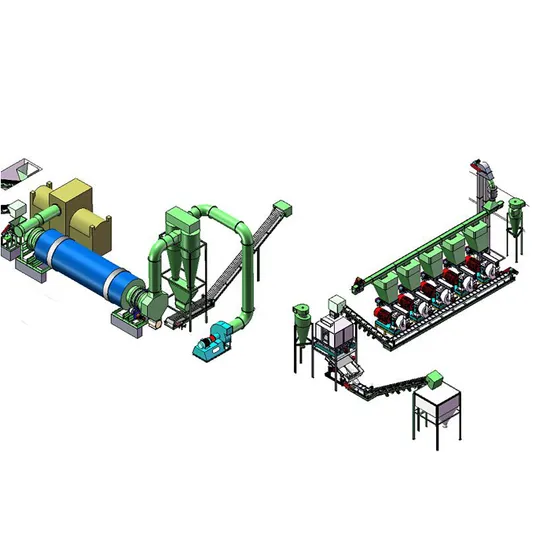

1T/H Capacity Ring Die Biomass Wood Pellet Mill Photos:
Any more information you need 1T/H Capacity Ring Die Biomass Wood Pellet Mill, please feel free to contact with us.

Mr. Jason
Chongqing Qiaoxing Machinery & Equipment Company
Website: http://qiaoxingmachinery.en.made-in-china.com
Add: Room 6088, Building 4th, No. 319 of Haier Road in Jiangbei District, Chongqing Municipality, Chongqing, China
