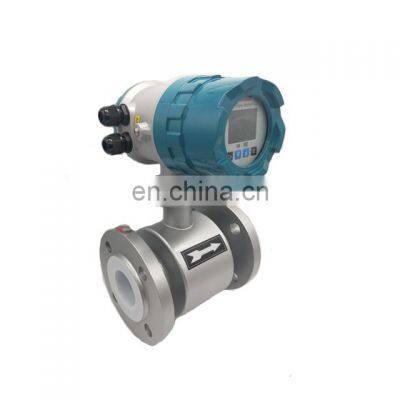

Taijia Integrated type electro magnetic flow meter price manufacturer

Product Description

Product Description
Flow meter connection typeInsertion type electromagnetic flow meterWe also have seperate type insertion electromagnetic flow meterTri clamp electromagnetic flowmeterTri clamp connection Sanitary type electromagnetic flowmeterSemi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.FAQTo help you with choosing prefection Electromagnetic flow meter, please let us know below questions:1. The pipe size is DN___mmor ___inch .2. The medium is _____.3. Temperature is _____ °C.4. The pressure in pipe are _____.5. Output & Power Supply request :_____. 6. Lining & Electrode material request :_____.7. Converter type reuest: Ingtegrated type or Remote type8. Other requirement :_____.If you have any query, pls feel free to contact me.(The high lighten are the important )Product DescriptionOEM service Magnetic Inductive Flow TransmitterTEM82E series electromagnetic flowmeters follow the Faraday law of electromagnetic induction. They can be used to accurately measure the flow rate of liquids which are electrical conducting, caustic, and mixed with liquids and solids. They are widely used throughout industries of petroleum, chemical engineering, pharmacology, papermaking, electric power, environmental protection and so forth.SpecificationFeatures for inductive electromagnetic flow meterFeatures for inductive electromagnetic flow meter1.Highly intelligentized2.Multi-electrode structure3.High accuracy4.No moving parts5.Wide operating range6.AC.85V~265V,DC:18V~38V 7.No obstruction to the flow8.Variety of flange types availiable9.Different exicitation frequencies to choose10.Able to detect two-way11.Capacitive empty and full pipe measurement technique12.Lighting protection and anti-jamming circuit design13.Have EPROMProduct nameTEM82E Inductive electromagnetic flow meter Flange Material: SS/CS Electrode Material: 316L, Pt, Ta, Ti, HB, HC, WC Liner: PU(DN25~DN500)/ F4(PTFE) (DN25~DN1600)/F46(FEP) (DN10~DN200)/ PFA (DN10~30) Size: DN6~DN2800mm Medium: Conductive liquid, slurry Accuracy: ±0.25% . ±0.5% Repeatability: ±0.1% . ±0.17% Rated Pressure: 0.6, 1.0, 1.6, 2.5, 4.0, 6.4 MPa (or specified by customer ) Display : Instantaneous flowrate, total flow, velocity, flowrate percentage with back light Signal Output: 4-20mA current output, pulse output, RS-485, Hart. Power Supply: AC:85V~265V, DC:18V~38V Converter Type: Integral, remote Protection Grade: IP67/IP68 Flowing Direction: Forward, Reverse Electrode Number: 3~6 pcs Alarm (normal open): Empty, excitation, upper/lower limit DisplayInductive Electromagnetic flow meter can dispaly liquid Instantaneous flowrate, total flow, velocity, flowrate percentage with back lightInstallation InstructionsPacking & DeliveryThe electromagnetic flow meter will be send out in Carton box or wooden box according the different pipe size and requirement.Company ProfieDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonicmeasurement equipment. prime products include ultrasonic transit-time flow meter, hand held ultrasonic flow meter, portable ultrasonic flow meter, wall mounted ultrasonic flow meter, fixed ultrasonic flow meter; electromagnetic flow meter, insertion flow meter, vortex flow meter, gas flow meter, rotameter, turbine flow meter, thermal mass flow meter. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical. Related product TDS-100F1Wall mount Fixed ultrasonic flow meterTDS-100HHand held ultrasonic flowmeterTEM82Eelectromagnetic flowmetersUTG21-DRRiver Open channel flow meterUTG21-PYUltrasonic level transmtter
