Looking for Bulgaria Agency or Partner Agent for Topstar Injection Moulding Machine and Peripheral Equipment

Looking for Bulgaria Agency or Partner Agent for Topstar Injection Moulding Machine and Peripheral Equipment

US$1,800.00-678,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
TOPSTAR
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Clamping Force
60~5500 Ton
Clamping Stroke
300~1400mm
Max Platen Distance
710~1400mm
Transport Package
Wooden Box or Customized
Specification
8*1.5*2.3m
Trademark
Topstar/customized
Origin
Mainland China
Production Capacity
30000 Units Per Year

Product Description

Looking for Bulgaria Agency or Partner Agent for Topstar Injection Moulding Machine and Peripheral Equipment
Topstar Full Series of Injection MoldIng Machines:
1. TM series Toggle Clamping injection molding machine(90-470T):
DRIVE TECHNOLOGY CLAMPING FORCE CLAMPING SYSTEM MAXIMUM
TIE-BAR DISTANCE
MAXIMUM SHOT WEIGHT
Servo Hydraulic 900-4700KN 5 points toggle 820*820mm 2150g(PS)

Features:
1. Oblique 5 points double toggle clamping unit:
Oblique five-point structure has high bearing capacity, compact structure, good motion performance and fast speed, which can reliably ensure the smooth operation of the injection molding machine, and ensure product quality and work efficiency.

2. High Performance Configuration:
Servo enery-saving system: Phase servo motor, Delta servo drive, KEBA controller;
Euro standard ejector is easy to disassemble & install, and size is smaller with bigger operating space ;
Double sliders design for moving platen,ensures evenly stress,good for moving platen height adjust and reduce toggles & bushes abrasion;
Automatic mold adjust by gears;
Three-bearing design for injection transmission shaft to ensure coaxiality;
Moduler core-pulling design, numbers of core pullings can be freely matched based on requirement;
Diagonal double carriage moving cylinders design ensures good stability;
3. Widely Application:
Toys, Daily necessities, Household appliances, Packing
4. Models/ Clamping force(Ton): TM90, TM130, TM 170, TM220, TM260, TM330, TM400, TM470
2. EVH series direct press energy saving servo injection molding machine(60-5500T):
DRIVE TECHNOLOGY CLAMPING FORCE CLAMPING SYSTEM MAXIMUM
TIE-BAR DISTANCE
MAXIMUM SHOT WEIGHT
Servo Hydraulic 600-55000KN Direct press 2620*2260mm 102018 m3

Features: 1. 50% energy saved by its high efficient servo energy saving system:
2. Direct press clamping unit,high pressure is directly streesed on the platen center, can extende the plate & mold working life.
3. High presicion plate parallelism, especially suits for deep & multi cavity production;
4. Clamping and ejecting position controlled by linear transduccers,repeat accuracy rezlizes +/- 0.05mm,suits for high precision production;
5. Longer opening stroke than toggle machines;
6. Hydraulic oil self-lubricate design,no lubrucating oil pollution;
7. Widely Application:
Medical parts; 3C electronic, Buckets, Food package, Auto parts
8. Models/ Clamping force(Ton): EVH60, EVH90, EVH130, EVH180, EVH220, EVH280, EVH320, EVH410, EVH550, EVH650, EVH800, EVH1000, EVH1200, EVH1400, EVH1800, EVH2200, EVH2800, EVH3300, EVH4000, EVH5500.
3. EMVH Series Multi-material co-injection Injection Molding Macine:
DRIVE TECHNOLOGY CLAMPING FORCE CLAMPING SYSTEM MAXIMUM
TIE-BAR DISTANCE
MAXIMUM SHOT WEIGHT
Servo Hydraulic 1800-28000KN Direct press 920*920mm 718 cm3 + 399 cm3

Features:
1. Direct press clamping design,protects mold and platens;
2. Both "P" and "L" type injection units are available;
3. Specialized for multi-material injection.
4. Models/ Clamping force(Ton): EMH180, EMH220, EMH280, EMH410, EMH550, EMH650, EMH800, EMH1000, EMH1200, EMH1400, EMH1800, EMH2200, EMH2800.
5. Widely Application:
Auto parts; Packing, Daily necessities, Medical parts.
4. SEVH Civilian Industry Specialized Injection Molding Macine:
DRIVE TECHNOLOGY CLAMPING FORCE CLAMPING SYSTEM MAXIMUM
TIE-BAR DISTANCE
MAXIMUM SHOT WEIGHT
Servo Hydraulic 4100-55000KN Direct press 2620*2260mm 107119 cm3

Features:
1. Specialized designed screw&barrel to work with recycled material with big injection volume;
2. Patented clamping structure that protect mold and platen:
High pressure cylinders are mounted in the center of the platen, 100% pushed onto the mold, it can extend mold working life and avoid platen deformation. Other brand 2 platen machine are with high pressure cylinders on the tie bar end ,that makes it stressed and easy bend&broken.
3. Specialized wide opening stroke for deep cavity product.
4. Machine total height is smaller than other 2 platen machines
5. Machine selection reference:

Machine Shot weight(kg) Product
SEVH550 3.2 Lid for 240L trash can
SEVH650 2.2 20L trash can
SEVH800 2.9 30L/40Ltrash can
SEVH1000 4.3 50L/60L/80L/660L trash can lid
SEVH1400 6.1 100/120Ltrash can
SEVH1800 18 240Ltrash can(over 9KG)
SEVH2200 18 240L trash can(7.5KG)/pallet
SEVH2800 35 660L trash can/pallet
SEVH3300 35 660L trash can(thin wall)/pallet


5. EEA series all-electric injection machine(80-360T):
DRIVE TECHNOLOGY CLAMPING FORCE CLAMPING SYSTEM MAXIMUM
TIE-BAR DISTANCE
MAXIMUM SHOT WEIGHT
Servo 800-3600KN Under 3600KN Toggle 3600KN Direct press 1060*1060mm 763 cm3

Features: 1. The whole process from design to assembly is supervised by a Japanese expert team.
.
2. The first factory in China machinning and assembling in constant temperature workshop.
3.The first factory in China using direct drive on clamping&injection, 20% efficiency higher than belt drive.
4.Using global top brand critical components and lubrication system,to guarantee the performance as good as Japanese machines.
5. Anti-loose design for Injection Thrust Bearing & ball screw. Rolling bearing type injection unit rotating design;
6. Models/ Clamping force(Ton): EEA80, EEA130 , EEA180, EEA230, EEH360
7. Widely Application:
Medical parts, 3C electronic, Packing
Our Advantage:

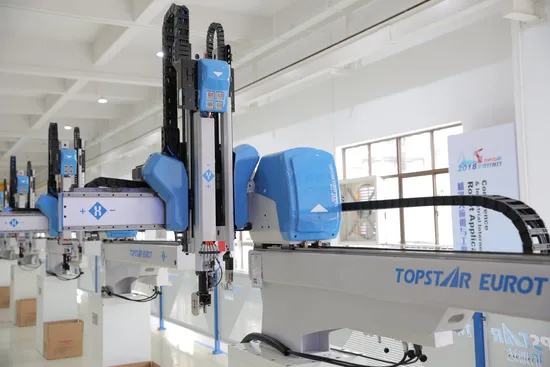

1. We can offer one stop solution for plastic injection molding from Injection Molding Machine to Injection Robots/ Take-out Robots, Peripheral / Auxiliary Equipments, Six Axes/ Four Axis / SCARA Robots, Material Centralized Feeding System, Clean Room, Whole Plant Planing etc.
2. Topstar is a big public company with good reputation, can guarantee good quality with excellent after sale service.
3. Acquired Elite with more than 36 years' experence of Injection Molding Machine manufacture, once OEM for Toshiba, master the core Japanese technology.
4. Have Agents or Partners in more than 30 countries like Korea, Malaysia, Turkey, Italy, Poland, Sweden, Czech, USA, Russia etc. Convenient for after sales.

After-sales service:
Company profile
Guangdong Topstar Technology Co., Ltd.(Abbr. TOPSTAR, stock code: 300607)is the first robot key enterprise listed on GEM in Guangdong province, focusing on the R&D, manufacturing and sale of the industrial robots as the representative of intelligent equipment, dedicated to system integration, product manufacturing, software development and industry internet -- four in one intelligent manufacturing integrated service provider.
TOPSTAR adheres to the brand advocate " Making industrial manufacturing better" and the core value "one year investment return for the automation solution". The core products include intelligent equipment represented by industrial robots, industrial internet of things software represented by control systems and MES, providing customers with turnkey solutions for intelligent production environment based on industrial robots and creating a healthy intelligent manufacturing ecosystem.
There are more than 30 sales and service branches all around the country, and serving for 5000 customers, including Midea, BYD Auto, CHANGCHENG Auto, BIEL, etc.
