Z3040 Price Discount Hydraulic Clamping Radial Drilling Machine

Product Description

Z3040 Price Discount Hydraulic Clamping Radial Drilling Machine

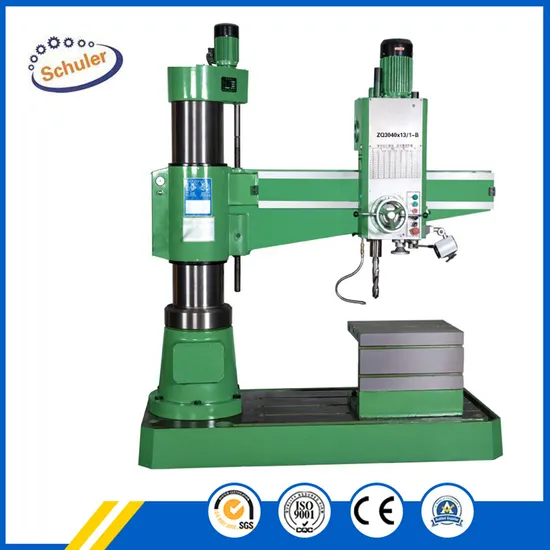

Product picture:
Features:
The radial drilling machine model Z3040,Z3050, Z3063, Z3080 is a new series with diversified functions of product which has been designed and accomplished referring to the intermational standards (ISO) CE in the recent years. In this machine, hydraulic preselection speed and feed change mechanisms are adopted.
The spindle head, radial arm and columns are clamped by the hydraulic clamping mechanisms, and the forward, reverse, stop (braking), as well as the setting of spindle in neutral position are all controlled by a single-lever, the machine has the characteristic features of perfect performance, safe, reliable and easy operation, convenient maintenance, high accuracy, ample rigidity and long service life. It is used for drilling, counter boring, spot facing, reaming, tapping and boring. It is the machine widely used in every department of mechanical machining.
Radial Drilling Machine Technical Parameters:

specification	Z3040×11/II	Z3040×11A	Z3040×14	Z3040×14II
max. drilling dia mm	Cast iron 40 Steels 32	Cast iron 40 Steels 32	Cast iron 40 Steels 32	Cast iron 40 Steels 32
Distance between spindle axis and column mm	260-1050	260-1050	260-1150	260-1050
Distance between spindle nose and working surface of base plate mm	360-1/1100	360-1/1100	360-1400	360-1/1400
spindle travel mm	270	200	200	200
spindle taper(morse)	4	4	4	4
range of spindle speeds r.p.m	40-1896	75, 130,240,380,660,1200	75, 130,240,380,660,1200	40-1250
number of spindle speeds	12	6	6	6
r.p.m rang of spindle feeds	0.13-0.54	0.10-0.25	0.10-0.25	0.10-0.25
steps of spindle feeds	4	3	3	3
Radial rotation Angle (°)	360	360	360	360
main motor kw	2.2	2.2	2.2	2.2
Lifting motor power kw	0.75	0.75	1.5	1.5
weight kg	1600	1600	2200	1200
overall dimensions mm	1550×705×2200	1500×705×2200	1800×810×2300	1800*810*2200

Radial Drilling Machine Details:
Radial Drilling Machine Package delivery:
Company and Certification Information:
Shandong Schuler CNC Machinery Co., Ltd. is a professional manufacturer of vertical machining center, high speed machining center, gantry machining center, vertical milling machine, universal milling machine, turret milling machine, lathe, CNC lathe, radial rocker drill, metal band sawing machine. enterprise. The company is located in Tengzhou City, Shandong Province, with convenient transportation and industrial intensive. The company integrates research, development, design, manufacturing, sales, installation and maintenance of CNC machine tools. With high-level production equipment technology and excellent, high-quality staff, providing high-quality product quality and service, the products sell well in domestic and foreign markets.
Zhongzheng is a person, and integrity is the foundation. It is the aim of Schuler people. It is consistent with the words and deeds, and it is always the commitment of Schuler people to our customers.
Schuler is willing to cooperate with every customer and peers to win the best for the development of CNC machinery industry. We will return the society with professional and perfect technical support services.
The company's main products include CNC machining center, industrial CNC milling machine and gantry machining center. , metal band sawing machine, CNC lathe, universal turret milling machine, ordinary milling machine, punching machine and other products, customers are welcome to contact us, we will provide you with quality products and satisfactory service.
