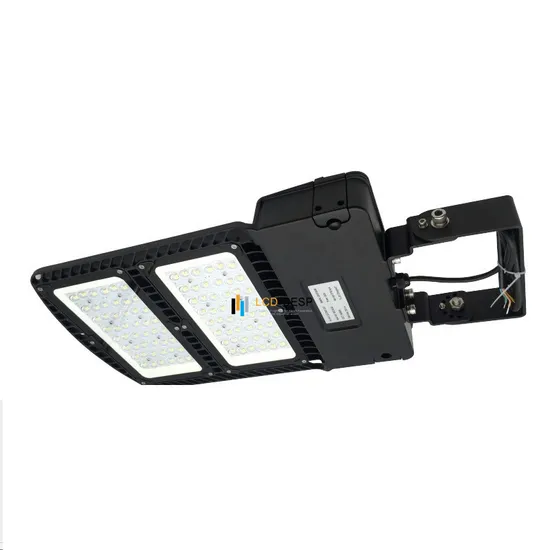

Street Light 60W, LED, 100-277VAC, 5000K, IP66 Floodlight, Wide Beam, Street Lighting

Product Description

LED street lights
Model:
A-LCD-S-XXX-LN
B-LCD-S-XXX-LN
C-LCD-S-XXX-LN
Product Description
The new A-LCD street light enhances the peculiar characteristics of LEDs, thanks to the innovative Xitanium power supply, which ensures maximum durability and resistance. Cree LEDs are supported by LEDIL high transparency and transmittance lenses, protected by an anti-yellowing and anti-vandalism tempered glass. Suitable for lighting large roads, junctions and urban streets. Tools-free opening and field replaceable components. A-LCD is equipped anti-condensation watertight valve and safety system, which immediately interrupts the power supply when opened, an anti-fall steel cable and a protection device against overvoltages up to 10-20kV Reprogrammable virtual midnight, remote diagnostics, Class I or II , DALI, etc end of life indicator Born to be integrated into SMART city projects.
And the new B-LCD series adopts the latest generation driver from Inventronic: EUM. Was adopted this technology to ensure maximum durability combined with the robustness of the driver. The Luxeon 5050 LEDs are supported by high transparency and LEDIL transmittance lenses, protected by an anti-yellowing and anti-vandalism tempered glass. Suitable for street and urban lighting. Tools-free opening and on-site interchangeable components, very few operations are enough to access the optical compartment and the electrical unit. Equipped with a watertight depressurization valve. Reprogrammable virtual midnight. The optics can be customized according to project requirements.
Then C-LCD series LED street lighting, with a linear external structure and characterized by excellent lighting performance. Designed to last over time against exogenous factors. C-LCD provides a diffused and uniform light as its LEDs are supported by LEDIL high transparency lenses, transmittance and protected by tempered glass. The C-LCD series is a high-safety product equipped with a separate surge protective device (SPD): It can Love the NEMA receptacle on the upper back.Programmable virtual midnight. Xitanium or MEANWELL driver for class II or class I.
Compliance
LM79/LM80/IES available
(EMC):EN 55015:2013/A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61547:2009, EN 62493:2015
Features
>>More wattage options:
20W/30W/50W/70W/100W/120W/150W/200W/250W/300W/350W, and largest 1000W up to 1500,22 LM.
>>High quality SMD3030 OR 5050 LED chips &Xitanium Inventronic Meanwell drivers.
>> LEDIL lenses Type I II III IV V all different Asymmetric beam angel option ( other distributions available).
>>ADC12 Aluminum alloy, with 98 w/m.k thermal conductivity.
>>3.4-30.5kg light weight of internal driver, 30-40% slim & lightweight than others.
>>High Impact Resistance (meets IK09 mechanics impact protection code).
>>Anti 17-level Wind Power(the fixture has strong ability of anti-wind).
>>High Vibration Resistance (Meets ANSI C136.31-2001 3G bridge and overpass vibration standards.).
>>IP66 rated, 3-5 years warranty, 100,000 hours lifespan
>>More options: 347-480V, dimmable, Surge protection,intelligent control, Zigbee wireless dimming ,twist-lock photocell …
>>Meet multiple testing standard and certificate
>> Full spectrum LED chips street lights available.
Specifications
LCD has helped lots of customers in many projects not only as a manufacturer of conventional LED flood lights for industry, but above all in the segment of the development of special floodlight too. A very important and challenging field is that of the special flood lights. The development of High-quality the best orientation lighting flood lights for this area worked and sustainability has necessary high quality and service guaranteed.
The LCDFK® special flood light series is ideally used in challenging environments such as building lighting, roadway and car parking construction, loading area, etc. Different requirements called for different solutions. The diverse portfolio therefore offers the opportunity to find the right product for these special circumstances.
Features & benefits

CERTIFICATIONS	CE RoHs SAA C-tick TUV ETL
HOUSING	Aluminum alloy ADC12.
LENS	4mm thick front tempered glasses or stainless steel front cover +95% light transmission. Shock and vibrations resistant.
PERFORMANCE	4,500 to 225,800 lumens Up to 135-150 lm/w. From 30W up to 1500W. L70 (hrs) rated > 60,000 hours.
IP65/ IP66 RATED	Dust tight and protected against big waves or strong water jetting Ideal for heavy industry, mining, refineries, chemical industry, coastal marine facilities and corrosive applications.
MOUNTING	Surface, wall mount standard (adjustable mount bracket included).
OPERATING TEMPERATURE	From -30°F up to 131° (-30°C to 55°C).
DIMMING	RGB or Infrared sensor or 0-10V dimming standard or DALI on requests .

HIGH POWER LED FLOOD LIGHT.
LCDFK™
Now, there historically been a few obstacles implementing LED flood lighting - The first one of course being price, and secondly efficient high wattage heat management and the best orientation lighting distribution or less lighting pollution. With improvements in technology price always comes down with advancements as LEDs are rapidly becoming cheaper, the main issue (especially in industrial applications) is heat dissipation and Optic beam and its not so much easy.
Due to the fact that many manufacturers of LED lamps neglect the thermal management and optic beam of their products, their claimed characteristics are, to put it mildly, unreliable. Many fixtures you will find fail well before the manufacturer's stated useful life.
There is now a trend towards an increase in wattage of LED fixtures, which should obviously increase the thermal efficiency of LED board and current drivers. The requirements for the fixture itself (overall size as everything is becoming compact) are being increasingly smaller, so it is becoming much more difficult to create a LED fixture to be able to perform in such demanding environments, specifically the industrial environment.
Here you can see how our flood flight was designed to withstand even the most extreme industrial environments and the thermal management has created a flood light for the demanding needs of the most environments.
IP / IK protection
IP / IK Mark:
IP66 / IP67 / IK09
Electrical data
Rated voltage: 85-305 VAC, 50-60Hz or 18-32VDC on requests
Power factor:>0.95
THD:<20%
Luminous characteristics
Power consumption [W] :30 watt, 50 watt, 80 watt, 100watt, 150 watt, 200 watt, 250 watt, 300 watt, 400 watt, 500 watt, 600 watt, 800 watt, 900 watt, 1000 watt, 1200 watt, 1500 watt.
Colour rendering [CRI]: > 80 (±2) for 3000K, [CRI]: > 80 (±2) for 4000K, [CRI]: > 80 (±2) for 6500K
Colour temperature [K]: 2700-6500K
Luminaire efficiency: >135-150 [Lm/W]
Beam angle:Symmetrical optic 120° (30°, 60°, 90°)
Or Asymmetrical optic 45°, TYPEI/II/III/V/VI etc optical lenes are optional)
Mechanical data
Cable entry: G1/2"-3/4"or NPT1/2"-3/4", M20*1.5-M27*1.5
Weight [kg]: 7.25 KG Or 23 KG
Terminal: ≤4 mm²(more size optical)
Mounting Option: Ceiling; Wall Bracket; Grounding; Pole

Model No	LCDFK-50	LCDFK-80	LCDFK-100	LCDFK-150	LCDFK-200
LED Source	SMD 3030/5050	SMD 3030/5050	SMD 3030/5050	SMD 3030/5050	SMD 3030/5050
CCT	2700K-6500K	2700K-6500K	2700K-6500K	2700K-6500K	2700K-6500K
Luminous Efficiency	135lm-155lm/w	135lm-155lm/w	135lm-155lm/w	135lm-155lm/w	135lm-155lm/w
Beam angle	Symmetrical optic 120° (30°, 60°, 90°) Or Asymmetrical optic 45°, TYPEI/II/III/V/VI etc optical lenes are optional)	Symmetrical optic 120° (30°, 60°, 90°) Or Asymmetrical optic 45°, TYPEI/II/III/V/VI etc optical lenes are optional)	Symmetrical optic 120° (30°, 60°, 90°) Or Asymmetrical optic 45°, TYPEI/II/III/V/VI etc optical lenes are optional)	Symmetrical optic 120° (30°, 60°, 90°) Or Asymmetrical optic 45°, TYPEI/II/III/V/VI etc optical lenes are optional)	Symmetrical optic 120° (30°, 60°, 90°) Or Asymmetrical optic 45°, TYPEI/II/III/V/VI etc optical lenes are optional)
Power supply	TUV CE CB SAA etc approved driver	TUV CE CB SAA etc approved driver	TUV CE CB SAA etc approved driver	TUV CE CB SAA etc approved driver	TUV CE CB SAA etc approved driver
Input Voltage	90-305V,50/60Hz, 18-32VDC on requests	90-305V,50/60Hz, 18-32VDC on requests	90-305V,50/60Hz, 18-32VDC on requests	90-305V,50/60Hz, 18-32VDC on requests	90-305V,50/60Hz, 18-32VDC on requests
PF	>0.95	>0.97	>0.97	>0.97	>0.97
THD	<20%	<20%	<20%	<20%	<20%
IP Rating	IP66 / IP67	IP66 / IP67	IP66 / IP67	IP66 / IP67	IP66 / IP67
Operating Temperature	-30ºC to +55ºC	-30ºC to +55ºC	-30ºC to +55ºC	-30ºC to +55ºC	-30ºC to +55ºC
Certifications	CE,ROHS, SAA,C-tick, TUV	CE,ROHS, SAA,C-tick, TUV	CE,ROHS, SAA,C-tick, TUV	CE,ROHS, SAA,C-tick, TUV	CE,ROHS, SAA,C-tick, TUV
Dimension (MM)	362x290x240mm	362x290x240mm	362x290x240mm	362x290x240mm	362x290x240mm
Watt options	50W	80W	100W	150W	200W
N.W. (KG)	KG	KG	KG	KG	KG
