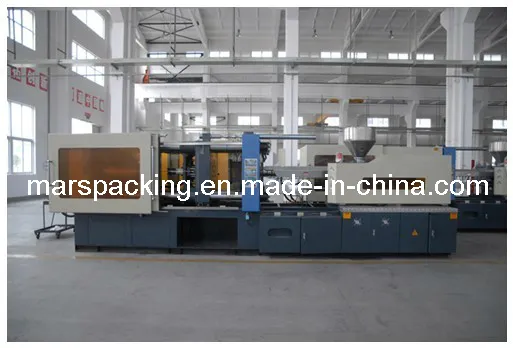

Zs2680 Pet Bottle Preform Injection Molding Machine

Product Description

Plastic injection molding machine hydraulic unit:
This unit of our plastic injection molding machine composed of imported advanced hydraulic components. System pressure is controlled by proportional valve. According to users demand, a quick mold clamping device and fast-respond excellent control valves also can be fitted on the unit...
Plastic injection molding machine clamping unit
Optimum designed double-toggle five-joint clamping machinery has functions such as large open stroke, efficient and reliable movement. Multi-eject Functions with pressure, speed, position and delay time adjustable are suitable for various molding conditions. In addition, we can deploy multilevel moulding devices according to the requirement of the user.
Plastic injection machine electronic equipments control
It is adopted special computer of plastic-injection machine and advanced CPU controller. Which can raise the operating speed of the control system and warm of excess oil-temperature to ensure the working accuracy of machine.
ITEM, DATA, UNIT
ZS2680, A
Injection Unit
Screw Diameter: 55mm
Screw L/D Ratio: 22.9 L/D
Cylinder head Volume: 569m³
Shot Weight: 520g
Plastic Rate(PS): 36g/s
Injection Rate(PS): 198g/s
Injection Pressure: 193Mpa
Clamping Unit
Clamping Force: 2680KN
Max mould Opening Stroke: 540mm
Mould Thickness(Min-Max): 230-550mm
Distance Between Tie-Bars: 580× 534mm
Ejection Force: 70KN
Ejector Stroke: 140mm
OthersPump Motor Power: 22KW
Heating capacity of screw cylinder: 15.6KW
Oil tank capacity: 550L
Rated Pressure of Oil pump: 16MPa
Machine Dimensions (L*W*H): 5.7× 1.44× 2.15m
Machine Weight: 8.5T
Mould Orientation Ring Diameter: Φ 160H7mm
Sphere Diameter of Nozzle: SR15mm
