UV Water Ultraviolet Lamp for Water Purifier and Water Dispenser Use
Basic Info.
Model NO.
EW-P-01A
Wavelength
UV-A
Specification
on Requst, from 6w to 125w.
Material
304, 316 Ss
Certification
CE, RoHS
Filter Housing Materials
304, 316 Ss
Quality Level
High
OEM
Yes
Production Time
4 Days
Transport Package
1set/Box
Trademark
EAST WATER
Origin
China
HS Code
8421991000
Production Capacity
500PCS/Day
Product Description

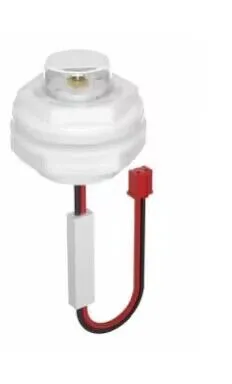

Small flow rate UV water sterilizer Ultraviolet Lamp316SS housings for 6W - 12W and 16W opened in both sides (similar to 4W housings)
Small flow rate UV water sterilizer with PHILPS lamp
8000 hours long life service,
kill bacteria, viruses and other micro-organisms present in water quickly and reliably.
| Specification of ultraviolet water sterilizer assembly | |||||
| Tye | UV 4W | UV 6W | UV 12W | UV 16W | |
| Pure water | 0.056t/h 0.25GPM | 0.11t/h 0.5GPM | 0.22t/h 1GPM | 0.45t/h 2GPM | |
| Tap water | 0.044t/h 0.25GPM | 0.08t/h 0.4GPM | 0.017t/h 0.8GPM | 0.36t/h 1.6GPM | |
| Lamp rated life(hrs) | 8000 | 8000 | 8000 | 8000 | |
| UV dosage( Uw-sec/cm²) | >30000 | >30000 | >30000 | >30000 | |
| Electricity unit | Volts | 110-130 200-240 | 110-130 200-240 | 110-130 200-240 | 110-130 200-240 |
| Hz | 56/60 | 56/60 | 56/60 | 56/60 | |
| Wats | 4W | 4W | 4W | 4W | |
| Lamp failure | LED | LED | LED | LED | LED |
| Warming system | Alarm | Alarm | Alarm | Alarm | Alarm |
| Timer | NO | NO | NO | NO | |
| No.of UV lamp deeded | 1 | 1 | 1 | 1 | |
| Shell material(stainless) | 304# | 304# | 304# | 304# | |
| Inlet and outlet size(inch) | 1/4" | 1/4" | 1/4" | 1/4" | |
| Type of lamo holder | G5 | G5 | G5 | G5 | |
| Max operating pressure | 6kg | 6kg | 6kg | 6kg | |
| UV lamp | HOLLAND | HOLLAND | HOLLAND | HOLLAND | |
