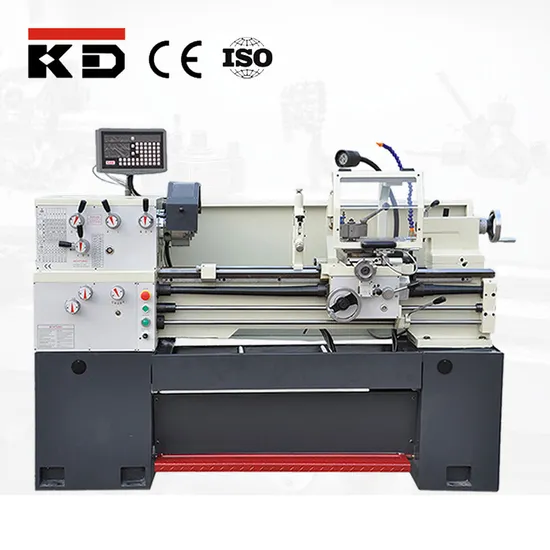

DC1440-K Mini Manual Metal Cutting Lathe Machine
| US$3,000.00-50,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
GH-1440K
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Condition
New
Max Swing Over Bed
356mm
Max Swing Over Carriage
210mm
Distance Between Centers
1000mm
Bed Width
260mm
Spindle Nose
D4
Spindle Bore
40mm
Spindle Speed
1800rpm
Power
2.4kw
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
84581900
Production Capacity
1200/Year
Product Description
PRODUCT SPECIFICATIONS
| MODELS | GH-1440K |
| CAPACITY | |
| Max.swing over bed | Ф356mm (14") |
| Max.swing over carriage | Ф210mm (8-1/5") |
| Max. swing over gap | Ф508mm (20") |
| Width of bed | 260mm (10-1/5") |
| Distance between centers | 1000(40") |
| SPINDLE | |
| Spindle bore | Ф40mm (1-1/2") |
| Taper bore of spindle | M.T.NO.5 |
| Steps of spindle speed | 12 |
| Range of spindle speed | 40~1800rpm |
| Spindle nose | D4 |
| FEED | |
| Range of longitudinal feeds | 0.043-0.653 (0.0012″~0.0294″) |
| Range of cross feeds | 0.024-0.359 (0.0004″~0.0103″) |
| THREADING | |
| Metric threads | 0.4-7mm/ 37kinds |
| | 0.45-7.5mm/ 23kinds |
| Whit-worth threads | 4-56TPI/ 28kinds |
| | 4-112TPI/ 40kinds |
| LEADSCREW | |
| Diameter of leadscrew | Ф22mm (7/8") |
| Pitch threads of leadscrew | 4mm or 8TPI |
| TAILSTOCK | |
| Travel of tailstock quill | 120mm (4-3/4") |
| Diameter of tailstock quill | Ф45mm (1-25/32") |
| Taper bore of tailstock quill | M.T.NO.3 |
| POWER | |
| Power of main motor | 2.4kw(3HP) 3Ph |
| Coolant pump motor power | 0.04kw(0.055HP) |
| OTHERS | |
| Dimension(L×W×H) | 1900×710×1170mm |
| Net weight | 1250kg (2750lbs) |
| Gross weight | 1380kg (3040lbs) |
