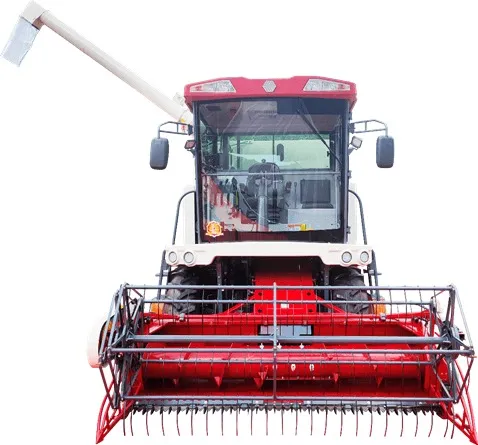

Advanced Design Corn Grain Rice Soybean Agriculture Combine Harvester
| US$21,500.00-25,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
4LZ-9
Application
Rice, Wheat, Rapeseed/Mustard
Power Source
Diesel
Harvest method
Cutting
Drive Type
Vee belt
Transmission
Hard Shaft
Portable Harvester Type
Side Hanging Type
Certification
ISO9001:2008, CE
Color
Red
Condition
New
Application Field
Agriculture
Warranty
1 Year
Certificate
CE,ISO
Video Outgoing-Inspection
Not Available
Transport Package
Nude Packing
Specification
22CBM
Trademark
WORLD
Origin
China
Production Capacity
10000pieces/Year
Product Description
Feature:It adopts advanced longitudinal axial flow structure, the drum length is 2.52m, and with 45ccHST, it is more labor-saving and improves the working efficiency. The threshing drum can be adjusted in three gears, and one machine can be used for multiple purposes. Luxury air-conditioned cab, high driving comfort.
| Specification | ||||
| Model | 4LZ-9 | |||
| Type | Wheeled Self-propelled Whole-feeding | |||
| Dimension (Operation) | Length(mm) | 6550 | ||
| Width(mm) | 3200 | |||
| Height(mm) | 3350 | |||
| Weight(kg) | 5300 | |||
| Engine | Model | Yuchai YC4DK150-T301 | ||
| Power(HP) | 160 | |||
| RPM(r/min) | 2600 | |||
| Fuel consumption(kg/hm^2) | 15~40 | |||
| Fuel Capacity(L) | 210 | |||
| Gearbox | Gearbox Box | |||
| HST | HST 45cc | |||
| Chassis | Tyre size | Front tyre 15-24 | ||
| Rear tire 10/75-15.3 | ||||
| Track Gauge(mm) | Front 1900 | |||
| Rear 1700 | ||||
| Wheel Base(mm) | 2960 | |||
| Ground Clearance(mm) | 350 | |||
| Harvesting | Cutting Width(mm) | 2750 | ||
| Feeding Capacity (kg/s) | 9.0 | |||
| Cutting Bar Lift | Hydraulic Control | |||
| Threshing | Type | Axial Flow Type with Beat Bars | ||
| Threshing Cylinder (mm) | φ700*2520 | |||
| Filtrate Type | Vibrating Sieves+ Centrifugal Fan | |||
| Discharging | Grain Tank Type | Mechanical type | ||
| Grain Tank | 2.8m³ | |||
| Work efficiency(hm^2/h) | 0.2-1.4 | |||
| Crops | Rice, Wheat, Soybean,corn | |||
