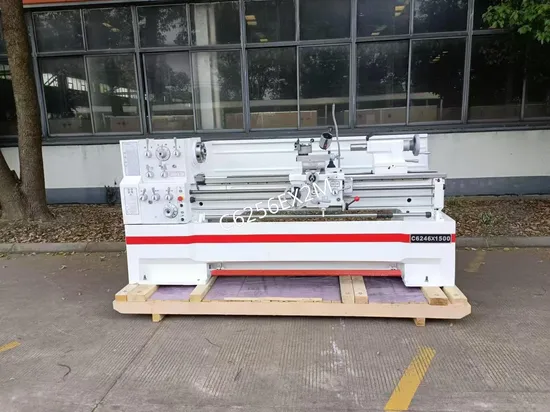

C6256ex2m Common Horizontal Lathe 105mm Large Diameter Spindle Hole
| US$15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
C6256EX2M
Type
Horizontal Lathe
Processing Accessory
Manual
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Condition
New
Color1
According to Customer
Other Length
1.5m, 2m,3m
Logo
Can Be OEM
Standard Color
Upper White,Down Black
Optional Color
Upper White, Down Blue
Transport Package
Wood Box
Specification
1.5m
Origin
Dezhou
HS Code
8458190000
Production Capacity
5000
Product Description
C6256E big spindle hole lathe
UNIVERSAL HORIZONTAL LATHE
Product Description
SIMPLE INTRODUCTION
C62 series is horizontal lathe used for machining various kinds of steel parts. It is specially suitable for mass production of machining inside and outside cylinder surface, end surface, metric and inch thread etc.
Product Parameters
2.PARAMETER
| SPECIFICATION | MODELS | ||||
| C6251 1000,1500,2000,3000 | C6256 1000,1500,2000,3000 | C6256E( BIG HOLE 1000,1500,2000,3000 | |||
| CAPACITY | |||||
| Swing over red | 510mm(20") | 560mm(22") | 560mm(22") | ||
| Swing Over cross slide | 305mm(12") | 355mm(14") | 355mm(14") | ||
| Swing of gap | 735mm(28-7/8") | 785mm(30-7/8") | 785mm(30-7/8") | ||
| Length of gap | 170mm(6-11/16") | ||||
| Width of bed | 350mm(13-3/4") | ||||
| HEADSTOCK | |||||
| Spindle nose | D1-8 | ||||
| Spindle bore | 80mm(3-1/8") | 105mm(4-1/8") | |||
| Taper of spindle bore | No.7Morse | 113(1:20) | |||
| Range of spindle speed | 12changes25-2000r/min | 12changes 25-1500r/min | |||
| FEEDS AND THREADS | |||||
| of compound rest | 130mm(5-1/8") | ||||
| of cross slide | 316mm(12-15/16") | ||||
| Leadscrew pitch | 6mmOr4T.P.L | ||||
| Max.section of tool | 25×25mm(1×1") | ||||
| Longitudinal feeds range | 35kinds0.059-1.646mm/rev(0.0022"-0.0612"/rev) | ||||
| Cross feeds range | 35kinds0.020-0.573mm(0.00048"-0.01354") | ||||
| Metric threads range | 47kinds0.2-14mm | 41kinds 0.1-14mm | |||
| Inch threads range | 60kinds2-112T.P.L | ||||
| Diametrical pitches range | 50kinds4-112D.P. | ||||
| Module pitches range | 34kinds0.1-7M.P. | ||||
| TALLSTOCK | |||||
| Dia of tailstock sleeve | 75mm(3") | ||||
| Travel of tailstock sleeve | 180mm(7") | ||||
| Morse taper of tailstock sleeve | No.5Morse | ||||
| MOTOR | |||||
| Power of main motor | 7.5kw(10HP)3PH | ||||
| Power of coolant pump | 0.1kw(1/8HP),3PH | ||||
| DIMENSION AND WEIGHT | |||||
| Overall dimension(L×W×H)mm | 2390x1150x1430mm(1m) 2840x1150x1430mm(1.5m) 3340x1150x1430mm(2m) 4340x1150x1430mm(3m) | 2390x1150x1460mm(1m) 2840x1150x1460mm(1.5m) 3340x1150x1460mm(2m) 4340x1150x1460mm(3m) | |||
| Packing size(L×W×H)mm | 2450x1190x1740mm(1m) 2900x1190x1740mm(1.5m) 3400x1190x1740mm(2m) 4400x1190x1740mm(3m) | 2450x1190x1740mm(1m) 2900x1190x1740mm(1.5m) 3400x1190x1740mm(2m) 4400x1190x1740mm(3m) | |||
| Net weight | 2070kg(1m) 2160kg(1.5m) 2435kg(2m) 2805kg(3m) | 2195kg(1m) 2285kg(1.5m) 2560kg(2m) 2930kg(3m) | |||
| Gross weight | 2460kg(1m) 2550kg(1.5m) 2840kg(2m) 3270kg(3m) | 2600kg(1m) 2690kg(1.5m) 2980kg(2m) 3410kg(3m) | |||
3.STANDARD ACCESSORIES
| No | C6251 (Standard Accessories) | C6256(C6256E) (Standard Accessories) | Quantity |
| 1 | jaws self centering chuck Φ315MM | 3-jaws self centering chuck Φ315MM | 1 Pcs |
| 2 | 4-jaws independent Φ35 0MM 4 | 4-jaws independent Φ350MM 4 | 1 Pcs |
| 3 | Foot brake | Foot brake | 1 Set |
| 5 | Face Plate | Face Plate | 1 Pcs |
| 6 | Auto lubrication system | Auto lubrication system | 1 Pcs |
| 7 | Full length splash guard | Full length splash guard | 1 Pcs |
| 8 | Operational Manual,tool box , | Operational Manual,tool box , | 1 Pcs |
