US$999.60-5,632.30
|
1 Piece
(MOQ)
|
Basic Info.
Max.Capacity
100-200 L/min
Impeller Number
Single-Stage Pump
Working Pressure
Low Pressure Pump
Influent Type of Impeller
Single Suction Pump
Position of Pump Shaft
Horizontal Pump
Pump Casing Combined
Horizontal Split Pumps
Mounting Height
Suction Centrifugal
Usage
Pump, Pumps, Circulating Pump, Marine Pump
Pump Material
Cast Iron or Stainless Steel
Impeller Material
Cast Iron or Stainless Steel
Seal Type
Mechanical Seal or Packing Seal
Coupling
Directly Coupling or Belt Driven
Pump Accessories
Trailer, Silence-Box, etc
Coupling Type
Pin Pin Coupling
Motor Type
Explosion-Proof Motor or General Motor
Rotation Speed
1450/1750/2900/3500rpm
Pump Spare Parts
Pump Casing, Impeller, Seal, etc
Transport Package
Standard Plywood Case
Production Capacity
100 Units Per Months
Packaging & Delivery
Package Size
120.00cm * 100.00cm * 100.00cm
Package Gross Weight
500.000kg
Product Description

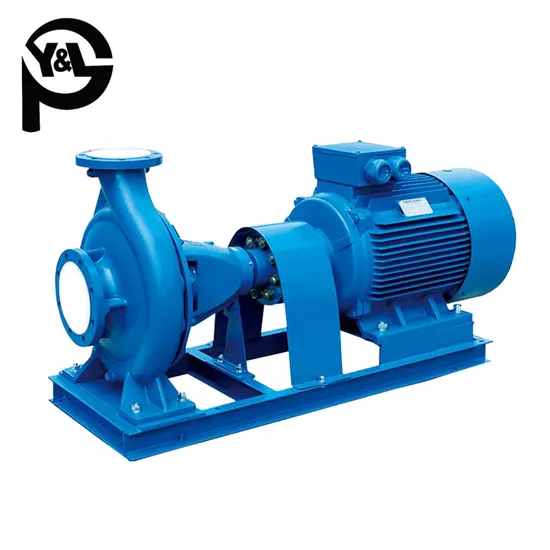

Electric Motor Horizontal End Suction Centrifugal Marine Drainage Pump Introduction
DA series centrifugal pump is specialized in pumping water, liquid, chemical substances, etc. The rotation speed is 1450rpm, 1750rpm, 2900rpm, 3500rpm for optional. This water pump can be widely used in farmland irrigation, irrigation system, irrigatin equipment.
Structure Chart (Mechanical Seal)
Application
1. Constructional Engineering: clear water transportation, pressurization system, air condition water circulation system, fire extinguishing system, swimming pool and water circulation system.
2. Industry: circulating cooling system, process water for paper-making and paper pulp, steel production, shipbuilding, sea transportation and other manufacturing industry.
3. Mining Industry: water supply, mine drainage, generating station, etc.
4. Others: Municipal water supply, marine drainage,agricultural irrigation and some others.
Technical Parameters (More models pls do not hesitate to contact us!)
Model | Flow Rate | Head | Rotation Speed | Shaft Power | Efficiency | Impeller Dia. | Cavitation |
m3/h | L/s | m | r/min | kw | % | mm | m |
DAZ32/16-00754 | 5.2 | 1.45 | 10.6 | 1450 | 0.32 | 47.5 | 174 | 1.8 |
8.7 | 2.41 | 10.1 | 0.43 | 55 | 2 |
10.4 | 2.89 | 9.5 | 0.48 | 56 | 2.2 |
DAZ32/16-00554 | 4.9 | 1.37 | 9.5 | 1450 | 0.28 | 45 | 165 | 1.8 |
8.2 | 2.29 | 9.0 | 0.37 | 55 | 2 |
9.9 | 2.74 | 8.5 | 0.41 | 55.5 | 2.2 |
DAZ32/16-00554 | 4.6 | 1.29 | 8.4 | 1450 | 0.24 | 44 | 155 | 1.8 |
7.7 | 2.15 | 7.8 | 0.31 | 53.5 | 2 |
9.3 | 2.58 | 7.3 | 0.34 | 54 | 2.2 |
DAZ32/16-00554 | 4.3 | 1.21 | 7.4 | 1450 | 0.21 | 42 | 145 | 1.8 |
7.2 | 2.01 | 6.8 | 0.26 | 51.5 | 2 |
8.7 | 2.41 | 6.4 | 0.29 | 52 | 2.2 |
DAZ32/16-00554 | 4.0 | 1.12 | 6.4 | 1450 | 0.17 | 41.5 | 135 | 1.8 |
6.7 | 1.87 | 5.9 | 0.22 | 49.5 | 2 |
8.1 | 2.24 | 5.5 | 0.24 | 50 | 2.2 |
DAZ32/16-00554 | 3.7 | 1.04 | 5.5 | 1450 | 0.14 | 40 | 125 | 1.8 |
6.2 | 1.73 | 5.1 | 0.18 | 47 | 2 |
7.5 | 2.08 | 4.7 | 0.20 | 49 | 2.2 |
DAZ32/16-05502 | 10.8 | 3.00 | 42.0 | 2900 | 2.66 | 46.5 | 174 | 1.9 |
18.0 | 5.00 | 39.0 | 3.41 | 56 | 2.2 |
21.6 | 6.00 | 36.5 | 3.79 | 56.7 | 3.7 |
DAZ32/16-04002 | 10.2 | 2.84 | 37.0 | 2900 | 2.27 | 45.5 | 165 | 1.9 |
17.1 | 4.74 | 34.6 | 2.90 | 55.5 | 2.2 |
20.5 | 5.69 | 32.1 | 3.18 | 56.3 | 3.7 |
DAZ32/16-04002 | 9.6 | 2.67 | 32.3 | 2900 | 1.92 | 44 | 155 | 1.9 |
16.0 | 4.45 | 30.5 | 2.44 | 54.5 | 2.2 |
19.2 | 5.34 | 28.7 | 2.68 | 56 | 3.7 |
DAZ32/16-03002 | 9.0 | 2.50 | 28.3 | 2900 | 1.61 | 43 | 145 | 1.9 |
15.0 | 4.17 | 26.5 | 2.04 | 53 | 2.2 |
18.0 | 5.00 | 25.0 | 2.25 | 54.5 | 3.7 |
DAZ32/16-02202 | 8.4 | 2.33 | 24.6 | 2900 | 1.40 | 40 | 135 | 1.9 |
14.0 | 3.88 | 22.7 | 1.69 | 51 | 2.2 |
16.8 | 4.66 | 21.4 | 1.86 | 52.5 | 3.7 |
DAZ32/16-02202 | 7.8 | 2.16 | 20.5 | 2900 | 1.11 | 39 | 125 | 1.9 |
12.9 | 3.59 | 19.2 | 1.39 | 48.5 | 2.2 |
15.5 | 4.31 | 18.0 | 1.49 | 51 | 3.7 |
DAZ32/16-01104 | 5.2 | 1.75 | 15.4 | 1750 | 0.46 | 47.5 | 174 | 1.8 |
8.7 | 2.91 | 14.7 | 0.63 | 55 | 2 |
10.4 | 3.49 | 13.8 | 0.70 | 56 | 2.2 |
DAZ32/16-00754 | 4.9 | 1.65 | 13.9 | 1750 | 0.41 | 45 | 165 | 1.8 |
8.2 | 2.76 | 13.1 | 0.53 | 55 | 2 |
9.9 | 3.31 | 12.4 | 0.60 | 55.5 | 2.2 |
DAZ32/16-00754 | 4.6 | 1.55 | 12.3 | 1750 | 0.35 | 44 | 155 | 1.8 |
7.7 | 2.59 | 11.4 | 0.45 | 53.5 | 2 |
9.3 | 3.11 | 10.6 | 0.50 | 54 | 2.2 |
DAZ32/16-00554 | 4.3 | 1.45 | 10.7 | 1750 | 0.30 | 42 | 145 | 1.8 |
7.2 | 2.42 | 9.9 | 0.38 | 51.5 | 2 |
8.7 | 2.91 | 9.3 | 0.42 | 52 | 2.2 |
DAZ32/16-00554 | 4.0 | 1.35 | 9.3 | 1750 | 0.25 | 41.5 | 135 | 1.8 |
6.7 | 2.26 | 8.6 | 0.32 | 49.5 | 2 |
8.1 | 2.71 | 8.1 | 0.35 | 50 | 2.2 |
DAZ32/16-00554 | 3.7 | 1.25 | 8.0 | 1750 | 0.20 | 40 | 125 | 1.8 |
6.2 | 2.09 | 7.4 | 0.27 | 47 | 2 |
7.5 | 2.51 | 6.9 | 0.29 | 49 | 2.2 |
DAZ32/16-07502 | 13.0 | 3.62 | 61.2 | 3500 | 4.67 | 46.5 | 174 | 1.9 |
21.7 | 6.03 | 56.8 | 6.00 | 56 | 2.2 |
26.1 | 7.24 | 53.2 | 6.65 | 56.7 | 3.7 |
DAZ32/16-07502 | 12.4 | 3.43 | 53.9 | 3500 | 3.99 | 45.5 | 165 | 1.9 |
20.6 | 5.72 | 50.4 | 5.09 | 55.5 | 2.2 |
24.7 | 6.87 | 46.8 | 5.59 | 56.3 | 3.7 |
DAZ32/16-05502 | 11.6 | 3.23 | 47.0 | 3500 | 3.38 | 44 | 155 | 1.9 |
19.4 | 5.38 | 44.4 | 4.29 | 54.5 | 2.2 |
23.2 | 6.45 | 41.8 | 4.72 | 56 | 3.7 |
DAZ32/16-05502 | 10.9 | 3.02 | 41.2 | 3500 | 2.83 | 43 | 145 | 1.9 |
18.1 | 5.03 | 38.6 | 3.59 | 53 | 2.2 |
21.7 | 6.03 | 36.4 | 3.95 | 54.5 | 3.7 |
DAZ32/16-04002 | 10.1 | 2.81 | 35.8 | 3500 | 2.47 | 40 | 135 | 1.9 |
16.9 | 4.68 | 33.1 | 2.97 | 51 | 2.2 |
20.2 | 5.62 | 31.2 | 3.27 | 52.5 | 3.7 |
DAZ32/16-04002 | 9.4 | 2.60 | 29.9 | 3500 | 1.95 | 39 | 125 | 1.9 |
15.6 | 4.34 | 28.0 | 2.45 | 48.5 | 2.2 |
18.7 | 5.20 | 26.2 | 2.62 | 51 | 3.7 |
Our Service
1.Delivery: Delivery time will be on time as the contact. Usually, the delivery time is of centrifugal pump is for 15-25 working days.
2.Warranty: 1 year for the pump body, 3 months for the main working parts.
3.Package:According to your quantity, we use plywood case which is durable for ocean transport.
4.Shipping: By Sea and By Air
5.Payment: We are accept T/T,L/C,West Union and so on.
6.Pre-sales Service:According to your requirement, we will give your our profession advice of pump solution.
7.On-sales Service:We will clearly show you everything in fact when you place an order with us. We will takes photos or videos to show you order production situation.
8.After-sales Service: We will full report you the production progress and plan. Meanwhile, we will follow up the pump working conditions per three months when the pumps put into use, and can send the spare parts to you within one week if you need.
