ASTM D1388 High Quality Fabric Stiffness Tester Heart Loop Tester

ASTM D1388 High Quality Fabric Stiffness Tester Heart Loop Tester

Product Description

Product Description
Product Description

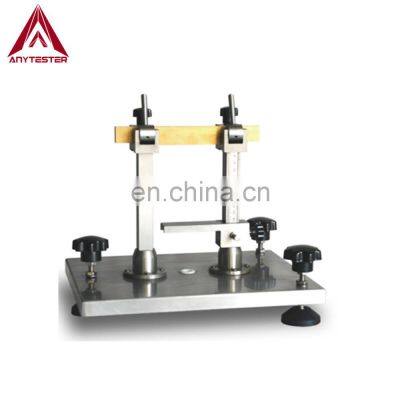

HY0270B Fabric Stiffness Tester (Heart Loop Tester) is used to determine the stiffness properties of fabric. It is specially suitable for softer fabric and fabric that easy to roll.Test method:A strip of fabric is formed into a heart-shaped loop. The length of the loop is measured when it is hanging vertically under its own mass. From this measured length, the bending length and flexural rigidity are calculated.
Standard
ASTM D1388 (method B)
JIS L1096 (8.21.4 method D)
GB/T 18318.2
Note: For more standards, please contact us



Specification
Model
HY0270B
Measuring range
34~130mm
Brass plate for clamping sample
Height: 25mm, thickness: 3mm
Sample length
200mm
(150mm or 250mm is also suitable)
Sample width
Not more than 75mm
Dimensions
320×250×290mm (L×W×H)

Details & Features
★ Stainless steel frame, nice and durable. ★ Equips with an air level.
★ Simple structure, easy to operate.
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging


Packaging Details
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term

T/T
EXW

30% T/T in advance, paid the balance before shipment


FOB



CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L


CIF


L/C
L/C amount above 50,000 usd, we can accept L/C at sight


West Union

Amount lower than 5000usd


West Union


Delivery Time
7~10days after receiving payment for one container
