US$450.00-689.00
|
50 Square Meters
(MOQ)
|
Basic Info.
Model NO.
SMU-36.3F/40.6F/SMR-36.3F/40.6F
Structure
Outside to Inside
Application
Reuse or Recycling
Material
PVDF Hollow Fiber
Transport Package
Standard Export Woonden Cases
Specification
824mm*2200mm*46mm
Trademark
SHUIYI or Customized
Production Capacity
10000000m2/ Year
Product Description
Introduction

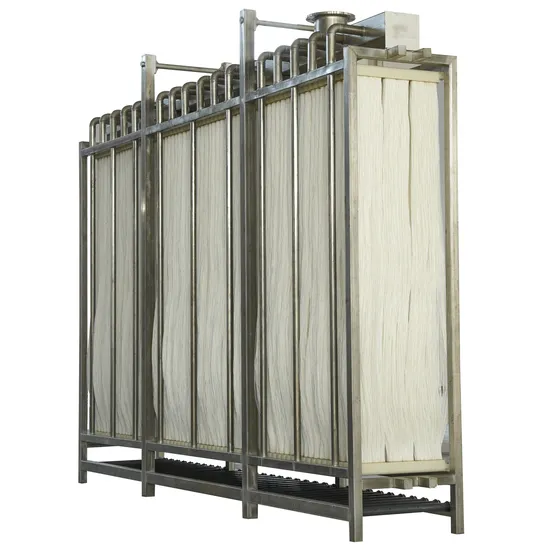

SHUIYI latest Slufri® series MBR membrane products adopts lining reinforced PVDF hollow fiber membrane of new formulas and new processes. The operating flux, anti-fouling ability and service life have reached the international leading level. It can realized low-cost and high-reliability treatment in many applications such as reclaimed water reuse and various industrial wastewater treatment.
Features Lower energy consumption and higher efficiency; Higher mechanical strength, slower flux decline, longer service life; Standardized modularization design for easy installment and replacement; Stable and reliable water production; Slower contamination speed, longer clean cycle.
Specifications
Membrane Specifications | Model | SMU-30E | SMU-18E | SMU-18M | SMU-30A |
Material | Support layer: PET Separate layer: PVDF |
Active Membrane Area | 30 m2 | 18 m2 | 18 m2 | 30 m2 |
Nominal Pore Size | 0.1 μm |
Hollow Fiber Inner/Outer Diameter | 2.05/2.6 mm |
Filter Type | Reinforced outside-in membrane |
Membrane Module Specifications | Model Dimensions | 1250×2000×30 mm | 1250×1300×30 mm | 572×1560×46 | 824×2200×46 |
Outlet Connection Size | Ф24 | Ф24 | Ф27 | DN32 |
Material | End | ABS |
Sealing Material | Epoxy resin/Polyurethane |
Center Pole | SUS304 |
Weight | Membrane Weight (Dry) | 15 kg | 12 kg | 6 kg | 12 kg |
Membrane Weight (Wet) | 30 kg | 20 kg | 9 kg | 25 kg |
Operation Conditions | Temperature | 5~40ºC |
SDI15 | 5000-10000 mg/L |
pH | 2-10 |
Operating Flux (LMH) | 10-30 |
Backwash Flux (LMH) | 30-50 |
Recommended Transmembrane Pressure (TMP) | 0-35 kPa |
Maximum Backwash Pressure | 70 kPa |
Aeration Intensity | 60-120 Nm3/h·m2 shadow area |
Chemical Cleaning pH Range | 1-11 |
Quality of Permeate Water | Turbidity | ≤ 0.5 NTU |
SS | ≤ 2 mg/L |
PS. The design flux and backwash flux depend on the operation and maintenance of the entire system
Application: Municipal water supply Industrial water purification Municipal waste water treatment Industrial waste water treatment Landfill leachate advanced treatment Reclaimed water reuse Pretreatment of RO system
