US$2.00-9.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Point to Point Control
Numerical Control
CNC/MNC
Processing Precision
0.015mm
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Standard
DIN6499b Er Collet
Accuracy
0.015mm Er Collets
Model
Full Types of Er Collets
Inspection
100% Collet Inspection
Transport Package
Plastic Box
Specification
ER25 collet
Origin
Shandong, China (Mainland)
Production Capacity
1, 000, 000 Pieces/Year
Product Description

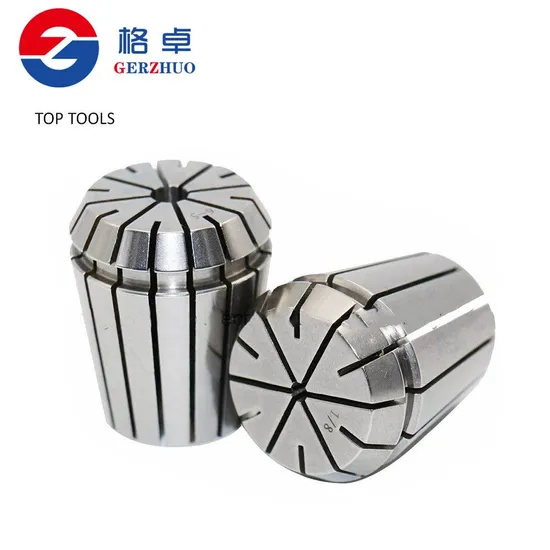

High Accuracy CNC Machine Tool Er25 Collet Made in China
1, Runout of our ER collet are within 0.005mm-0.015mmm
2, ER8, ER11, ER16, ER20, ER25, ER32, ER40 and ER50 collet
3, Made of high quality steel:65Mn
4, Packing:inner packing is plastic or paper box,the outer packing is cartons.
5, Supply two kinds of common accuracy: 0.008mm and 0.015mm. The highest accuracy is up to 0.005mm.
6, Inspection:100% collet inspection.
Usage
Used for boring, milling, drilling,tapping, grinding and engraving operation etc.
Technical specifications
Model No. | dH7 | D | D1 | D2 | L | L1 | L2 | L3 | Callapsible capacity |
ER8 | ≥1.0-5.0 | 8 | 8.45 | 6.5 | 13.5 | 2.98 | 1.5 | 1.2 | 0.5 |
ER11 | >1.0-7.0 | 11 | 11.5 | 9.5 | 18.0 | 3.8 | 2.5 | 2.0 | 0.5 |
ER16 | ≥1.0-2.5 | 16 | 17 | 13.8 | 27.5 | 6.26 | 4.0 | 2.7 | 0.5 |
>2.5-10.0 | 16 | 17 | 13.8 | 27.5 | 6.26 | 4.0 | 2.7 | 1.0 |
ER20 | ≥1.0-2.5 | 20 | 21 | 17.4 | 31.5 | 6.36 | 4.8 | 2.8 | 0.5 |
>2.5-13.0 | 20 | 21 | 17.4 | 31.5 | 6.36 | 4.8 | 2.8 | 1.0 |
ER25 | ≥1.0-2.5 | 25 | 26 | 22.0 | 34.0 | 6.66 | 5.0 | 3.1 | 0.5 |
>2.5-16.0 | 25 | 26 | 22.0 | 34.0 | 6.66 | 5.0 | 3.1 | 1.0 |
ER32 | ≥2.0-2.5 | 32 | 33 | 29.2 | 40.0 | 7.16 | 5.5 | 3.6 | 0.5 |
>2.5-20.0 | 32 | 33 | 29.2 | 40.0 | 7.16 | 5.5 | 3.6 | 1.0 |
ER40 | ≥3.0-26.0 | 40 | 41 | 36.2 | 46.0 | 7.66 | 7.0 | 4.1 | 1.0 |
ER50 | ≥6.0-10.0 | 50 | 52 | 46.0 | 60.0 | 12.6 | 8.5 | 5.5 | 1.0 |
>10.0-34.0 | 50 | 52 | 46.0 | 60.0 | 12.6 | 8.5 | 5.5 | 1.2 |
ER collet set specification
Model | Quantity(Pcs) | Dimension |
ER8 | 9 | 1-5mm(1,1.5,2,2.5,3,3.5,4,4.5,5mm) |
ER11 | 5 | 3-7mm(3,4,5,6,7mm), if 7pcs, include 1&2mm |
ER16 | 8 | 3-10mm(3,4,5,6,7,8,9,10mm) |
ER20 | 6 | 3-13mm(3,4,6,8,10,13mm) |
11 | 3-13mm(3,4,5,6,7,8,9,10,11,12,13mm) |
ER25 | 7 | 4-16mm(4,6,8,10,12,14,16mm) |
15 | 2-16m(2,3,4,5,6,7,8,9,10,11,12,13,14,15,16mm) |
ER32 | 6 | 6-20mm(6,8,10,12,16,20mm) |
11 | 4-20mm(4,5,6,8,10,12,14,15,16,18,20mm) |
18 | 3-20mm(3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20mm) |
ER40 | 7 | 6-25mm(6,8,10,12,16,20,25mm) |
15 | 4-26mm(4,5,6,8,10,12,14,15,16,18,20,22,24,25,26mm) |
23 | 4-26mm(4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26mm) |
Collets ER and ER-UP
Assembling Collet
Insert groove of collet into eccentric ring of the clamping nut at the mark on the bottom of the nut. Push collet in the direction of the arrow until it clicks in place. Screw nut with collet onto toolholder. We recommend tightening the nut with a torque wrench.
Disassembling Collet
After the nut is unscrewed from the toolholder, press on the face of the collet while simultaneously pushing sideways on the back of the collet opposite the mark until it disengages from the clamping nut.
Production process
Delivering and packaging
Paper box or Plastic box/PCS, or as customer's requirement
About 7-20 days
Our service
1.Quality.
2.Large order fast producing ability.
3.True manufacturer directly sales.
4.Good communication satisfy you at the best level.
5.Cooperative spirit cares your marketing strategy.
6.Flexible solutions concerning lower your cost.
7.Non-stop improving on our major, quality and service.
Company information
YUCHENG GERZHUO MECHATRONICS TECHNOLOGY Co., Ltd is a competitive private enterprise engaged in production of machine tool parts. Machine tool parts includes varied of series, and full range specification, specialized in advantage of ER collet, tool holders and accessories. We have established long-term friendly cooperation relationships with numerous customers all over the world as following: USA, Sweden, Russia, Spain, France, Italy, Britain, Germany, South-east countries, Latin America countries, Africa countries and so on. We guarantee the security and quality of our product by optimized and centralized product selections, and have built strong partnerships with well-known companies in the industry in China.
