Cbb60 Capacitor Motor 15 UF CE VDE UL Approval

Cbb60 Capacitor Motor 15 UF CE VDE UL Approval

US$0.874-1.12 500 Pieces (MOQ)

Basic Info.

Model NO.
Cbb60
Packaging Type
Through Hole
Capacitance
1-100UF
Structure
Fixed Capacitor
Manufacturing Material
Polypropylene
Electrolyte
Zinc Aluminum Composite Film
Usage
for Starting or Running of Water Pump Motor
Tuning
Film Capacitor
Filter
Film Capacitor
Rated Voltage
250V/300V/370/400V/450V/500V
Class of Operation
Class C(B)
Class of Safety Protecition
P0
Climatic Category
40/85/21
Capacitance Tolerance
±5%±10%±15%
Between Teminals Volatge Proof
2s
Maximum Pemissible Voltage
1.1un
Maximum Permissible Current
1.3ln
Insulation Resistance
≥3000s(20ºC,100V,1min)
Transport Package
Palletization
Specification
Dry capacitor
Trademark
OEM
Origin
China
HS Code
8532250000
Production Capacity
5000000/Year

Packaging & Delivery

Package Size
36.00cm * 37.00cm * 40.00cm
Package Gross Weight
15.000kg

Product Description

Product Description

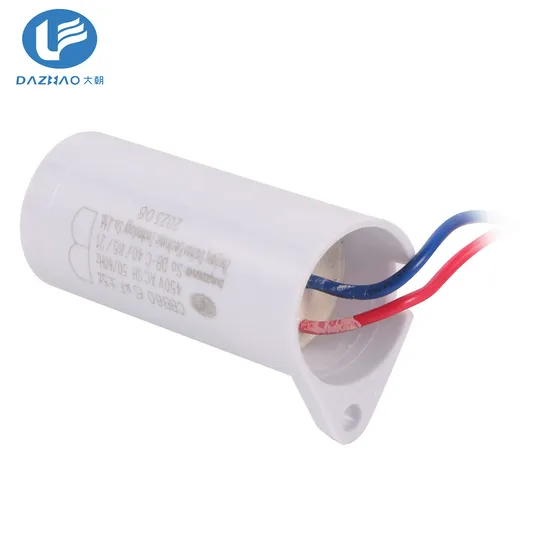

Cbb60Suitable for starting or running of AC motor water pump250/450V

Characteristics and purpose
The capacitor has the advantages of low loss factor, high insulation resistance, good self-healing, strong shock current resistance, strong overload current capacity, stable electrical performance, stable flow current, and strong bearing capacity. It is used for washing machines and separate horsepower motors, pumps and is conducive to the start and operation of motors. Detailed Photos
Rated Capacity
-RC
(μF)
Rated Voltage
-RV
(V)
Frequency
(Hz)
Protection Class
-IP
Dimensions (mm)
D1±0.1 D2±0.2 H±1
4+3 450 50 S0 50 35.4 75
5+3 450 50 S0 50 35.4 75
6+3 450 50 S0 50 35.4 75
6+4 450 50 S0 50 35.4 75
7+3.5 450 50 S0 50 35.4 75
7+4 450 50 S0 50 35.4 75
8+4 450 50 S0 50 35.4 75
9+4 450 50 S0 50 35.4 75
10+3 450 50 S0 50 35.4 75
9+5 450 50 S0 50 35.4 75
10+4 450 50 S0 50 35.4 75
10+5 450 50 S0 50 35.4 75
11+4 450 50 S0 50 35.4 75
11+4.5 450 50 S0 50 35.4 75
11+5 450 50 S0 50 35.4 75
12+4 450 50 S0 50 35.4 75
12+5 450 50 S0 50 35.4 75
12+6 450 50 S0 50 35.4 75
13+4 450 50 S0 50 35.4 75
13+6 450 50 S0 50 35.4 75
13+7 450 50 S0 50 35.4 75
13+8 450 50 S0 50 35.4 75
14+4 450 50 S0 50 35.4 75
14+5 450 50 S0 50 35.4 75
14+6 450 50 S0 50 39.2 85
15+5 450 50 S0 50 39.2 85
15+6 450 50 S0 50 39.2 85
15+7 450 50 S0 50 39.2 85
Rated Capacity
-RC
(μF)
Rated Voltage
-RV
(V)
Frequency
(Hz)
Protection Class
-IP
Dimensions (mm)
D1±0.1 D2±0.2 H±1
23+9 250 50 S0 50 41.4 85
30+12 250 50 S0 50 41.4 85
30+14 250 50 S0 50 41.4 85
30+12 250 50 S0 50 41.4 85
30+15 250 50 S0 50 41.4 85
30+16 250 50 S0 50 41.4 85
34+14 250 50 S0 50 41.4 85
35+14 250 50 S0 50 41.4 85
35+16.5 250 50 S0 50 41.4 85
40+14 250 50 S0 50 41.4 85
40+15 250 50 S0 50 41.4 85
38+18 250 50 S0 50 41.4 85
39+16 250 50 S0 50 41.4 85
42+15 250 50 S0 50 45 100
44+16.5 250 50 S0 50 45 100
48+16.5 250 50 S0 50 45 100
48+18 250 50 S0 50 45 100
52+17 250 50 S0 50 45 100
52+26 250 50 S0 50 45 100
Remarks: Other capacities, and sizes can be negotiated according to customer needs.

FAQ
We understands your general concerns. Check the Q&A, which will first help you save time and worries. If your question is not listed, please contact us and we will be happy to help you.
Can We capacitors be used in AC and DC circuits?
Generally speaking, our capacitors can be applied to both AC and DC circuits. However, most of our products are used for AC circuits.
Does We capacitor comply with EU CE and RoHS products?
yes. All our capacitors meet CE, VDE and RoHS standards.
Can I print my brand on the capacitor?
Absolutely. We has OEM and ODM capabilities. You are free to choose custom service or our regular high standard capacitors.
How long does it take to quote?
In most cases, your inquiry will be answered within 24 hours. Please be assured that we will take your inquiry seriously.
May I have a sample?
of course. We will provide sufficient samples for your test free of charge. However, freight is not included.
