High Quality Elastic Material Testing Machine Made in China

Product Description

Product Description

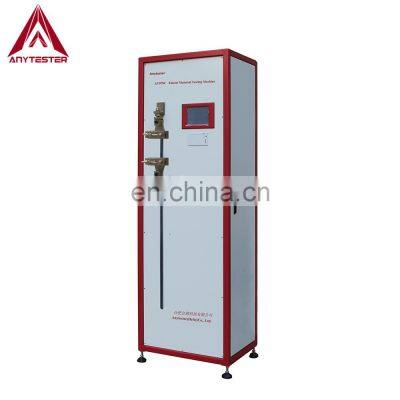

Product DescriptionAT078E Elastic Material Testing Machine is applicable for the determination of force at specific elongation, elongation at specific force, fabric elasticity and recover and plastic deformation of elastic materials, such as, spandex, spandex cored line, elastic cord, elastic ribbon, hosiery and knitted underwears. It adopts 32-bit single-chip microcomputer control with full Chinese menu display and operation. The test result includes data report, curve, graphic and form, storable and printable. StandardGB/T 3916FZ/T 70006, FZ/T 50006FZ/T 5007, FZ/T 73001SpecificationModelAT078EForce measuring range5000cNForce resolution0.1cNForce accuracy±1% with 2%~100% of load cellLoad resolution1/60000Load accuracy≤±1%F.SDrawing speed50~1000mm/min, randomly settableReturn speed50~1000mm/min, randomly settableExtension resolution0.01mmMax. extension800mm (not including clamp)Details & Features1. Touch screen and large LCD display of all parameters and data2. Be able to delete data of any test and test result can be exported to Excel document, convenient to connect with the manage software of the enterprise;3. Analysis functions: breaking point, rupture point, stress point, yield point, initial modulus, elastic deformation and plastic deformation;4. Safety and protection measures: limits, over-load protection, negative force protection, over-current and over-voltage protection;5. Force calibration with digital code; 6. Unique double control technologies: controlling by main machine or PC, convenient to test and with colorful test results (data report, curve, graphic and report form);7. Standard modulus design, convenient to maintain and update;8. With build-in mini printer, easy to output test report.Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
