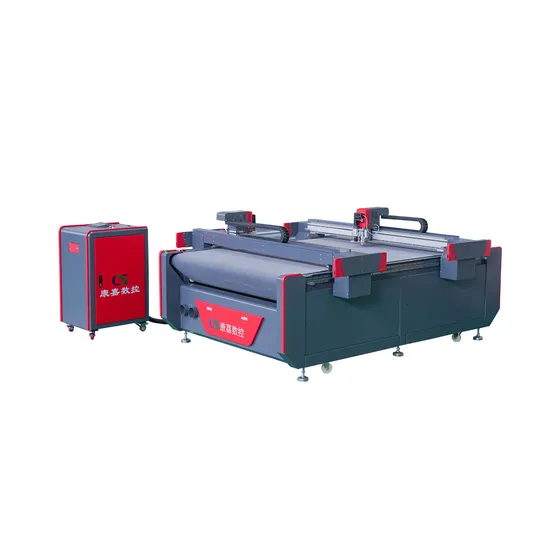

CNC Round Knife Fabric Cutting Machine Oscillating Knife Leather Cutter Factory Price

CNC Round Knife Fabric Cutting Machine Oscillating Knife Leather Cutter Factory Price

US$9,000.00-12,000.00 1 set (MOQ)

Basic Info.

Model NO.
KJPD-ZD-1625
Condition
New
Control
Automatic
Application
Paper, Plastic, Leather, Fabric
Power Source
Electric
Layout
Horizontal
Voltage
110-380V
Power
9-11kw
Cutting Speed
1000mm/S
Cutting Thickness
50mm
Safety Device
Infrared Radiation/Anti-Collision/Emergency Stop
Transport Package
Wooden Box
Specification
1600*2500mm
Trademark
kangjia
Origin
China
HS Code
8461500090
Production Capacity
100 Sets / Month

Product Description


Model KJPD-ZD -2518 (can be customized)
Fan power 9 kw
Voltage 110V/220V/380V±10%,50HZ 60HZ
Working characteristic Computer operation and cutting machine at the same time,complete data transmission quickly,can be used continuously
Cutting speed max. 1400mm /s
Cutting thickness 0.1-10mm
Effective cutting area 2500mm * 1800mm
Cutting accuracy ±0.1mm
Overall dimension 3.42m * 2.48m *1.4m
Cutting materials Nature leather ,pu ,fabric
Cutting tool Oscillating knife cutting head & Round knife cutting head &Pen
Location mode Infrared laser
Material fixed mode Vac-sorb
Transmission interface Network transmission
Compatible software Kangjia intelligent intergrated software
Supported formats PLT, DXF, JDP
Control system PC
Projector + camera Overhead HD projector + Camera
Driving mode Belt drive
Servo motor & drive Panasonic
Guide rail Brand :Yintai
Body structure Body welding
Suction casing Aluminum case; The platform is made of 5mm solid aviation aluminum, and the built-in support structure is made of 3mm square steel pipe, which ensures that the platform will not be deformed for a long time.
Certification CE/SGS,ISO9001/ISO14001/ISO18001
Safety device Mechanical anti-collision device + infrared ray

Factory information
Applicable industry
Certification
Exhibition
Packing and delievery
FAQ
Q:I want to buy this machine,what suggestion can you give?
A:Please tell me what material do you process and what's the size of your material?
Q:What's the delivery cost & time?
A: Please tell me your sea port name,I check shipping cost,after production we will deliver ASAP.
Q:Have you exported to our country?
A:We have been in this field for 5 years,we have CE,ISO,SGS certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.
Q:This is the first time I use this this kind of machine,is it easy to operate?
A:There are English manual or guide video that show how to use the machine,if there is still have any question,please contact us by e-mail/skype /phone/trademanager online service at any time.
Q:If machine have any problem after I receive it ,how can I do ?
A:Free parts send to you in machine warranty period if machine have any problem ,if the parts less than 0.5kg,we pay the postage.
