Basic Info.
Making Method of Parison
Extrusion-Blow Molding
Computerized
Computerized
Transport Package
Film Packing
Origin
Zhangjiagang City, Jiangsu Province, China
Production Capacity
200 PCS/H
Product Description

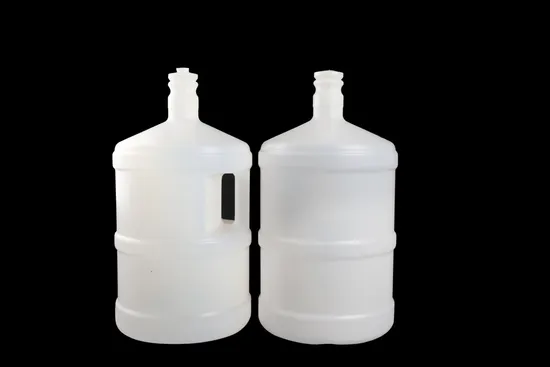

ABLD90 4 gallon bottle blow molding machine was specially designed for making plastic water gallons, lubricant oil bottles, tool boxes, plastic drums, and other plastic containers not over 20L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 20L.
(2)Double station single die head design, Stable and efficient.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Full automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Multiple screw available for double layer or tranparent liquid lever line.
(6)Auto deflashing device available, can remove the extra parts of bottles.
(7)Auto lubricant system controlled by PLC.
(8)Special screw cut device available
Max. Product volume | 20 liters |
Out put capacity | 2160~2400pc/day |
Screw diameter | 90mm |
Screw L/D ratio | 24 L/D |
Screw drive power | 45KW |
Screw heating capacity | 8 KW |
No.of heating zone | 4 zones |
Output of HDPE | 128KG/H |
Oil pump drive power | 11 KW |
Clamping force | 108KN |
Max.size of mold | 240-660mm |
Mold stroke | 530 X 550mm |
Max.die diameter | 180mm |
Blowing pressure | 0.6 mpa |
Air Volume | 0.9 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 90 L/MIN |
Size of Machine | 4.2x3x3.1m |
Weight of machine | 11ton |
