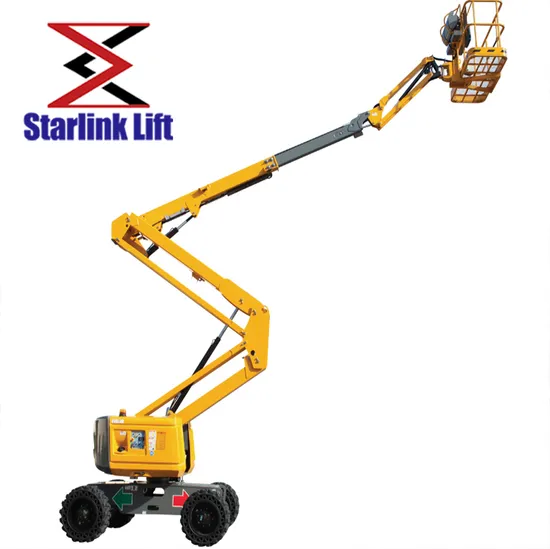

24m Factory Direct Sale Aerial Working Self-Propelled Articulated Boom Lift

Product Description

Product Description
The articulating arm aerial work vehicle is a lifting equipment used for high-altitude operations. It can cross obstacles for high-altitude operations. When the platform is lifted to any position, it can work while walking. It has a compact structure and flexible steering. The width of its site can ensure that the equipment can enter Narrow aisles and crowded work areas. Backup power unit, operable working platform reset, convenient transportation method, can be towed to anywhere. Easy-to-identify operation panel, multiple mechanical, electrical and hydraulic safety protections, and advanced integrated hydraulic and electrical integration system.
Articulated arm aerial work vehicles are widely used in installation, maintenance and aerial work in municipal administration, electric power, street lights, advertising, communications, photography, gardens, transportation, docks, airports and ports, large industrial and mining enterprises and other industries. It is suitable for various rugged terrains in the wild and has a wide range of space operations. It is mainly used in construction, bridge construction, shipbuilding, airports, mines, port terminals, communication and power facility construction, and outdoor advertising engineering machinery and equipment.
Product Parameters

Model	Platform height(m)	Load(kg)	Table size (mm)	Maximum overall dimension(m)	Maximum operating radius (m)	Self-weight (kg)
SLQB-8	8	230	1600*800	5.2*1.65*2.35	5.3	4900
SLQB-10	10	230	1600*800	5.5*1.65*2.35	5.8	5800
SLQB-12	12	230	1600*800	6.3*1.78*2.35	6.9	6596
SLQB-14	14	230	1600*800	7.0*1.93*2.35	8	6900
SLQB-16	16	230	1800*800	7.18*2.18*2.2	8.9	8550
SLQB-18	18	230	1800*800	8.35*2.2*2.63	10.6	9200
SLQB-20	20	230	1800*800	8.86*2.25*2.53	11.7	11000
SLQB-22	22	230	1800*800	9.9*2.4*2.9	12.2	13200
SLQB-24	24	200	1800*800	11.2*2.6*3.2	12.5	14200
SLQB-26	26	200	1800*800	11.5*2.8*3.1	12.8	16200
SLQB-28	28	200	1800*800	12.3*2.8*3.2	13.2	18200
SLQB-30	30	200	1800*800	12.8*2.8*3.3	13.6	21000

Detailed Photos
Heightened Guardrail
Thickened countertop, double-layer protection, removable, easy to use.


Stable Arm
The rectangular tube has high strength and solid structure. High-voltage electrostatic spraying makes the paint particles adhere more strongly.
Tires
anti-skid and wear-resistant, with strong load-bearing capacity, protecting the smooth movement of equipment
Special Chassis
New fully hydraulic self-propelled special chassis, stable and reliable.

Hydraulic Cylinder
Adopts high-quality double-layer sealing ring, no oil leakage after long-term use, stable and low failure rate

Rubber Tires
High-quality rubber and large tire load-bearing capacity ensure the stability of the entire machine during operation.

Control Panel
The control panel is concisely labeled, easy to understand and easy to operate.

Installation Example
Company Profile
Shandong Starlink Heavy Industry Machinery Co., Ltd. is located in Jinan City, Shandong Province, China, is a professional production and development of various lifting platform enterprises, the main products are Hydraulic Scissors lift, Trailer boom lift, Home Lift and so on. Over the years, our company to "quality first, customer first, integrity-based" as the business philosophy, has become one of the leading domestic hydraulic equipment manufacturers.
All products produced by our company are in line with national and industry standards, and has passed ISO9001-2000 quality system certification, product quality and performance are recognized, products not only sell well in China, but also exported to more than 50 countries in the world, mainly distributed in Europe, the United States, the Middle East, Southeast Asia and South Africa. All products an be designed and manufactured according to your requirements, welcome to sample customized.
Packaging & Shipping
