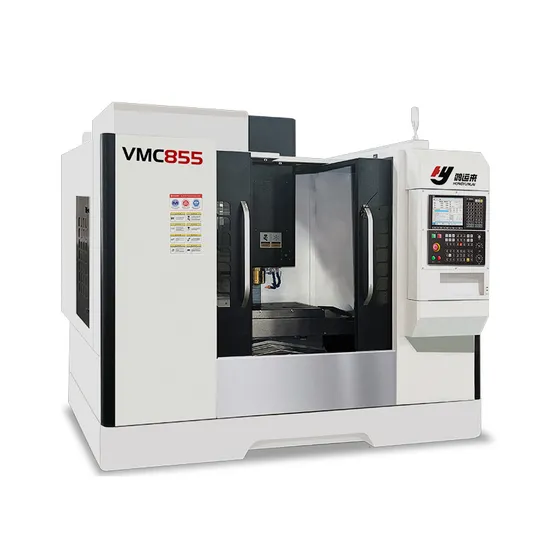

Vertical Machining Center OEM China Vmc855

Vertical Machining Center OEM China Vmc855

US$27,042.00 1 Piece (MOQ)

Basic Info.

Model NO.
vmc855
Type
Tool Milling Machine
Object
Hardware
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Tool Station
24t Disc
Direct Spindle
Bt40-150-8000r/Min
Knife Cylinder
4.5t
Chip Conveyor
Chain Type
Transport Package
Container
Specification
3100mm*2500mm*2800mm
Trademark
hongyunlai
Origin
China
HS Code
8457101000
Production Capacity
500 Units/Month

Product Description

Product Parameters

Specification Unit
Table Size 1200*600 mm
Max. Table Load 800 kg
T-slot No. and size 5-18-100 mm
processing Table Travel (X) 1100 mm
Scope Table Travel (Y) 600 mm
Table Travel (Z) 600 mm
Spindle end face to Work surface distance Max. 720 mm
Min. 120 mm
Distance from Spindle center to Z Axes rail surface 650 mm
Spindle Spindle Taper (7:24) BT40-150
Range of Spindle Speed 8000 r/min
Spindle Motor Power 11/15 kW
Oil cooler With
Move Fast-moving X Axes 36 m/min
Y Axes 36
Z Axes 24
Moving speed 1-10000 mm/min
Tool Magazine Tool Magazine style disc
Tool Magazine Capacity 24
Min. Time of Tool Change 2.5 s
Positioning Accuracy Accuracy testing standard JISB6336-4:2000/ GB/T18400.4-2010
X/Y/Z Axes 0.008 mm
X/Y/Z Axe Repeatability 0.005 mm
Dimension(L*W*H) 3100*2500*2800 mm
Weight 6800 kg


Product Description

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,
Vertical Machining Center ,Lathe Machines and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: What about your warranty?
A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
8:How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
