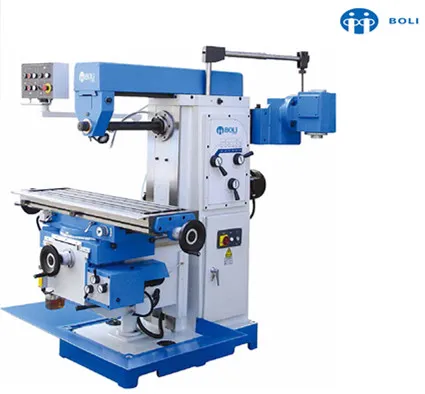

X6032/6036 Universal Knee-Type Milling Machine
| US$2,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6032/6036
Material
Metal
Application
Metal Recycling Machine
Transport Package
Pallet
Specification
All Size
Trademark
BOLI
Origin
China
Production Capacity
2000
Product Description
X6032/6036 Universal Knee-typeMilling MachineStandard Accessories
Drill chuck/Drawbar/Work lamp/Milling vice
Coolant system/Chip tray
X-axis mechanical power feed
Y-axis mechanical power feed
Toolbox&tools/Operation manual
Quality certificate/Packinglist
Optional Accessories
DRO/vise
Milling collet chuck
Rotary table
Dividing head
58 pcs clamping kits
Keyless drill chuck
Technical Parameters
| Model No. | Unit | X6032A | X6032B | X6036 |
| table size | mm | 1320×320(51.97"×12.60") | 1320×320(51.97"×12.60") | 1250×360(49.21"×14.25") |
| table travel | mm | 800(750)×300(31.20"(29.53")×11.81") | 1000×300(39.37"×11.81")(MANUAL) | longitudinal: 600(23.62") cross: 250(9.84") vertical: 420(16.54")) |
| worktable swivel angle | ° | - | - | ±15~±45 |
| worktable longitudinal/cross power feed | mm | - | - | 8steps 22~55 rapid: 810 |
| number/width/distrance of T-slot | mm | 5/14/63 | 5/14/63 | 3/18/80 |
| spindle taper | ISO50 | ISO50 | 7:24 ISO50 | |
| distance from spindle center to table surface | mm | 0-400(0"-15.75") | 0-400(0"-15.75") | 0~420(0"-16.54") |
| distance from spindle center line to arm | mm | - | - | 175(6.89") |
| arm travel | mm | - | - | 500(19.68") |
| spindle speed range | rpm | 58-1800 | 58-1800 | 60~1800 |
| spindle motor power | Kw | 4 | 4 | 4 |
| worktable power feed motor | W | - | - | 750 |
| worktable elevating moter | Kw | - | - | 1.1 |
| coolant pump | W | - | - | 90 |
| coolant flow | L/min | - | - | 25 |
| overall dimension | mm | 2070×1900×1850 | 2070×1900×1850 | 1880×1700×1830 |
| G.W. | kg | 2200 | 2300 | 2200 |
