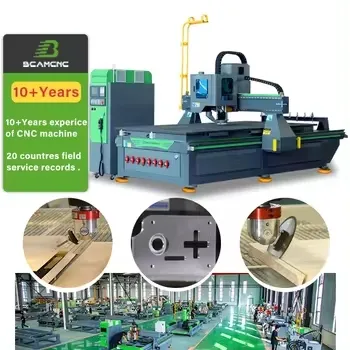

CNC Woodworking Machinery 1325 2030 CNC Wood Router Machine with Good Price

CNC Woodworking Machinery 1325 2030 CNC Wood Router Machine with Good Price

US$6,599.00-12,999.00 1 Piece (MOQ)

Basic Info.

Model NO.
BCM-2030C
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
380V/220V/Customizable
Spindle Power
3-20kw (Customizable)
Application
Mold Industries Furniture Industry
Drive Motors
Japanese Yaskawa Servo Motor and Drivers
Operating System
Taiwan Syntec Control System
Command Language
G Code
Table Surface
T-Slot Table
Transport Package
According to Customer Requirements
Specification
9.8*2.2*2.5/4000KG
Trademark
BCAMCNC
Origin
Shandong China
HS Code
8465990000
Production Capacity
1000pieces/Year

Product Description

Product Description
ADVANTAGES
1.BCAM CNC routers with linear ATC C Series are engineered and built to fit your application as well as your budget. Our C series CNC routers with linear ATC are available in large and small table configurations and are capable of handling a wide variety of milling, drilling, contouring, boring, shaping, grooving, routing and engraving projects. All of our CNC routers are built to be rugged, dependable and are backed with superior customer support. 2. High-quality guide rails, racks, and screw rods make the machine more durable. 3. Heavy bed, derusting and tempering process make the machine more precise and not easily deformed.
4. The control system is optional to meet the needs of different customers. Such as Mach3, Nc-studio, Richauto, Syntec, LNC, Shanlong, XDW, Siemens, etc.
5. High-quality original electrical components make the machine not easy to stop.
SPECIFICATION
Product Name CNC Wood Router C Series
Working Area 1325//1530/2030/2040/Customizable
Spindle Power Italian HSD 9KW air-cooling Electrospindle
X,Y,Z Traveling Positioning Accuracy ±0.02/2000mm
Table Surface Vacuum table+T-solt table
X,Y,Z Rail and Trasmission XY axis gear transmission, Z axis TaiwanTBI Ball Screw
Max. Rapid Travel Rate 90m/min
Max. Working Speed 70m/min
Spindle Speed 6000-24000RPM
Drive Motors Japanese Yaskawa 750W Servo Drive System
Working Voltage g Environment AC380v/50HZ/3 phase
Command Language G Code
Operating System Taiwan Syntec 60W-E control system
Interface USB
Software Compatibility Option:BCAMPro/VCarve/VCarve Pro/ArtCAM/UCANCAM,etc.
Running Environment Temperature:-20ºC~45ºC Relative Humidity: 5%~75%
Cutting thickness According materials

Machine Details
MACHINE DETAILS
C Series CNC router spindle
Italian HSD 9KW Air-cooling Electrospindle,
Increase Dust-Free vacuum efficiencyby 80%.
Operating system
2D and 3D processing with router and knife tools, Compatible with standard G-Code based 99% CAD/CAM software programs.
Servo motors and drive systems
World-class Japan Yaskawa servo motor and driving system ensures machine to run with fast speed and low noise.
Lubrication system
Auto lubricating system, one touch canfinish periodic maintenance easily.
Advantages
600ºC Annealing treatment continued24 hours,
10 Years Machine bed Not deformed,
100% drilling hole by highest accuracy.
Tool setting and tool magazine
Unique auto tool changer system can change tools alternatively, tool sensor to compensate the tolerance of tool length.

Samples Display
SAMPLES DISPLAY
RECOMMEND PRODUCTS

Certifications
CERTIFICATIONS
Customer Reviews
CUSTOMER REVIEWS
Company Profile
ABOUT BCAMCNC
FAQ
FAQ
Q: How to choose a suitable machine?
A: You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience.
Q: Are you a factory or a trade company?
A: We are a factory with rich experience. Our factory is in Shandong, China. Or directly make an appointment with the customer for a video factory inspection. Send factory inspection video to customers to watch
Q:What about after-sales problems?
A: If your macine such problems, please contact us as soon as possible, and do not try to repair the machine by yourself or others. We will reply as soon as possible within 24 hours to solve it for you.
Q:Do you have a setup and equipment commissioning service?
A: Yes,we have. The machine was installed and debugged before delivery. You can use the machine directly after receiving it. Of course, we also could let our technologists go to your country to install and debug the machine.
If you have other questions, Please send inquiry. We will reply to you as soon as possible.
