Industrial CNC Sawing Machine for Accurate Metal Cutting

Industrial CNC Sawing Machine for Accurate Metal Cutting

US$28,250.00
1-4 Sets
US$29,500.00
5+ Sets

Basic Info.

Model NO.
DYM-75C
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001, ISO14001
Condition
New
Cutting Capacity
10-75mm 10-55mm
Cutting Applications
Stainless Steel,Copper,Aluminum etc
Delivery Time
10-20 Days
Features
High Speed, High Precision, High Efficiency
Tct Saw Blade
285*T1.75*2.0mm
Feed Mode
AC Servo Motor+Ball Screw /Swing Feed+Linear Guide
Control Mode
Touch Screen + Buttons
Transport Package
Wooden Box
Trademark
Dongyou
Origin
China
HS Code
8461500090

Product Description


Product Description

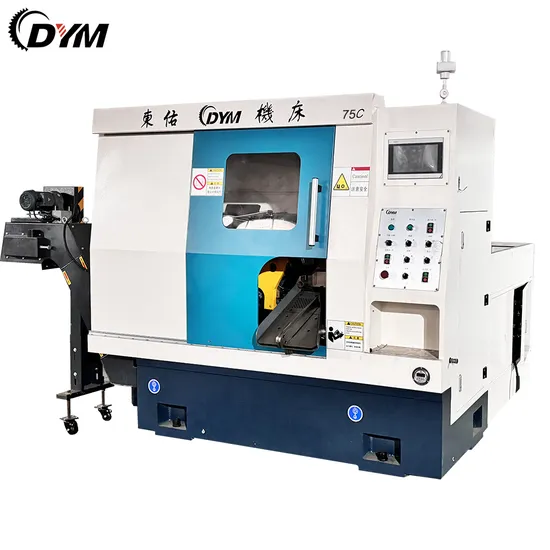

CNC High Speed Metal Circular Saw Machine
The metal circular saw machine is made up of the machine foundation, head spindle, feeding system, clamping device, auto feeding, feeding rack, hydraulic system, electrical system, cooling device, lucbrication system, chain-plate type chip conveyor, blade cleaning device, etc .
CNC High Speed Metal Circular Saw Machine is a cutting-edge tool designed for precision cutting of metal materials. With advanced CNC
technology, this machine offers high-speed cutting capabilities, allowing for efficient and accurate results. The circular saw design ensures smooth and clean cuts, making it ideal for industrial applications where precision is key.




Product Feature
Gear Box :
The head spindle is the key device of the machine. It is made of high-quality ductile iron cast, the wheel ,bearing and sealing parts all used import brand ,ensured the overall smooth operation of the machine and the service life of components . Using imported TCT circular saw blades, cutting speed fast with high precision and long service life .
CNC System:
Using PLC for automatic control , the whole process CNC control . The HMI operation is easy and convenient .
Lubrication Cooling System :
Adopting the advanced MQL saw blade spray-mist lubrication technology helps to improve cutting accuracy and surface quality, save energy,protect the environment, reduce costs, and extend the service life of saw blades.
AC Servo Feeding System :
Adopting the advanced AC servo motor with high precision ball screws for feeding the blade and material .
One-Piece Casting Foundation :
The machine foundation is high-strength casting material with high rigidity, shock resistance, little deformation, and outstanding shock absorption.
Chain-type Chip Conveyor :
The use of a chain plate automatic chip conveyor effectively prevents debris adhesion, increases chip removal capacity, and maintains internal cleanliness of the equipment. The equipment can automatically protect itself in case of overload, avoiding equipment damage and improving equipment service life. High intensity, stable and quiet movements, ensuring high efficiency and stability during long-term operation.
Product Parameters
Model : DYM-75C

Cutting Capacity
Round Ф10-75mm
Rectangle 10-55mm
Round Tube Ф10-75mm
Rectangle Tube 10-55mm
Head Spindle TCT Saw Blade Ф285*T1.75*2.0mm
Pin Hole and Aperture 2xφ11xPCD63xφ32
Blade Speed 30-160rpm
Spindle Motor 11KW(6P)
Sawing Method Horizontal sawing
Cut Feed Mode AC Servo Motor+Ball Screw /Swing Feed+Linear Guide
Main Clamp Way Hydraulic Type/Vertical and Horizontal Clamping of Each Group
Automatic Feeding Device Feeding Drive Mode AC Servo Motor+Ball Screw /Swing Feed+Linear Guide
Feeding Clamp Way Hydraulic Clamped
Trim Length 10-99mm
Remnant Length 80mm+α(α is less than cut off length)
Single Feed Length 8-650mm
Length of Material 4000-6000mm
Supply Mode Hydraulic Lifting
Material Area 900mm
Hydraulic Device Hydraulic Drive Motor 2.2KW(3HP)
Hydraulic System Rated Pressure 5Mpa
Hydraulic Oil Capacity 80L

Machine Size & Weight(rack included)
Size 7400*3300*1800mm
Weight 4200kg
Other Equipment Control Mode Touch screen + buttons
Saw Blade Deflection Shock Device Tungsten Carbide Parallel Block
Dispenser Pneumatic, reciprocating
Lubrication System Timely Quantitative Forced to the Oil
Chip Conveyor device Chain Plate Type Auto Chip Conveyor
Cooling System lubrication cooling system
LED Work Light Waterproof and Dustproof
