Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Certification
CE, ISO9001: 2000
Engine Power
169kw/2000rpm
Track Plate Width
600 / mm
Transport Package
by Bulk or Container
Specification
9610mm*3200mm*3030mm
Production Capacity
1000/Year
Product Description

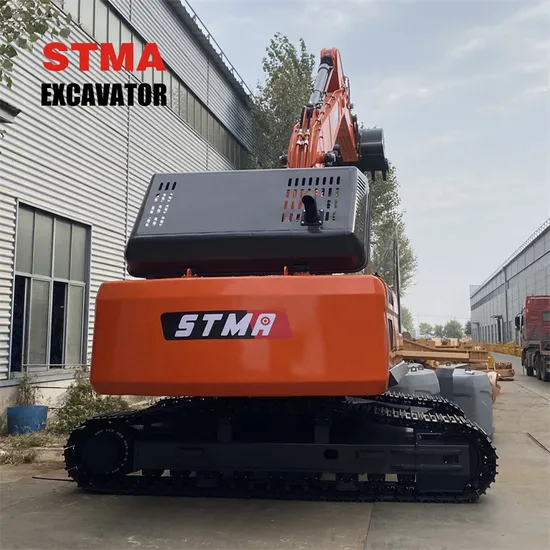

STMA Factory Supply Big Construction Machinery 26tonne Digger Heavy Crawler Excavator For Sale With ISO CE
Product Description
Heavy crawler excavator
Product Parameters
Specifications of crawler excavator
Manufacturer | STMA | Gradeability | 30% |
Model | ST260 | Service weight | 25000 kg |
Engine model | Chinese engine | Total track width | 3200 / mm |
Engine power | 169kw/2000rpm | Total track length | 3945 / mm |
Cylinder number | 6 | Track plate width | 600 / mm |
Rotate speed (RPM) | 12.4 | Max mining height | 9695 / mm |
Rotating torque (kn/m) | 79 | Max mining depth | 6685 / mm |
Ground specific voltage | 48 KPA | Bucket capacity | 1.4 CBM |
traveling speed | 4.9/3.1 KM/H | max excavation radius | 9950 / mm |
maximum drawbar pull | 52 (kN) | Max uninstallation height | 6850 / mm |
arm crowd force | (kN)165 / 177.9 | Max vertical mining depth | 6095 / mm |
Bucket digging force | (kN)107.5 / 115.3 | wheel track | 3200 / mm |
Cylinder number | 6 | Back -end rotation radius | 2850 / mm |
Max traffic of the main pump | (l/min)2×119 | Min ground clearance | 480 / mm |
Walking liquid pressure circuit | (Mpa)32.5 | Track gauge | 2500 / mm |
Rotating liquid voltage circuit (MPA) | 27.9 | Boom length | 5800 / mm |
Joystick pump flow (L/min) | 28.5 | Arm length | 2900 / mm |
Rotary motor | South Korea Eaton | Total shipping height | 3030 / mm |
Walking motor | South Korea Eaton | Total shipping width | 3200 / mm |
Hydraulic valve | South Korea | Total shipping length | 9610 / mm |
Fuel tank (L) | 350 | Hydraulic fuel tank (L) | 210 |
Features of mini excavator:
1. with stere reinforced shovel whose key parts increase the thickness of the steel plate adopts advanced manufacturing technology to improve the durability.
2. Large and robot welding arms, key areas of reinforcement.
3. The European and American version of the cab is 10cm wider than the conventional version, providing a wider view and reducing fatigue by 20%.
4. The imported control valve from South Korea, high performance rotary motor, and optimized hydraulic system make the rotation strong and powerful, and the operation more excellent.
5. Optimizi the parallel design of heat dissipation system to ensure the optimal operating temperature of the engine.
6. Optimize the intake system, strengthen the material of the filter element, achieve a filtration accuracy of 99.9%, and extend the repalcement cycle by 15%
7. Hydraulic system, high efficiency and energy saving, machine, diesel filter centralized maintenance, save time and worry.
