Small Laboratory PVC Mixer Machine for Testing and Small Production

Small Laboratory PVC Mixer Machine for Testing and Small Production

US$11,500.00-12,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
XH-401CE
Control Type
Artificial
Automatic Grade
Semi-Automatic
Power Source
Electric
Type
Open Mixing Mill
Mixed Capacity
0.5-1kgs or Designated
Temperature of The Roller
Electrical Heating Room Temp ~ 300ºC
Heating Mode
Electrical Heating
Revolution of The Roller
Dual-Frequency Limitless Speed Change
Roller Pitch
0.1~5mm Adjustable
Size of The Roller
Φ120mm*L350mm or Designed
Transport Package
Wooden Case
Specification
1000*550*1200mm
Trademark
Xihua
Origin
China
HS Code
8477800000
Production Capacity
50set/Month

Packaging & Delivery

Package Size
110.00cm * 65.00cm * 130.00cm
Package Gross Weight
430.000kg

Product Description

Lab Two Roll Mill ApplicationThe lab two roll mill is used to mix the raw material and additional agents uniformly for testing, and apply the experiment results and its ratio in the production line to satisfy the requirements of quality and color which specified by the customer.
Lab two roll mill is widely used in rubber, plastics industries. Such as polyolefin, PVC, film, coil, profile production and polymer blending, pigments, masterbatch, stabilizers, stabilizers and so on. The main purpose is to test raw materials's physical properties change and contrast after mixing. Such as color dispersion, light transmission, substance table.
Technical Parameter Of XH-401CE lab two roll mill
Applicable materialsPP, PE, PVC, rubber, etc.
Mixing capacity0.5-1kgs or designated
Roller diameter120mm or designed
Roller width350mm or designed
Roller gap0.1 - 5mm (adjustable)
Speed of roller18r/min
Heating modeelectrical heating
Safety deviceprotective cover, safety lever, reverse door, emergency stop button
Motor1HP (2 Sets)
Power supply380V/50Hz/3 phases or Customerized

Main Features of lab two roll mill
1) Built-in heater, together with LED temperature controller and high-precision .
2) Taiwan Bangcheng motor, low noise, stable operation and good durability.
3) A lot safety devices guarantees the operator's safety .
4) Hard chrome mirrored KDB material solid roller, high surface finish, the solid roller for durability.
5) Speed and speed ratio can be adjusted for both roller.
6) We can provide customized production to satisfied customer's specifical requirements.
Detailed Images
1. Alloy steel roller, High wear resistance, no deformation, high overall hardness, 0-to-0 grinding
2. Rubber and plastic is different. We will suggest the roller to you according to your material.
3. The size of the rollers and equipmentcan be increased according to customer's requirement.
1. Safety Device: Reversible rollers (by kicking at the door of the machine). Safety switch. Protective cover.(It can add some other safety device according to your requirements)
2. It adopts Japanese RKC, LED temperature controller and high precision sensor, Accurate and stable temperature, Speed of roller are easy to control by two frequency converter.

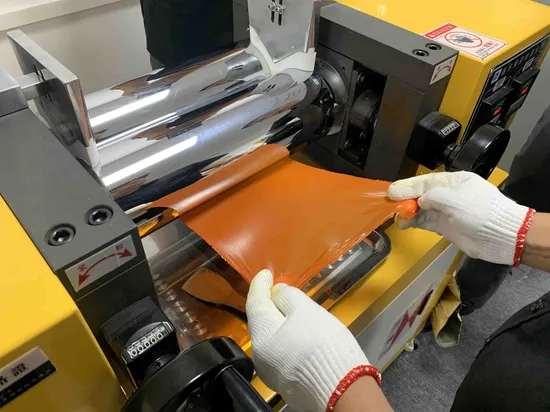

Picture is made of PP and Red masterbatch
Our Service
If you face any problems in future during testing process we promise we will give you a reply within 24 hours and solution provide within 2 working days. We can offer operation video and English operation muanual. We can provide operation video for machines.Onsite Service
A. Device installation;
B. Equipment Operation Test Technology training;
C. Equipment Calibration;
D. Daily maintenance and maintenance of equipment
Free technical training for visiting factories
24-hour Online contact
Free software upgrades
Free information
A.Product Instruction;
B.Product operation instructionvideo;
C.Experiment Test (test application, test report)
24-hour Online contact
Free software upgrades
Free information
A.Product Instruction;
B.Product operation instructionvideo;
C.Experiment Test (test application, test report)
Device Problem Handling
A. Social media 24 hours online communication;
B. Mail Seamless Docking;
C. Video Conferencing;
D. Artificial free door-to-door service
Certification
Exhibition
