Basic Info.
Type
General Pressure Gauge
Structure
Spring Pressure Gauge
Function
Local Indication Type
Installation Structure
Direct Mounting
Features of Measurement Medium
General Pressure Gauge
Indicating Pressure Reference
General Pressure Gauge
Connection
7/16 1/4PT G1/4 G3/8
Transport Package
Carton /Box
Production Capacity
5000/Day

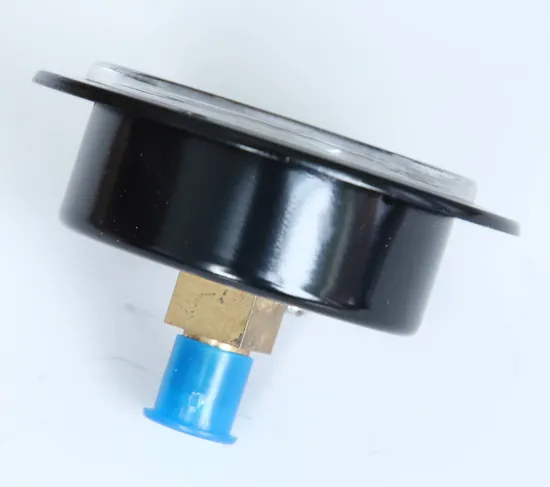

Product Description
Application *Suitable for refrigerant media measure the relation of pressure; * Refrigeration test manifolds; *Air conditioning system; Product feature *Conforms to the standard of the People's Republic Of China General Pressure Gauge ,GB/T1226-2017 and the standard of EN837-1; *Size(mm): 40,50,60,70,80,90,100; *Permissible temperature: Ambient:-20......+60ºC,Media:+60ºC(maximum); *Accuracy class: ±1.0%F.S. ±1.6%F.S *Range: 0~60MPa; *Protection grade: IP54; Specifications *Meterial: ABS plastic, Steel with electroplate,cataphoretic,painted etc; *Connection: 1/8" NPT 7/16-20UNF 5/16-24UNF; *Installation form: Lower mount(LM), Center back mount(CBM), Back panel mount(BPM); Type for Refrigerant media: R22 R134a R404A R410A R407c R704 R433BR407F R502 R507A R507c R600a R406;
