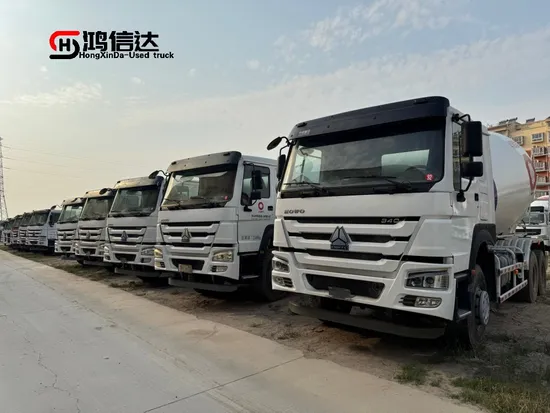

2024 HOWO Transit Mixer Truck Light Mini Truck Sinotruk Sinotruck 3 Cbm 5 Cbm Concrete Mixer Agitating Tanker Truck
| US$7,400.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Concrete Mixer Truck
Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
180m²/h
Feeding Height
1380mm
Vibrating Amplitude
0.9mm
Certification
ISO9001: 2000, CE
Condition
Used
Color
White
Engine
Wp
Driving Type
6*4
Horse Power(HP)
371
Emission Standard
Euro II
Tires
12r22.5 Tubeless Tires with One Spare
Transport Package
Export Packing
Specification
8800x2550x3800mm
Trademark
Howo
Origin
China
Production Capacity
200set/Month
Product Description
Product Description| brand | Sinotruk Howo | |
| Cabin | Driving type 6x4, LHD | |
| HW76 single bed | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10245x2496x3450 |
| Wheel base (mm) | 3600+1350 | |
| Wheel track (front/rear) (mm) | 2022/2022 | |
| Approach/Departure angle(°) | 16/24 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Model | WD615.47 | |
| Horse Power(HP) | 371 | |
| Emission standard | Euro II | |
| Gearbox | 10 forwards & 2 reverse | |
| Steering | Left hand drive | |
| Tire | 12R22.5 tubeless tires with one spare | |
| Mixer Drum | Mixer Capacity | 16 cubic meters |
| Drum thickness | 6mm | |
| Blade thickness | 4mm | |
| Tanker Material: | 16MnQ345 Carbon Steel | |
| Filling Rate(%) | 59 | |
| Input Speed (m3/min) | ≥2.8 | |
| Output Speed (m3/min) | ≥1.2 | |
| Surplus Ratio | ≤0.5 | |
| | Tanker Rotate Speed(rpm) | 0~17 |
| | Hydraulic Pump | Italy Brand: PMP |
| Drum Drive System | Hydraulic Motor | Italy Brand: PMP |
| | Speed Reducer | Germany Brand |
| | Radiator | KAITONG |
| | Water Tank Volume(L) | 400 |
Recommended Products
Company Profile
Packaging & Shipping
FAQ
Q1: Are you a trader or a manufacturer?
A1: We are manufacturers. We have exhibition rooms, truck maintenance workshops and professional workers for sale.
Q2: How to do after-sales service?
A2: We will give video guidance by phone or computer. You can tell our sales staff about any use problems, and we will give you guidance.
Q3: What is the transportation process?
A3: For the field of trucks, most of the services we use are bulk shipping services.
Q4: May I visit your factory?
A4: Welcome to visit our seminar. We are located in Shandong and prefer face-to-face conversation.
Question 5: What kind of payment terms do you offer?
A5: We can do TT, LC, 50% in advance and 50% before shipment.
