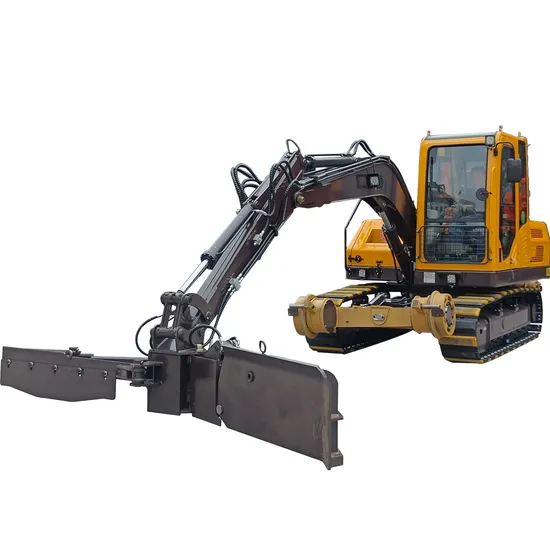

Advanced Self-Propelled Machine Ballast Grader Spreads Ballast Evenly and Produces Ballast Profiles on The Track
Basic Info.
Model NO.
JG-LT
Type
Crawler Excavator
Usage
Special Excavator, GM Excavator, Railway Machine
Bucket
Customization
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
Customization
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
MOQ
1 Set
After Sales Service Support
1 Year or 2000 Working Hours
Feature
Mature Technology
Transport Package
Nude Packing
Specification
6100*2800*2650mm
Trademark
JingGong
Origin
China
HS Code
8429521200
Production Capacity
3000units/ Year
Product Description
Our company abides by the business philosophy of "quality first, customer first" to ensure product quality.We have rigorous production procedures, and each production process is carried out under strict quality inspection.
Only after passing the inspection can they move on to the next procedure. At the same time, we insist on creating a neat,
clean and safe working environment.
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 3300mm | ||||||||
| Arm length | 1850mm | |||||||||
| Maimum digging force | 45KN | |||||||||
| Back-end radius of gyration | 1980mm | |||||||||
| BALLAST TAMPING ATTACHMENT | Vibration frequency | 35HZ~63HZ | ||||||||
| Exciting force | ≥21KN | |||||||||
| The maximum insertion depth of the pick body (the bottom of the concrete sleeper) | ≥90mm | |||||||||
| Angle of rotation | 45° | |||||||||
| Working efficiency | 55-60pcs sleepers /H | |||||||||
| DIMENSION | (Length*width*height) travel position | 6100*2800*2650mm | ||||||||
| Roller gauge | 2600mm | |||||||||
| Track Gauge | 1570mm | |||||||||
| Width Of Crawler | 400mm | |||||||||
| Ground clearance of counterweight | 780mm | |||||||||
| Min ground clearance | 280mm | |||||||||
| TECHNICAL PARAMETERS | Applicable railway gauge | 1435mm(customizable) | ||||||||
| Angle of rotation | 360° | |||||||||
| Machine weight | 8000~8500kg | |||||||||
| Engine model | YUCHAI | |||||||||
| Rated Power | 48~62.5KW | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
We are a leading manufacturer and exporter of wheel excavators, crawler excavators, sugarcane harvesters,
sugarcane grab loaders,multi-function excavators.
We have nearly 20 years of professional experience, and our products have been exported to many countries.
