Pet Plastic Blow Molding Machine

Pet Plastic Blow Molding Machine

US$83,000.00 1 Set (MOQ)

Basic Info.

Model NO.
JS-2C-20L
Raw Material
PET
Making Method of Parison
Stretch Blow
Automation
Automatic
Computerized
Computerized
Certification
CE
Number of Cavity
2
Clamping Force
800kn
Mould Opening Stroke
310mm
Stretch Stroke
470mm
Max. Bottle Volume
20L
Max. Bottle Diameter
290mm
Max. Neck Diameter
100mm
Max. Bottle Height
480mm
Machine Size
5*2.5*2.3m
Machine Weight
7.5t
Transport Package
Wooden Box
Specification
SGS, CE
Trademark
JS
Origin
Made in China
HS Code
84773090
Production Capacity
1000-1200PCS/H

Product Description

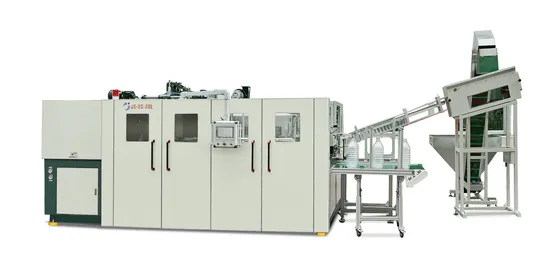

2cavities 20L Pet Bottle Automatic Blow Molding Machine with Servo System

JS-2C-20L
1. Gallons Blow Molding Machine Bottle Making Machine JS-2C-20L With touch screen, Use Festo ( German brand) , SMC (Japan brand )& Parker ( U.S.A Brand) pneumatic components. PLC use Mitsubishi (Japan brand)
2. Nontoxic conveyor belt to carry preforms
3. Produce PET Bottles ( such as: wine, beverage, soybean, vinegar bottles and so on)
4. Easy to maintain
5. Infrared lamps
6. High safety. high speed with high efficiency.
7. Manual saving, one man is enough for operation the machine.
8. Stable performing with easy maintaining.
9. Imported PLC controlling and man-machine interface computer.
10. Japan Omron inspection sensor.
11. Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
12. Power saving design that can increase your profits.
13. Segregate type air controlling system, which is designed for avoiding waste pollution.

Advantage *SIMPLE STRUCTURE IN LINEAR TYPE,EASY IN INSTALLATION AND MAINTENANCE.
*ADOPTING ADVANCED WORLD FAMOUS BRAND COMPONENTS IN PNEUMATIC PARTS,ELECTRIC PARTS AND OPERATION PARTS.
*RUNNING IN A HIGH AUTOMATIZATION AND INTELLECTUALIZATION,NO POLLUTION
*APPLY A LINKER TO CONNECT WITH THE AIR CONVEYOR,WHICH CAN DIRECTLY INLINE WITH FILLING MACHINE
*STRETCH BLOW MOLDING,SAVE MUCH MORE AIR CONSUMPTION WITH HIGH CAPACITY AND LONG SERVICE LIFE.
*HIGH QUALITY MUFFLER,AND SAFTY PROTECTING GATE,GUARANTEE OPERATORS SAFE.

Internal details of the Machine
