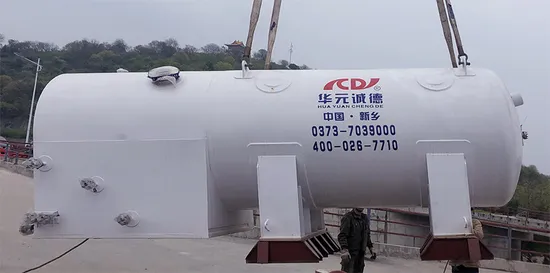

Durable Liquefied Natural Gas (LNG) Marine Fuel Tank for Efficient Energy Storage

Durable Liquefied Natural Gas (LNG) Marine Fuel Tank for Efficient Energy Storage

US$44,800.00
1 Piece
US$44,500.00
2+ Pieces

Basic Info.

Model NO.
CFW-10
Function
Storage Pressure Vessel, Fuel Power System
Application
Liquefied Gas
Material
Stainless Steel
Pressure
0.9MPa-1.1MPa
Storage Medium
LNG
Pressure Level
Low Pressure (0.1MPa≤p<1.6MPa)
Condition
New
Type
Horizontal
Working Pressure(MPa)
0.9 or 1.0
Design Pressure(MPa)
1.0 or 1.1
Filling Rate
90%
Certification
CCS,ASME,GB
Transport Package
According to Customer Requirements
Specification
10m3
Trademark
CNCD
Origin
China
Production Capacity
2000sets/Year

Product Description

Product Description
Product introduction The company produces various types of Marine LNG fuel storage tanks certified by CCS, and complies with national standards GB/T150, GB18442 and CCS "Marine Application Of Natural Gas Fuel specification", and provides Marine LNG system integration equipment and skid-mounted products.The company can customize special types and special specifications of LNG powered Marine storage tanks and systems according to customer requirements
Product features: (1) The storage tank adopts a top out liquid structure, with no risk of low-temperature liquid leakage; (2) The shell is made of carbon steel material, which saves material costs; (3) By using this top discharge liquid storage tank, there is no need to set up a pump tank in the system, and there is no pump tank return pipeline, making the system more concise and safe; (4) This top out liquid storage tank can eliminate the need for cold boxes and cofferdams in the system, reduce the space occupied by the system, and also avoid cracking of the cement cofferdam due to deck deformation; (5) The pump is placed inside the storage tank, without the need for pre cooling, and the pump operates stably, saving filling time; (6) The top of the storage tank is equipped with a pump inlet and outlet well, and the pump can be maintained in the future; (7) This top out liquid storage tank can reduce the overall construction cost of the barge LNG refueling system by about 20%, and reduce the system's BOG volume by 40%;
Volume(m3) Vacuum degree Design pressure(MPa) Working pressure(MPa) Filling rate(%) Related accessories
5 <0.08pa 1.0/1.1MPa 0.9/1.0MPa 90 Vaporizer/valve/ instrument/charging station/pipeline/ pneumatic control system/ electrical system/release port...
10
30
Packing&Delivery:
FAQ:
1. Can you provide installation and debugging services?
According to your requirements, we can provide you with:
(1) On-site installation and construction services; (2) On-site technical engineer guidance service; (3) Online technical guidance service. And we provide you with the "installation, debugging and operation instructions" and other graphic materials and related video and audio materials shipped with the equipment. Considering the cost, we recommend that you use our online technical guidance and audio-graphic guidance materials to complete the equipment installation. 100% of our customers can use the instructions and online guidance to complete the equipment installation.

2. How about the delivery time?
Usually we need about 45-60 work days produce time. 15 days after receiving the full payment.

3. Do you accept product customization?
Of course, we are running our own factory, accept OEM product customization services, you can send your specific requirements to us, we have a professional design engineer to provide you with customized design services.

4. What is the service life of your product?
Designed service life of 10 years;It can be extended according to the actual use situation. Some of our customers have used it for 30 years.

5. Can I put my logo on the product?
We support product painting color and logo customization. Please provide a vector picture or HD picture of logo.
