Diaphragm Pressure Gauge Manometer Good Quality

Diaphragm Pressure Gauge Manometer Good Quality

US$5.00-18.00 50 Pieces (MOQ)

Basic Info.

Model NO.
KF001
Measuring Range
Medium-pressure Gauge
Type
Resistance to Vibration
Accuracy
1.6
Display
Pointer
Application
Industrial, Civil
Structure
Spring Pressure Gauge
Connection Type
Radial Direction
Function
Local Indication Type
Installation Structure
Embedded
Features of Measurement Medium
General Pressure Gauge
Indicating Pressure Reference
General Pressure Gauge
Pressure Range
140psi
Certificate
CE SGS
1
1
2
2
Transport Package
Carton
Specification
Optional
Trademark
no
Origin
China
HS Code
9026209090
Production Capacity
200000PCS/Year

Packaging & Delivery

Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
2.000kg

Product Description


Shipping And Payment Terms:
Delivery Time: 25-35 Days Based On Finally Order Quantities
Payment Terms: T/T
Application:

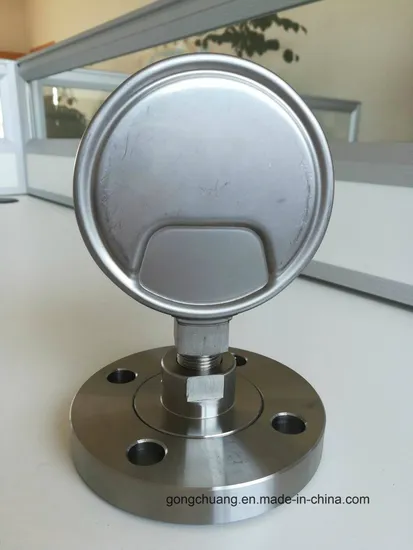

Diaphragm chemical seal pressure gauges designed for applications such as oil refineries,chemical plants,and other industrial applications to measure low pressure in a corrosive environment.
*Specification:

Nominal Size :

2.5"(63mm),4.0"(100mm),6.0"(150mm)

Pressure Range :

-0.1Mpa-10Mpa,other scale units available

Accuracy :

±1.6%, ±2.5%

WorkingTemperature:

-20°c~60°c

Case:

304 stainless steel

Bezel :
304 stainless steel

Bourdon tube :

316SS

Socket

316SS bottom

Diaphragm
SS316L,or Monel,Hastelloy,Tantalum available

Dial:

Aluminium

Pointer:

Aluminium ,black

Window:

Glass Or Plastic

Thread:

1/8",1/4", 3/8",1/2", PT,BSP,NPT etc.

Fill:

Glycerine(standard)
Silicone(optional)

Gaskets/Filling cap:

Neoprene Or Silica gel

CERTIFICATE
WORKSHOP
FAQ:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
