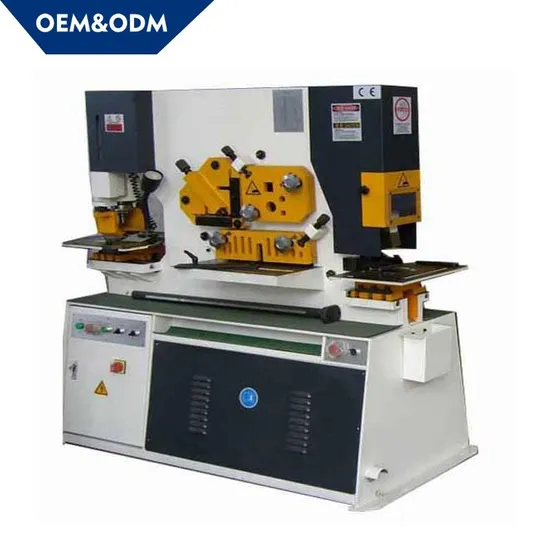

Q35y-25 Hydraulic Iron Worker Factory Direct Sales

Q35y-25 Hydraulic Iron Worker Factory Direct Sales

US$4,000.00 1 SET (MOQ)

Basic Info.

Model NO.
Q35Y
Automation
Semi-Automatic
Color
According to Buyer
Working Voltage
According to Buyer
Price
Factory Price Direct Sales
Quality
Alomost 30 Years Manufacturing Experiences
Service
Lifetime Service
Type
Pipe and Tube Bending Machine
Application
Machinery & Hardware
Type for Cutting Machine
Hydraulic Cutting Machine
Type for Fold-Bending Machine
Hydraulic Fold-Bend Machine
Type for Pipe and Tube Bending Machine
Electric Hydraulic Pipe Bender
Transport Package
Soft Coverings
Specification
CE
Trademark
VASIA
Origin
Nantong, Jiangsu
HS Code
84623990
Production Capacity
300 Sets/Month

Product Description

Hydraulic Iron Worker Professional Manufacturer With Best Price
Machine Introduction:
Q35Y Series hydraulic combined punching&shearing machine can cut and punch all kinds of materials,
such as plate, square bar, angle, round bar, channel and so on.
VASIA Industrial hydraulic ironworkers have been designed and built to the highest quality standards in the industry.
This profitable machine will serve any grueling fabrication shop for decades to come.
This machine is typically in stock for quick delivery.
1.Punching,
Full range of universal punches and dies are available.
unique style allows for large angle iron punching and large channel punching.
Large viewing window on stripper swing away design for ease of operation.
large two piece gauging table with rulers and stop as standard fittings.
Quick change coupling nut and sleeve for rapid replacement of change.
2.Shearing,
Round and square bar shear has multiple holes for a variety of sizes.
Adjustable hold down device for round/square bar,channel/beam cutting.
Large strong guarding for max safety.
The angle shear has the ability to cut angle at 45°both top and bottom leg.
This gives the operator the ability to make a picture frame corner for perfect welds.
Diamond shaped blade for quality cuts that is minimal material lost and deformity.
Easily adjustable hold-down device for accurate plate cutting.
Large 15″squaring arm with inlaid scale.
Special anti-distorted blade for quality cutting.Lower blade has four usable edges.
There is screw allow for gap adjust no shim needed.
3.Notching,
Unique design allows for cutting of angle and flat bar.
Electrical interlock safety guard and three gauging stops for precise positioning.
The notching section of this hydraulic ironworker is perfect for notching out metal plate,
angle iron and much more.
The notching station also has an oversized table with material stops.
This section of the machine can also be outfitted with the optional vee notcher.
4.Bending,
Also bend the plate below 500mm.
All the components of Machine are of the highest quality in their safety, function, capability and maintenance.
Main Technical Parameter:
Model Q35Y-16
( IW-60 )
Q35Y-20
( IW-90)
Q35Y-25
(IW-110)
Q35Y-30
( IW-140)
Working pressure(KN) 600 900 1100 1400
Max. cutting thickness(mm) 16 20 25 26
Max. cutting length(mm) 400 480 600 600
Tensile strength of sheet metal
(N/mm²)
≤450 ≤450 ≤450 ≤450
Shear angle(deg) 7 8 8 8
Stroke of ram(mm) 80 80 80 80
(stroke times)(min) 8 8 8 8
Depth of throat(mm) 300 355 400 600
Max .Capacities(mm) 25×16 30×20 35×25 38×28
Main motor(KW) 4 5.5 7.5 11
Length of machine tool(mm) 1650 1950 2355 2680
Width of machine tool(mm) 800 900 980 1060
Height of machine tool(mm) 1780 1930 2100 2350
Weight of machine tool(kg) 1900 2600 4800 6800
PUNCHING METRIC(mm)
Max. Capacities 25×16 30×20 35×25 38×26
Max. Stroke Length 80 80 80 80
Throat Depth Standard 305 355 400 600
Working Height 1030 1084 1142 1209
SHEARING
Flat Bar 250×16 330×20 300×25 355×30
Alternative 400×8 480×10 600×16 600×20
Blade Length 410 485 620 610
Working Height 890 894 891 897
ANGEL CUTTING
At 90°cut 125x125×12 140x140×12 160×160x14 200x200×12
At 45°Mitre 70×10 70×10 70×10 70×10
Working Height 1130 1139 1200 1220
SECTION CUTTING
Round / Square Bar 45 50 60 65
Channel / I bar 130×65 160×88 200x100 280×122
T bar 90×12 90×12 90×12 90×12
NOTCHING
Material Thickness 10 13 14 16
Width 57 57 57 57
Depth: Vee -Rect. 60-90 60-90 60-90 60-90
Working Height 890 883 886 898
