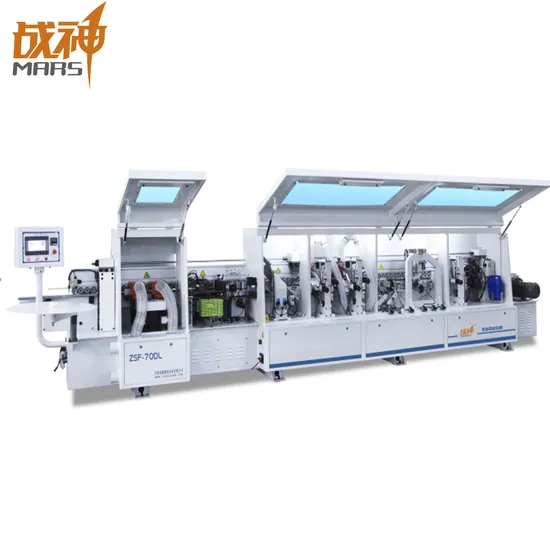

Heavy Duty Full Automatic Edge Bander Woodworking Furniture Auto Corner PVC Edge Banding Rounding Machine

Product Description

Parameters:

Technical Parameter
Overall dimensions(L*w*H mm)	5570*910*1540mm
Motor power	11.5kw Total power
Feed speed	17-25m/min
Edge thickness	0.4-3mm
Panel thickness	10-60mm
Panel Length	>=150
Panel Width	>=60
Working press	0.6-0.8Mpa
Mini Panel Size	300(L)*60(W) mm & 150(L)*150(W)mm
Total weight	2450KGS

Samples:
Description:
ZSF60DF High Precision with Cornor Rounding Acrylic Board Wood Machinery for MDF Paint Doors is MARS featured machine for processing molded doors, wooden windows, wooden cabinet, wood panels. MARS design it for many years, now popular in the market, it's economic machining center of woodworking cutting machine.
Functions:
The functions of this machine include plane Gluing, End Cutting, Rough Trimming, Fine Trimming, Corner Trimming, Scraping, Buffing and so on.
Applicable Materials:
MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc.
Application Scope:
Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings, advertising boards, sign makings.

Applicable Scope
Processing	Be suitable for processing complicated products, with wide rage of functions, including plane Gluing, End Cutting, Rough Trimming, Fine Trimming, Corner Trimming, Scraping, Buffing and etc.
Material	Acrylic, PVC, MDF(density board), artificial stone, organic glass, and other soft-metal sheets made of aluminum or copper
Application	Be widely used for panel processing, panel furniture, computer desk, office furniture, wooden speaker, wooden kitchen ware, customized wardrobe, modern cabinets, and so on
Strength	Easy operation, competitive price and functional processing for furniture production
	The machine control interface is designed to be user-friendly, fool-like operation, and the operator can be employed through simple training without the need for skilled workers

Accessories:
Performance Features:

Performance Feature
1	This edge bander is ideal for building an automatic production line. Stability and controlled ability are the most important factors for an equipment to be part of production line
2	Pre-milling equipment with double trim-blades works on the waved effect that is caused by precise saw
3	The glue mechanism adopts a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid conglutination
4	End-trimming mechanism through a precise guide track movement, adopt automatic tracking and high-frequency motor fast cutting structure to ensure the cutting surface smoothly
5	Rough &Fine Trimming unit, with two individual high frequency motors, trim the exceeding edge on the top and bottom side of the panel, ensure the top and bottom side of the edge smooth and even
6	Scraping unit for a perfect finishing of the applied edge
7	The buffing device adopt the board processed by cotton polishing wheel, by end-polishing to make a more smooth surface
8	Grooving is a optional function for edge banding machine. It's used to slot out one groove on panel to install glass, back panel etc
