1045 4140 Suj2 Induction Hardened Linear Motion Shaft Chromium Coated Hollow Steel Bar Hard Chrome Plated Piston Rod for Hydraulic Cylinder

Product Description

Product Description Introduction:

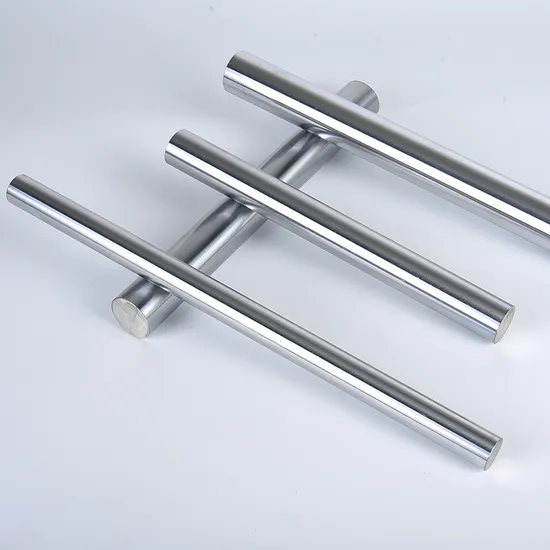

Induction Hardened Chrome Plated Rods are steel rods made of C1045 Induction Hardened surface and Hard Chrome plated.The rods undergo rigorous processes like pilling, straightening, hardening, grinding, polishing, hard chrome plating and finishing under the supervision of experienced engineers. Different from Hard Chrome Plated Rods, the surface hardness of the Induction Hardened Chrome Plated Rods is high up to HRC58-62 via high-frequency induction harden technique. Induction Hard Chrome Plated Rods are usually used as guide rail or slide rail matching with Linearing Bearings because of the surface high durability, abrasion resistance, longer working life and dimensional accuracy. At the same time, Hard Chrome Plated Rods are usually used as piston rod for hydraulic cylinders. WHAT CAN WE SUPPLY :
1,We can offer full rangs of Hard Chrome Plated Rods with diameter 3mm- 120mm, maximum length up to 8100mm. 2,We can provide customized material including GCr15/SUJ2, 42CrMo/4140. 3,When you have special requirements on machining or lathing, such as threading, drilled and tapped, milling keys etc. We can lathe for you. We have high precision several milling machines, drilling machines and 14 CNC lathing centers. Our advanced equipment, skilled technical workers,scientific testing instrument and strict quality control, all of these factors to ensure the precision of our products. Our service center is at your disposal for machining of shafts according to your request or your drawings. You will be satisfied with our service. Detailed specifications of linear shafts as follows:

Structure	Induction Hardened Chrome Plated Rod
Material	CK45/S45C/C1045/1.1191 GCR15/SUJ2 42CrMo/4140
Shaft Diameter	3-120mm
Surface hardness	HRC58-62
Surface hardening depth	0.8-3mm
Chrome layer thickness	15μm ~ 25μm(According to your request)
Chrome layer hardness	Above HV850
Axis straightness	0.15mm /1000mm
Roughness	Ra 0.2μm~0.4μm
Precision	g6/f7

15 YEARS MANUFACTURING AND EXPORTING EXPERIENCE OF LINEAR MOTION PRODUCTS
Established in 2009, Suzhou Weipeng Precision Machinery Co., Ltd. is located inSuzhou, a beautiful and dynamic city in eastern coast of China. We're a manufacturingcompany specialized in the production of hydraulic chrome plated piston rods, linear motion shafts and all lead screws, incuding ball screw and trapezoidal lead screw. In order to be a comprehensive supplier of linear motion parts, we expand our production and engage in mastering a variety of linear motion products, such as linear guide rail and blocks HG/EG/RG/MG series, dual axis wheel linear rail and cross roller guide and linear motion bearings, bronze bushings, as well as pinion and rack. We handle all souring and manufacturing activities and we have rich exporting experience and excellent after-sales service. We build long-term cooperation with clients in more than 60 countries and regions worldwide. We provide OEM /ODM services as well. FAQ Q1: Are you a manufacturer?
Yes, we have been in manufacturing and providing excellent linear motion parts for customers more than 12 years.
Q2: How long could you prepare samples?
Ans:Normally 1days if we have the sample onhand.lf customized one,about a week around.
Q3: How about batch order production?
Ans: Normally 30days or so for one container.
Q4: Do you inspect the finished products?
Ans:Yes, we will do inspection according to lSO standard and ruled by our QC staff.
Q5: How do you ship the goods?
Ans: By sea, by air by truck or by courier (UPS/DHL/Fedex/TNT etc.)
Q6: What advantage do you have?
Ans:
1.We have professional engineers,customers can expect the best possible advice and support.
2.Related responsible team to answer all your questions and follow-up process for you and do update in time.
3.Strict and standard process control according to Quality Management System.
4.Documents support on products, we have strong technical data sheet to support our products, which could make you easier to know our products.
