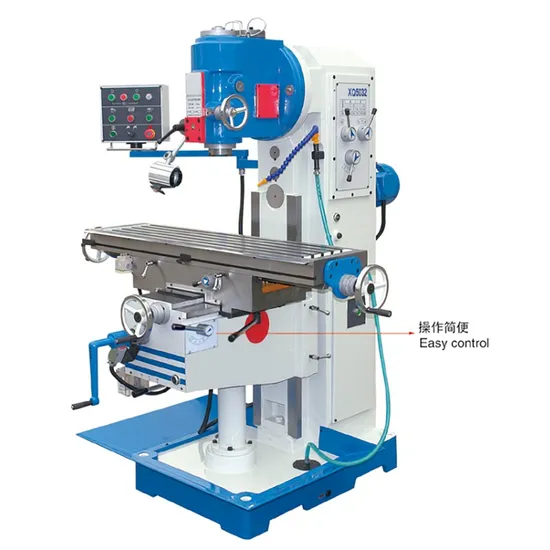

Xq5032 Vertical Milling Machine Vmc
| US$5,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XQ5032
Automatic Grade
Automatic
Precision
High Precision
Certification
GS
Condition
New
Transport Package
Woodencase
Origin
China
Production Capacity
1000pieces/Year
Product Description
Product Description
Head stock swivels ± 30°
Spindle is driven by gears, 12 steps speed, the machine is applied to heavy cut
300mm worktable can be ordered at special request
Driven by servo motor Table automatic feed on X,Y,Z Automatic rapid feed on X,Y,Z
Product Parameters
| Specification | Unit | XQ5032A | XQ5032C |
| Table size | mm | 1370x320 | |
| Table Travel (X/Y/Z) | mm | 820/300/400 | 1000/380/400 |
| Distance from spindle nose to work surface | mm | 35-435 | |
| Spindle hole taper | - | 7:24 IS040 | |
| Rapid speed of table (X/Y/Z) | mm/min | 1335/1335/1000 | |
| Table feed (X/Y/Z) | mm/min | XY:30-830 Z23-625 | |
| T-slots ( NO./Width/Pitch) | mm | 3/14/80 | |
| Spindle speed range | r/min | 12 steps 35-1500 | |
| Stroke of spindle quill | mm | 70 | |
| Distance between spindle ax s and column guideway | mm | 285 | |
| Sv/ivel angle of Vertical milling head | - | ±30° | |
| Main motor power | kw | 3 | |
| Torque of X/Y/Z axis AC servo motor | N.m | 15 | |
| Overall size | mm | 1820X1680X1810 | |
| Net weight | kg | 1600 | 1650 |
Head stock swivels ± 30°
Spindle is driven by gears, 12 steps speed, the machine is applied to heavy cut
300mm worktable can be ordered at special request
Driven by servo motor Table automatic feed on X,Y,Z Automatic rapid feed on X,Y,Z
Head stock swivels ± 30°
Spindle is driven by gears, 12 steps speed, the machine is applied to heavy cut
300mm worktable can be ordered at special request
Driven by servo motor Table automatic feed on X,Y,Z Automatic rapid feed on X,Y,Z
