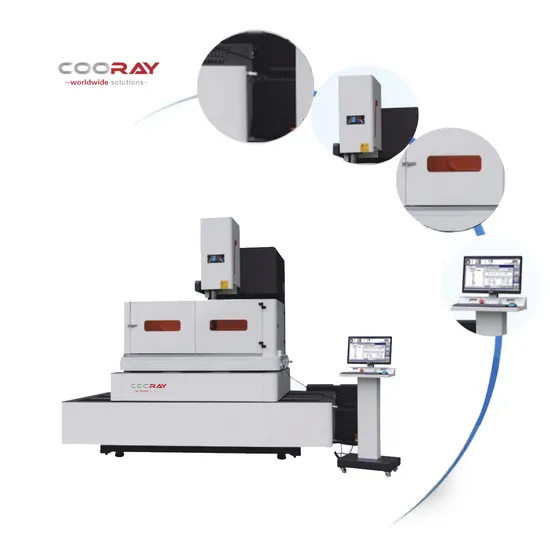

Cooray Cr-EDM Bg1280 Metal Wire Cutting Machine
| US$40,000.00-60,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BQ1280
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Condition
New
Key Selling Points
High Productivity
Marketing Type
Ordinary Product
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Transport Package
The Two Sides Negotiate Logistics.
Specification
2600kg
Trademark
COORAY
Origin
China
HS Code
84609090
Production Capacity
5000
Packaging & Delivery
Package Size
315.00cm * 259.00cm * 298.00cm
Package Gross Weight
8600.000kg
Product Description
Product DescriptionMain technical parameters Machine model number: B Q 1 2 8 0 | |||
| Workbench size | 1640 x 1000mm | Electrode wire diameter range | φ0.1~φ0.2mm (standard 0.18mm) |
| Worktable (X, Y axis) travel | 1200×800mm | Spindle speed | Variable frequency adjustable from 1-11.4m/s |
| The maximum size of the workpiece is | 1800 x 1000mm | Maximum yarn storage length | Approximately 300 meters |
| Maximum straight cutting thickness | 500mm | Repeat positioning accuracy (overall) | ≤±0.005mm |
| Maximum load capacity | 2600kg | Maximum cutting efficiency | ≥300mm²/min |
| X, Y minimum instruction unit | 0.001mm | Best surface roughness | Ra 0.7~1.4μm (cut one, repair two) |
| Cone degree and Z axis travel | Liquid tank volume | 120L | |
| The cone U and V axis travel is | 80×80mm | Work fluid filtration method | Three-level filtration |
| Maximum cutting cone | ±15°/150mm (top and bottom water nozzle) | Power supply | Three-phase four-wire 380VAC / 50Hz |
| U, V minimum instruction unit | 0.001mm | Control system | Baiqi system |
| drive control | Total power consumption of machine tool | 2.5KW | |
| control method | X, Y axis servo drive, U, V, Z axis mixed drive or servo drive | Maximum processing current | 10A |
| Z-axis drive | CNC | Gross weight of machine tool | Approximately 8,600 kg |
| The linkage control axis number | X, Y, U and V are four axes | Machine tool dimensions (length, width, height) 3150 × 2590 × 2980 mm | |
| ilk storage cylinder | Machine tool whole machine noise | ≤70dB | |
| Maximum stroke of the spool | 200mm | Up and down non-standard cutting | Yes |
