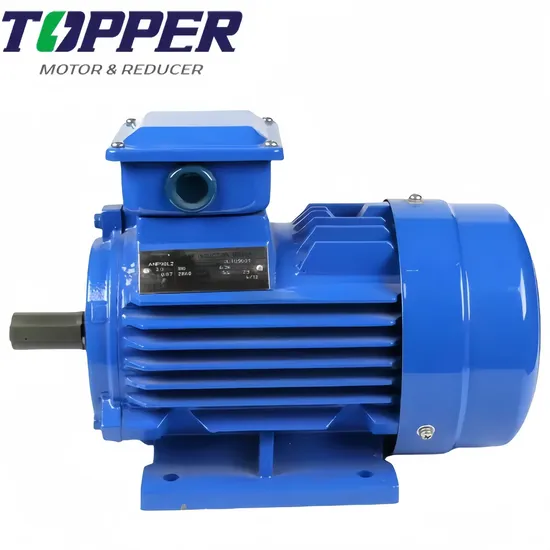

Ie2 Series High Efficient Three Phase Asynchronous 90kw Induction Motor

Product Description

Product Description Y Series motors are totally enclosed fan cooled(TEFC).squirrel cage three-phase induction motors,developed with new technique They are renewal and upgrading products of Yseries The mounting dimension is fully comformed with IEC standard . The motors have the merits of beautiful modeling .compact structure ,low noise,high efficency,large staring torque,easy serving,etc The motors are adopted with F class insulation and designed with assessing method for insulation practice.it enhances greatly motor's safety and reliability.These motors have reached an international advandced level Y series motors can be widely used in varions machines and eqnipments.such as drilling machines,blowers ,pumps, compressors,transporters,agricultural and food processing machines
Ambient temperature: -15oC≤ θ ≤ 40oCAltitude: No higher than 1000 meters from sea levelRated voltage: 380V, 220/380V, 380/660V, 415V,etcRated frequency: 50Hz or 60HzInsulation class: FProtection type: IP54 or IP55Cooling type: IC411Duty type: S1There are three kinds of installation way for motor:1. B3 Frame with foot end shield without flange2. B35 Frame with foot end shield with flange3. B5 Frame without foot end shield with flange Detailed Photos

Mode	Output Power		Speed (rmin)	YE2 Eff n(%)	YE3Eff η(%)	YE4Eff η(%)	Power Factor Cosφ	Current(A)			Rated Tme	Tstart/Tn	Ist/n	max/Tn	wkG)
	kW	HP						380V	400V	415V
801-2	0.75	1	2875	77.4	77.6	83.5	0.83	1.77	1.68	1.62	2.49	2.5	3	5.3	18
802-2	1.1	1.5	2875	79.6	79.7	85.2	0.84	2.5	2.37	2.29	3.65	3.2	3.8	7	19
90S-2	1.5	2	2890	81.3	81.6	86.5	0.84	3.32	3.16	3.04	4.96	2.7	3.5	7.1	24
90L-2	2.2	3	2890	83.2	83.3	88.0	0.85	4.72	4.48	4.32	7.27	2.4	3	6.9	27
100L-2	3	4	2891	84.6	84.9	89.1	0.87	6.17	5.86	5.65	9.91	3.2	4	8	41
112M-2	4	5.5	2914	85.8	85.9	90.0	0.88	8.04	7.64	7.36	13.11	2.5	3	7.5	48
132S1-2	5.5	7.5	2937	87.0	87.1	90.9	0.86	11.2	40.6	10.2	17.88	2.7	3.5	7.5	73
132S2-2	7.5	10	2940	88.1	88.4	91.7	0.88	14.6	13.9	13.4	24.36	2.4	3.3	7.5	81
160M1-2	11	15	2930	89.4	89.5	92.6	0.89	21	19.9	19.2	35.85	2.2	2.9	7.6	125
160M2-2	15	20	2930	90.3	90.3	93.3	0.89	28.4	26.9	26	48.89	2.3	3	7.6	137
160L-2	18.5	25	2937	90.9	91.0	93.7	0.89	34.7	33	31.8	60.15	2.3	3.1	7.4	152
180M-2	22	30	2940	91.3	91.4	94.0	0.88	41.6	39.5	38.1	71.46	2.8	3.2	7.8	187
200L1-2	30	40	2950	92.0	2.1	94.5	0.88	56.2	53.4	51.5	97.12	2.6	3	7.8	241
200L2-2	37	50	2950	92.5	92.6	94.8	0.89	68.2	64.8	62.5	119.78	2.6	3	7.7	261
225M-2	45	60	2960	92.9	93.1	95.0	0.89	82.5	78.4	75.6	145.19	2.4	2.6	7.5	348
250M-2	55	75	5965	93.2	93.3	95.3	0.90	99.5	94.5	91.1	177.15	2.3	2.8	7.1	400
280S-2	75	100	2970	93.8	3.9	95.6	0.90	135	128	123	241.16	2.5	2.8	7.4	540
280M-2	90	125	2970	94.1	94.2	95.8	0.91	160	152	146	289.39	2.8	2.8	7.6	588
315S-2	110	150	2975	94.3	94.5	96.0	0.91	194	185	178	353.11	2.4	2.8	6.9	948
315M-2	132	180	2975	94.6	94.7	96.2	0.91	233	221	213	423.73	2.6	2.9	7.1	1009
315L1-2	160	200	2975	94.8	94.9	96.3	0.92	278	265	255	513.61	2.5	2.9	7.1	1111
315L2-2	200	270	2975	95.0	96.0	96.5	0.92	348	330	318	642.02	2.5	2.8	6.9	1142
355M-2	250	340	2980	95.0	6.1	96.5	0.92	434	412	398	801.17	2.5	2.8	7	1938
355L-2	315	430	2980	95.0	96.1	96.5	0.92	547	520	501	1009.48	2.5	2.9	7	2346

Model	Output Power		Speed r/min)	YE2 Eff n(%)	YE3 Eff n(%)	YE4 Eff η(%)	Power Factor Cosφ	Current/A)			Rated Torque (N.m)	Tstart/Tn	Istin	max/Tn	Weight (KG)
	kW	HP						380V	400V	415V
802-4	0.75	1	1400	79.6	79.8	85.7	0.76	1.88	1.78	1.72	5.12	2.4	2.9	5	20
90S-4	1.1	1.5	1440	81.4	81.6	87.2	0.77	2.66	2.53	2.44	7.3	3	3.5	6	25
90L-4	1.5	2	1445	82.8	82.9	88.2	0.77	3.57	3.39	3.27	9.91	3.2	3.8	6.8	30
100L1-4	2.2	3	1440	84.3	84.5	89.5	0.81	4.88	4.64	4.47	14.6	3	3.5	7	42
100L2-4	3	4	1440	85.5	85.5	90.4	0.82	6.5	6.18	5.95	19.9	2.6	3.3	7	47
112M-4	4	5.5	1445	86.6	86.7	91.1	0.82	8.55	8.12	7.83	26.4	3.5	4	7.5	53
132S-4	5.5	7.5	1445	87.7	87.8	91.9	0.83	11.5	10.9	10.5	36.1	2.2	2.8	6.4	78
132M-4	7.5	10	1445	88.7	88.7	92.6	0.84	15.3	14.5	14.0	49.2	2.4	3	7	88
160M-4	11	15	1460	89.8	89.9	93.3	0.84	22.1	21.0	20.3	71.9	2.5	.9	6.9	138
160L-4	15	20	1460	90.6	90.7	94.2	0.85	29.6	28.1	27.1	98.1	2.5	3	7.5	148
180M-4	18.5	25	1470	91.2	91.3	94.5	0.86	35.8	34.0	32.8	120.2	2.6	3.1	7.8	185
180L-4	22	30	1470	91.6	91.8	94.9	0.86	42.3	40.2	38.8	142.9	2.6	3.1	7.8	134
200L-4	30	40	1470	92.3	92.5	95.2	0.86	57.3	54.4	52.5	194.9	2.4	2.9	7.1	270
225S-4	37	50	1480	92.7	92.7	95.4	0.87	69.7	66.2	63.8	238.8	2.5	2.7	7.5	310
225M-4	45	60	1480	93.1	93.2	95.7	0.87	84.3	80.1	77.2	290.4	2.5	2.8	7.6	340
250M-4	55	75	1480	93.5	93.6	96.0	0.87	103	97.5	94.0	354.9	2.6	2.7	7.3	413
280S-4	75	100	1480	94.0	94.1	96.1	0.87	139	132	127	484	2.7	2.7	7.6	530
280M-4	90	125	1480	94.2	94.3	96.3	0.87	167	158	153	580.7	2.7	2.7	7.5	630
315S-4	110	150	1485	94.5	94.6	96.4	0.88	201	191	184	707.4	2.7	2.9	7.1	950
315M-4	132	180	1485	94.7	94.8	96.6	0.88	240	228	220	848.9	2.7	2.9	7.3	1037
315L1-4	160	200	1485	94.9	95.0	96.7	0.89	288	273	263	1029	3	3	7.4	1107
315L2-4	200	270	1485	95.1	95.2	96.7	0.89	359	341	328	1286	3	3	7.6	1225
355M-4	250	340	1490	95.1	95.2	96.7	0.90	443	421	406	1602	2.8	2.9	7.5	1734
355L-4	315	430	1490	95.1	95.2	96.7	0.90	559	531	511	2019	2.6	2.8	7.4	1940

Model	Output Power		Speed (r/min)	YE2Eff η(%)	YE3 Eff η(%)	YE4 Eff η(%)	Power Factor Cosφ	Currect(A)			Rated orque (N.m)	Tstart/Tn	Ist/n	max/Tn	wRG
	kW	HP						380V	400V	415V
90S-6	0.75	1	934	75.9	76.1	82.7	0.72	2.08	1.98	1.9	7.67	2.2	2.4	4.5	25
90L-6	1.1	1.5	945	78.1	78.1	84.5	0.72	2.97	2.82	2.72	11.1	2.4	2.6	4.5	27
100L-6	1.5	2	945	79.8	79.9	85.9	0.75	3.8	3.61	3.48	15.2	1.8	2.2	4.2	40
112M-6	2.2	3	960	81.8	81.9	87.4	0.76	5.37	5.1	4.92	21.9	2.3	2.8	4.5	50
132S-6	3	4	964	83.3	83.4	88.6	0.76	7.19	6.83	6.58	29.7	1.8	2.4	4.5	76
132M1-6	4	5.5	965	84.6	84.8	89.5	0.76	9.43	8.96	8.63	39.6	2.3	2.7	5	83
132M2-6	5.5	7.5	965	86.0	86.2	90.5	0.77	12.6	12	11.5	54.4	1.9	2.8	5.5	95
160M-6	7.5	10	970	87.2	87.3	91.3	0.78	16.7	15.9	15.3	73.8	2	3	6.5	151
160L-6	11	15	970	88.7	88.8	92.3	0.78	24.1	22.9	22.1	108.3	2.4	3.3	7.5	167
180L-6	15	20	975	89.7	89.7	92.9	0.81	31.4	29.8	28.7	146.9	2	2.7	6.4	198
200L1-6	18.5	25	980	90.4	90.5	93.4	0.81	38.3	36.4	35.1	180.3	2.3	3	7	236
200L2-6	22	30	980	90.9	91.0	93.7	0.83	44.3	42	40.5	214.4	2.3	2.8	7	251
225M-6	30	40	980	91.7	91.7	94.2	0.84	59.2	56.2	54.2	292.3	2.2	2.7	6.5	317
250M-6	37	50	980	92.2	92.3	94.5	0.86	70.8	67.3	64.8	360.6	2.5	2.7	6.9	397
280S-6	45	60	980	92.7	92.7	94.8	0.86	85.8	81.5	78.5	438.5	2.2	2.4	7	513
280M-6	55	75	980	93.1	93.1	95.1	0.86	104	99.2	95.6	536	2.4	2.5	7.1	562
315S-6	75	100	985	93.7	93.8	95.4	0.86	141	134	129	727.2	2.8	3	7.3	933
315M-6	90	125	985	94.0	94.2	95.6	0.86	169	160	155	872.6	2.7	2.9	7.1	1013
315L1-6	110	150	985	94.3	94.4	95.8	0.86	206	196	189	1066	2.9	2.9	7.4	1086
315L2-6	132	180	985	94.6	94.7	96.0	0.87	243	231	223	1280	3	3.1	7.6	1208
355M1-6	160	200	990	94.8	94.9	96.2	0.88	291	277	267	1543	3.1	3.1	7.6	1581
355M2-6	200	270	990	95.0	95.0	96.3	0.88	363	345	333	1929	3	3	7.8	1632
355L-6	250	340	990	95.0	95.0	96.5	0.88	454	432	416	2412	3.1	3	7.7	1734
