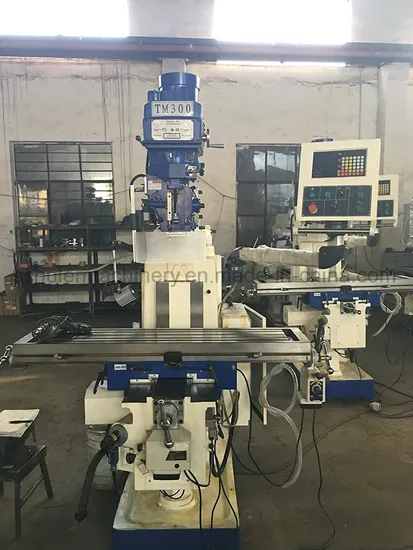

5h Rocker Arm Controller Stepless Speed Change Power Head Universal Turret Milling Machine

Product Description

5H Rocker Arm Controller Stepless Speed Change Power Head Universal Turret Milling Machine
Universal Turret Milling Machine Performance:
<1>The machine adopts Micahna standard high-precision cast iron, the guide rail and the work surface are quenched by super-audio to HRC48-52 degrees, and the X/Y/Z-axis is attached with wear-resistant piece wear-resistant type; the machine tool adopts the worktable Move back and forth; the head moves up and down, the rigidity is good, the bearing capacity is good, and the precision is kept for a long time; because the whole machine head moves up and down and is equipped with stepless speed regulation design, it has powerful drilling, boring and milling functions.
<2> This machine adopts Taiwan's 16-segment high-speed turret type head from 66-4540 rpm, which can cope with the requirements of different material processing speeds. The machine head is matched with the Japanese (Wuyue) P5-class mating angular spindle bearing. The accuracy of the spindle shaft end can reach 0.005MM, and there is no noise and no vibration during high-speed operation.
Universal Turret Milling Machine Standard Accessories:
1.milling chuck sets
2.Reducing sleeve 7:24ISO50/MS4 and 40/MS4 3.Hexagonal Spaner 5 and 10
4.Stay wrench S21-24 and S27-30
5.Horizontal milling cutter arbor 7:24 ISO50 27 6.Horizontal milling cutter arbor 40
7.Draw bar M24 (on the machine)and M16
8.work lamp
9. cooling systerm 10.universal milling head XC63T4A
Optional Accessories:
1.X/Y power feed
2.Z axis lifting motor
3.three axis sino dro
4.QH200 flat vice
Universal Turret Milling Machine Technical Parameters:

Specifications		Units	5H
Table size		mm	1370x305(54" x 12")
T- slot number and size		mm	3/16/65
Working table stroke	X	mm	850
	Y		400
	Z		450
Ram stroke		mm	500
spindle nose to table top		mm	0-460
Taper of spindle hole			NT40
Spindle speed(50HZ)		r/min	66-4540
Spindle travel		mm	127
Spindle sleeve diameter		mm	105
Spindle feed rate		mm/r	:0.04(0.0015")/0.08(0.003")/0.15(0.006")
Spindle motor power		HP	5
Head rotation (left - right )		°	90°
Head rotation (front - rear)		°	45°
Overall size(LxWxH)		mm	1750x1650x2150
Gross Weight		Kg	1700

Brand Image:
As a professional manufacturer of milling machines, we want our customers to know of our commitment to providing the latest products to all customers.
Universal Turret Milling Machine Details:
Universal Turret Milling Machine Package Delivery:
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
