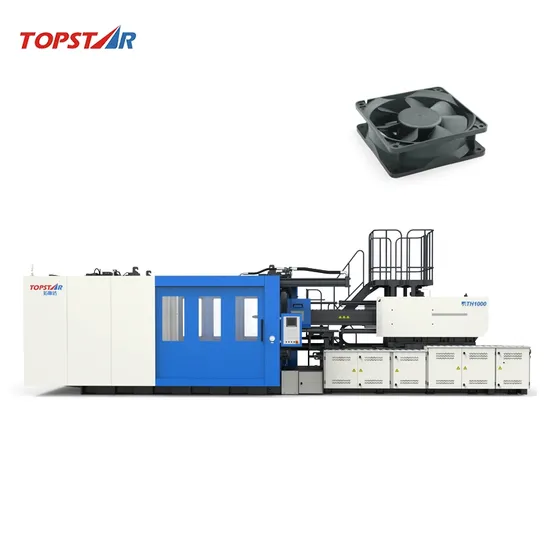

Factory Price Th1000 Injection Molding Machinery for Large Wheelie Bin

Product Description

Topstar 130-1400Ton Direct Clamp Injection Molding Machine

Product Description:
The TH series injection molding machine has the ability to mold dense plastic products with complex appearance, precise dimensions or metal inserts in one go. It's widely used in electronics, packaging, 3C, auto parts and FMCG industries, etc.
Product Features:
1. Stable and sturdy, simple and practical.
2. High reliability and easy to operate.
3. Easy to process and install.
4. Easy to repair and maintain.
Accessory Introduction:
1. Advanced oil circuit design with European professional controller makes themachine action stable, combined with high product yield, fast response time, precise control, easy operation, and meet a variety of process requirements.
2. Diagonal double injection mold shift oil cylinder and linear guide, more accurate and stable injection.
3. Optimized and upgraded platen, with reliable structure and small mdeformation, can effectively protect the equipment and improve the service life of mold.
4. Focus on the actual customer experience, including industrial design, human-machine interaction and other details optimization.
5. High performance chrome plated screw, durable and efficient, wide range of application.
High color mixing/high mixing screw: to meet the high color mixing products, easy to change color.
Custom screw: specially customized plasticizing components for different products, such as PC, PA, etc
6. Professional matching of plasticizing components to meet the plasticizing requirements and color mixing performance of different materials.
Parameter Table:

INJECTION UNIT	UNITS	TH1000
Screw Diamete	mm	100	110	120
Screw L/D Ratio	L/D	24.2	22.0	20.2
Screw Stroke	mm	530	530	530
Shot Volume	cm3	4163	5037	5994
Shot Weight(ps)	g	3788	4583	5455
	oz	133.3	161.3	192.0
Injection Pressure	kgf/cm3	2197	1816	1526
Injection Rate	cm3/s	776	938	1117
Injection Rate	mm/s	99	99	99
Screw Speed	rpm	141
Nozzle Contact Force	t	12.8
Nozzle Stroke	mm	750
CLAMPING UNIT	UNITS	TH1000
Clamping Force	t	1000
Opening Stroke(Min)	mm	1100
Opening Stroke(Max)	mm	1890
Platen size(H×V)	mm	1720*1720
Space Between Tie Bars(H×V)	mm	1160*1160
Mlould Thickness (Min)	mm	500
Mlould Thickness (Max)	mm	1290
Max. Daylight	mm	2390
Ejector Force	t	26.0
Ejector Stroke	mm	320
Locating Ring	mm	200
Number of Temp Control Zones	-	21
POWER/HEATING UNIT	UNITS	TH1000
System Pressure	kgf/cm3	175
Pump Power	kw	104
Heating Power	kw	70
Number of Temp Control Zones	-	8+1
OTHERS	UNITS	TH1000
Machine Dimensions(LxWxH)	m	10.15*2.73*3.29
Oil Tank Capacity	L	1210
Machine Weight	t	38
Platen Specification

Note: Due to the continuous development of technology, improvement and update of design, the above specifications are subject to change without prior notice.
