6000rpm Machine Center CNC Milling Tools Machinery Sjh2013 Double Column in China

Product Description

Company Profile
Suji Intelligent Equipment Jiangsu Co., Ltd. was established in 2018, which is located in Jiangsu Shuyang National Economic Development Zone. Mainly engaged in CNC machine tools, vertical machining center, development, production, research and development, sales and service as one of the comprehensive science and technology enterprises. The company has a professional technical team dedicated to the field of CNC machine tool manufacturing and service, set many years of professional CNC machine tool research and development and manufacturing experience, with exquisite technical force, advanced processing and testing equipment and scientific management, to provide you with more cost-effective machine tools, so that your investment is more valuable.
Major products: vertical machining center series, horizontal machining center series, gantry machining center series and flat rail CNC lathe, inclined rail CNC lathe machine tools with high speed, high rigidity, high performance, high efficiency, is the communication, consumer electronics, medical industry, LED industry, automobile, aerospace industry and other industries the first choice of machine tool equipment.
Our company has a strong research and development ability and many years of manufacturing experience, and has passed the ISO9001 quality system certification.
Quality and service is the foundation of the enterprise, "create value for customers, create opportunities for employees, create benefits for the society" is we have been adhering to the business philosophy, "professional service, sincere to true" is our service concept, to improve the customer service system to provide customers with high quality quality and pre-sale, sale, after-sales service and professional technical support is our mission. To meet the needs of our customers and markets, we hope to develop together with all our partners, and create a better tomorrow!
Product Description

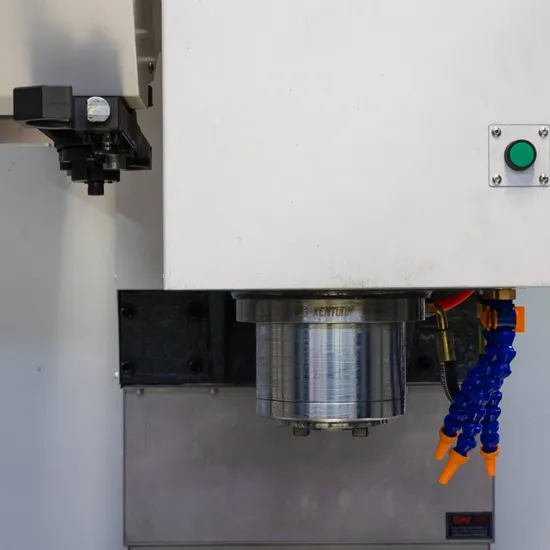

Detailed Photos

Product Parameters

Grantry/Model	Unit	SJH2013	SJH2516	SJH3022	SJH3027	SJH4022	SJH4027	SJH5027	SJH6027
Machining Range
X axis travel	mm	2000	2500	3000	3000	4000	4000	5000	6000
Y axis travel	mm	1400	2000	2200	2700	2200	2700	2700	2700
Z axis travel	mm	800	1000	1000	1000	1000	1000	1000	1000
Grantry Width	mm	1400	2000	2200	2700	2200	2700	2700	2700
Workbench size
Table Dimension	mm	2000x1000	2500x1600	3000x1800	3000x2300	4000x1800	4000x2300	5000x2300	6000x2300
Max. Load	kg	3000	5000	6000	15000	10000	18000	20000	18000
T-slot Dimension	mm	7-22x150	9-22x180	9-22x180	11-28x200	9-22x180	11-28x200	11-28x200	11-28x200
Spindle nose to table	mm	70-870	250-1250	250-1250	260-1260	250-1250	260x1260	260x1260	260x1260
Spindle
Taper		BT50	BT50	BT50	BT50	BT50	BT50	BT50	BT50
Max Speed	rpm	6000	6000	6000	6000	6000	6000	6000	6000
Driving Mode		belt	belt	belt	belt	belt	belt	belt	belt
Spindle Motor Fanuc S11/S3	Kw	15/18.5	15/18.5	15/18.5	15/18.5	22/66	22/66	22/66	22/66
3 Axis
3 Phase Motor Fanuc X.Y.Z.	Kw	3.0/3.0/3.0	3.0/3.0/3.0	9.0/6.0/6.0	9.0/6.0/6.0	9.0/6.0/6.0	9.0/6.0/6.0	9.0/6.0/6.0	9.0/6.0/6.0
Guide rail	mm	45/45/hard	55/55/hard	55/55/hard	3x55/55/hard	55/55/hard	3x55/55/hard	3x55/55/hard	3x55/55/hard
screww rod	mm	63x10/50x10/50x10	63x16/63x10/50x10	80x16/63x10/50x10	80x20/63x16/50x10	80x16/63x10/50x10	80x20/63x16/50x10	80x20/63x16/50x10	100x20/63x16/50x10
fast movement	m/min-1	8/15/12	8/15/12	8/15/12	8/15/12	8/10/10	8/10/10	8/10/10	8/10/10
Accuracy
Positioning Acurracy	mm	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300	±0.005/300
Repeated Positioning Acurracy	mm	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300	±0.003/300
Other
Weight	t	17	24	36	39	42	51	56	68
Air Demand	kaf/cm²	6	6	6	6	6	6	6	6
	mm
Power Demand	kva	45	45	45	45	50	50	55	60
Ourline Dimension	mm	6730*3000*4000	6900*3600*4500	7300*4600*5000	8800*5400*5000	10100*4600*5000	7300x4600x5000	1250x5400x5000	14750x5400x5000

Brands of Main Parts
