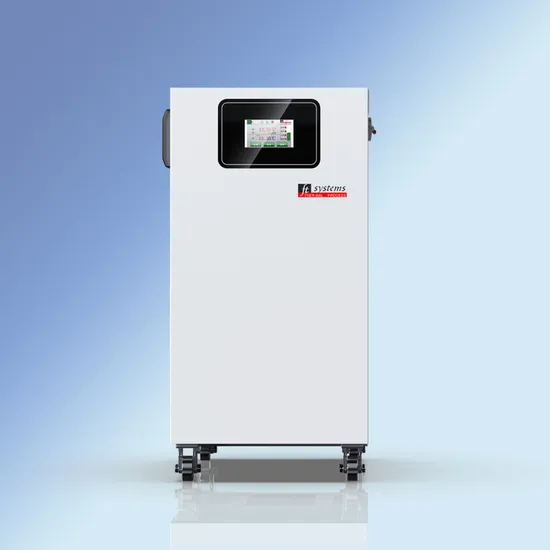

18kw Temperature Bath Refrigeration Cooling Circulating Chiller

Product Description

Process cooling circulators provide temperatures from − 20 to 80° C
15kW ~ 24kW High Power Programmable Process Cooling CyclistThe design focuses on energy saving and fulfilling users' more complex and precise process temperature control requirements. For the special temperature control needs of biopharmaceutical equipment,We integrate heating and remote data logging and user hierarchical login. It also meets the single temperature control and program temperature control require. The expansion valve is controlled by advanced stepper motor to minimize the energy consumption of the equipment. Provides various communication modules, perfect set It can also be operated separately to meet maintenance requirements. This platform device is also subject to special requirements of cGMP, which can customized service options are available. The powerful power of the equipment can meet the cooling and temperature control of more industrial-grade production and processing equipment. Can to provide the laboratory with the perfect tap water alternative and to solve the precision large analytical instruments caused by instability in cooling water temperature failure and test conditions are not met. At the same time, it reduces the pressure on air conditioning equipment in laboratory environment, and is for laboratory personnel and science home provides more comfortable experimental conditions.Application
By connecting directly or through a heat exchanger, etc . to the DUT of Device under test , it accelerates the simulation of extreme environments in different temperature ranges for material testing in the automotive industry and provides reliable temperature control for the development and application of new products and technologies. Reliable industrial-grade components to ensure the reliable operation of the equipment over long periods of dynamic temperature changes. For the semiconductor industry for a large number of low temperature probe stage and chucks and other equipment to provide reliable temperature control down to -60 degrees, to ensure that 100% of the chip performance test carried out. The same platform also aim to compiy with the F-Gas directive and upgrade with natural refrigerants for carbon peak and carbon neutral goals .
Product Parameters

Product type		Unit		Biochill 18W
Working temperature range		°C		−20 ...+80
Temperature stability		±K		0.5
Unit cooling mode				Water-cool
Cooling capacity max.		kW		19@20°C
Pump pressure max.		bar		3.2
Pump flow rate max.		l/min		60
Pump connection thread		mm		G 1
Bath capacity		l		15
Overall dimensions (WxDxH)		mm		720*910* 1280
Safety class				IP54
Noise level		dB(A)		64.7
Weight		kg		175
Power consumption max.		kW		5.4
Power supply		V:Hz		400V;3/N/PE;50Hz

Three-view of the device
Important functions
√ Magnetic pump to avoid mechanical seal leakage .
√ Low noise Suitable for a variety of heat-conducting media .
√ Small size and simple operation .
√ Electronically controlled expansion valve refrigeration lower energy consumption.
Company Profile
FTsystems established in Shanghai, April 2009. Focusing on design and manufacturing tailor made heating and cooling system for pharmaceutical industries, FTsystems set up the manufacturing site in Changzhou Jiangsu Province. Strongly focusing on the stringent cooling and heating of the chemical reactors to achieve the utter most productivities of the APIs for pharmaceutical products, FTsystems was the first company successfully mastered core control technology of the reactor cascade control and realized them in the Temperature control units (TCUs) in the real projects in China. With high stabilities ±0.1 ~2K , the tailormade systems can deliver 600kW heating and 300kW cooling ranging from -120 ~350ºC . With the essential know-how in heating and cooling, FTsystems is the emerging fast grow company who is replacing the high cost imported products from Europe.
FTsystems has developed unique software and algorism for our TCUs and put a lot effort on the refrigeration systems to enable fast cooling and at the same time achieve very good product temperature stabilities in the product. Together with the know-how sharing from the expert overseas, company invested in the new brand FTsystems™ to supply the market with standardized dynamic heating and cooling units Dynastat and the high - end chillers with smart refrigeration system which will be the best fit for high demand for fast cooling and high stabilities control over relatively wider range for example the demand for bioreactor and mixer and testing rigs in EV industries. With the standard units, FTsystems™ will cover from -90 to 320ºC with a cooling capacity up to 25kW.
Partial workshop drawings
FAQ
Q1.How long is the response time for after-sales service?
• Respond immediately within 24 hours.
Q2. Do you have warranty?
• Yes, we offer 1 year warranty for the spare part.
Q3.How long is your delivery time?
• Generally it is within 7 working days after receiving the payment if the goods are in stock. Or it is 15 working days if the goods are not in stock, depending on order quantity.
Q4. What is your products range?
• Provide temperatures from -20... 80°C with cooling.
Q5. What is the cooling capacity of the this equipment?
• Power up to 5 kW and powerful circulation pumps.
Q6. What is your terms of payment?
• Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
