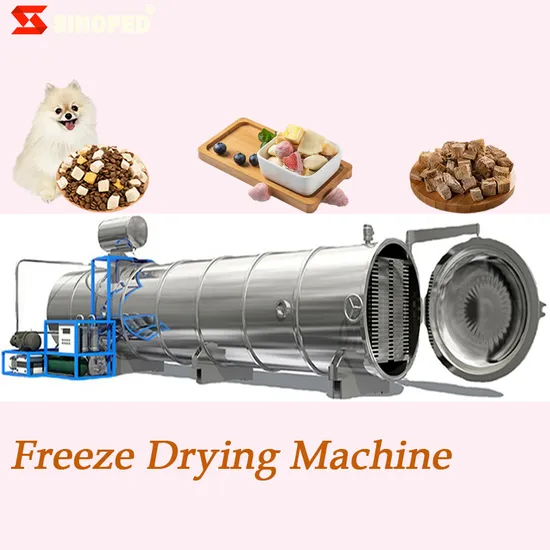

Fruit Vegetable Meat Vacuum Freeze Drying Machine Pet Food Freeze Dryer

Product Description

Fruit and Vegetable and meat Vacuum Freeze Drying Machine Pet Food Freeze Dryer
Product Description
The vacuum freeze dryer machine is an advanced method for the material for the material de-watering. EU technology from THE DENMARK. It has been very famous for its good results and special capturing water alternatively(as above photo on the left ). It freezes the moisture material in the low temperature and makes the water inside sublimate directly in the vacuum condition. Then it collects the sublimated vapor by means of the condensing way so as to dewater and dry the material. Being processed by the vacuum freeze drying, the physical, chemical and biological states of the material are basically unchanged. The volatile and nutritious contents in the material, which are easy to be denatured in a warm condition, will be lost a little. When the material is freezing dried, it will be formed into a porous one and its volume be basically the same to that before drying. Therefore, the processed material can be recovered quickly if being watered again, because of its large contacting area and it can be stored for a long period in a sealed vessel.
Our Advantages
1.The freeze-drying chamber body of the complete set of 1 square lyophilizer is made of stainless steel, and the cold trap is made of stainless steel.Made of stainless steel, the rails in the warehouse and the metal hoses connected to the water inlet header and the heating plate are made of stainless steel Made of steel.
2.The freeze dryer is equipped with a set of pre-extraction maintenance unit. The vacuum unit adopts the products of Wo Shima vacuum pump factory.Taste. The units are all in the form of a selection pump and a multi-stage Roots pump to prevent oil injection and oil emulsification. Elephant generation, low cost of sanitation and clean operation.
3. High degree of automation, refrigeration, heating, vacuum, pneumatic, all automatic control. Cream useManual control. The cooling water system is operated manually, with automatic display and alarm function. Freeze-dried warehouse For a heating plate as a spare

Model	Nominal drying area	Tray size	Capacity for raw material	Heating method	Heating plates height
DG-10	1 set	540*1000*30mm	100kg/batch	Electricity	90mm
DG-20	1 set 20.6 m2	610*610*35mm	200kg/batch	Steam	90mm
DG-50	1 set 50.6 m2	610*610*35mm	500kg/batch	Steam	90mm
DG-100	1 set 100.8 m2	610*610*35mm	1000kg/batch	Steam	90mm
DG-200	2 sets*206m3	610*610*35mm	2000kg/batch	Steam	90mm
