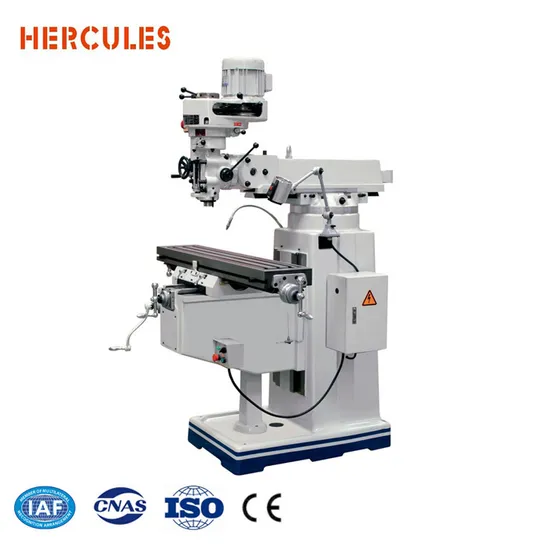

Vertical Turret Type Milling Machine Factory CNC Milling Machine
| US$5,500.00-8,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M5V
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Pallet
Specification
1950*1470*2300
Trademark
Hercules
Origin
China
HS Code
8459699000
Production Capacity
2000sets/Month
Product Description
M5V Vertical turret type milling machine with5HP Variable speed milling head
Features:
1) Taiwan origin turret variable speed milling head
2) work table mm. 1370 x 305 (54"*12")
3) Y & Z square box guide ways, X axis dovetails guide ways
4) Quill diameter 105mm
5) ISO 40 spindle nose
6) Z axis with A.C. motor
7) Air power draw bar
Specification:
| Model | M4VA | M4VB | M5SV |
| Precision High Accuracy Series | |||
| Table size(L*W)(mm) | 1270x254 | 1270x254 | 1370x305 |
| Max.load of table (kg) | 300 | 300 | 300 |
| X axis(mm) | 900 810 with power feed | 900 810 with power feed | 1000 910 with power feed |
| Y axis(mm) | 380 | 380 | 380 |
| Z axis (mm) | 360 | 360 | 360 |
| Work table T slot (No.-size*pitch) (mm) | 3-15.88x65 | 3-15.88x65 | 3-15.88x65 |
| Distance between spindle and table(mm) | 50-410 | 50-410 | 50-410 |
| Ram travel (mm) | 520 | 520 | 520 |
| Travel of spindle quill (mm) | 127 | 127 | 127 |
| Auto crossward feed(mm/rev) | 0.04/0.08/0.15 | 0.04/0.08/0.15 | 0.04/0.08/0.15 |
| Spindle speed(rpm)(60Hz) | 80-5440 rpm 16steps | 80-5440 rpm 16steps | 70-3600rpm 10steps |
| Spindle hole taper | R8 / NT30 (optional ) | R8 / NT30 (optional ) | NT40 |
| Main Motor | 3HP | 3HP | 5HP |
| Tilt angle for milling head | left and right±45º forward and backward±45º | left and right±90º forward and backward±45º | left and right±45º |
| Guiding tracks(X.Y.Z) | X,Z dovetail and Y square | X dovetail and Y&Z square | X dovetail and Y&Z square |
| Dimension(L*W*H)(mm) | 1750x1650x2150 | 1750x1650x2150 | 1850x1650x2300 |
| Milling head | Round step milling head | Round step milling head | Square head with side brake |
| Weight (kg) | 1250 | 1300 | 1375 |
| Hercules Machinery Equipment Ltd. | |||
Optional Accessories:
X or Y axis power feed
Spindle safety guard
Automatic oil lubrication
3 Axis SINO DRO
Air power draw bar
Pictures for reference only:
