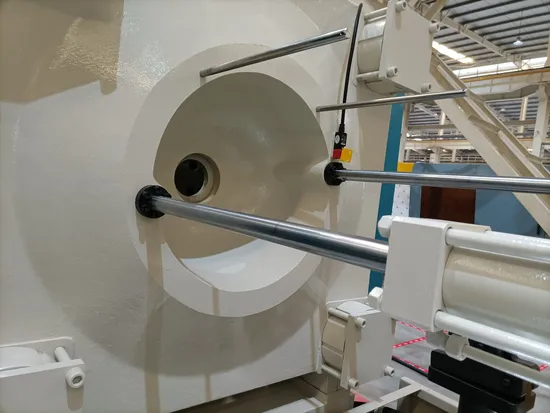

LK Potenza-II 200 Ton Plastic Injection Molding Machine

Product Description

Brief Introduction
LK group specializes in the design manufacture and sales of die casting machines, high precision injection molding machines, CNC machine centers, and industrial integrated control systems. Our market share of die casting machines is over 60%, the injection molding machine ranks among the top 3 in China.We have 12 production bases worldwide, 10 in domestic China, 1 in Taiwan, and 1 acquired company in Italy. Our injection molding machine centers are Zhongshan in Guangdong and Ningbo in Zhejiang.There are over 60 sales and service centers in the world, and our high-quality after-sales service and 24-hour prompt response system provide customs all-around fully coverage customer service.
Key features
1 . German gear pump with permanent magnet servo motor
2 . Professional controller system
3 . Study toggle clamp system with advanced FEA engineering design
4 . Excellent kinetic motion characteristic
Use of application
Power Tool, Personal Care, Toys, Electrical Appliances, Body Parts, Steering Wheels, Small Packaging, Daily product
Technical Parameter List

		ITEM	UNIT	PT200
Injection Unit	Shot Weight		g	318	393	475
	Screw Diameter		mm	45	50	55
	Injection Volume		cm3	350	432	522
	Injection Pressure		MPa	230	186	154
	Screw L/D Ratio		L/D	24	22	20
	Injection Rate		cm3/s	162	200	243
	Plasticizing Capacity		Kg/hr	72	93	108
	Screw Speed		r/min	175
	Hopper Capacity		L	60
Clamping Part	Locking Force		kN	2000
	Die Height (Min.-Max.)		mm	200-530
	Opening Stroke		mm	460
	Space Between Tie Bars		mm	510×510
	Ejector Stroke		mm	140
	Ejector Force		kN	67
Other	Motor Capacity		kW	22
	Max Working Pressure		MPa	17.5
	Oil Tank Capacity		L	240
	Heating Capacity		kW	14.8
	Machine Dimensions (L×W×H)		mm	5550×1310×1940
